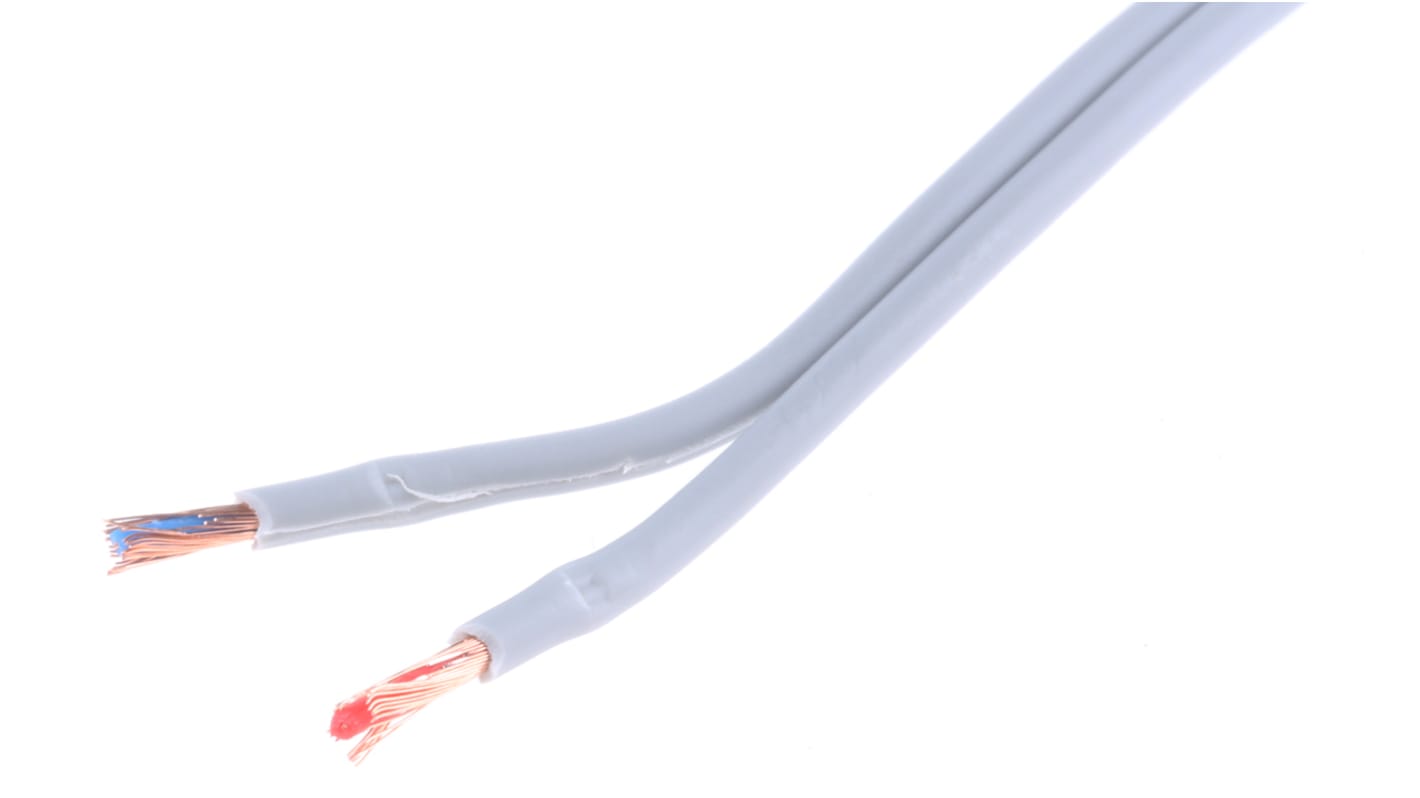

RS PRO 2 Core, 0.08 mm² CSA Screened, 4mm od, 100m, Grey
- RS Stock No.:
- 749-2582
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£0.483
(exc. VAT)
£0.58
(inc. VAT)
- RS Stock No.:
- 749-2582
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Cores | 2 | |
| Cross Sectional Area | 0.08 mm² | |
| Screened/Unscreened | Screened | |
| Insulation Material | PE | |
| Outer Diameter | 4mm | |
| Length | 100m | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +60°C | |
| Sheath Colour | Grey | |
| American Wire Gauge | 28 AWG | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Number of Strands | 10 | |
| Size of Strands | 0.1 mm | |
| Capacitance Core To Screen | 126pF/m | |
| Screen Type | Twin Lapped Screen | |
| Core Strands | 10/0.1 mm | |
| Conductor Strand Type | Stranded | |
| Conductor Material | Copper | |
| Voltage Rating | 30 V | |
| Conductor Resistance | 237 Ω/km | |
| Cable Shape | Multicore | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Cores 2 | ||
Cross Sectional Area 0.08 mm² | ||
Screened/Unscreened Screened | ||
Insulation Material PE | ||
Outer Diameter 4mm | ||
Length 100m | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +60°C | ||
Sheath Colour Grey | ||
American Wire Gauge 28 AWG | ||
Sheath Material Polyvinyl Chloride PVC | ||
Number of Strands 10 | ||
Size of Strands 0.1 mm | ||
Capacitance Core To Screen 126pF/m | ||
Screen Type Twin Lapped Screen | ||
Core Strands 10/0.1 mm | ||
Conductor Strand Type Stranded | ||
Conductor Material Copper | ||
Voltage Rating 30 V | ||
Conductor Resistance 237 Ω/km | ||
Cable Shape Multicore | ||
- COO (Country of Origin):
- CN
Individual Twin Lapped Screen Figure-of-Eight PVC Cable
Two individually screened plain copper stranded 10//0.36 mm conductors laid side by side in a flat figure 8 grey PVC outer sheath.
Capacitance core to screen 80 pF/mWidth of cable could vary from 4 - 6mm
