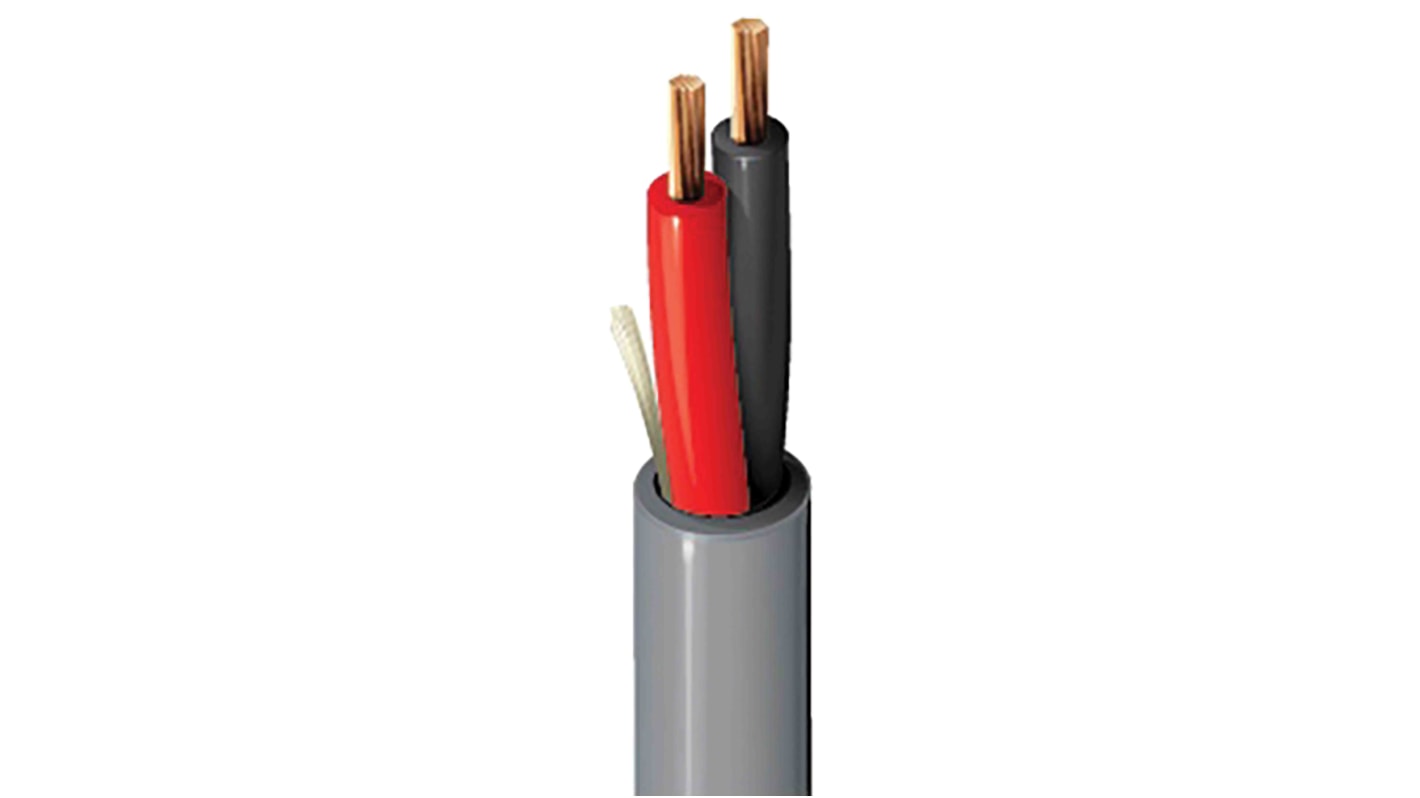

Belden70086 Series 2 Core Speaker Cable, 6 mm² CSA, 11.2mm od, 200m, Black
- RS Stock No.:
- 226-8913
- Mfr. Part No.:
- 70086.00200
- Brand:
- Belden
Subtotal (1 reel of 200 units)*
£1,273.96
(exc. VAT)
£1,528.75
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 16 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £1,273.96 | £6.37 |
*price indicative
- RS Stock No.:
- 226-8913
- Mfr. Part No.:
- 70086.00200
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Audio Cable Type | Speaker Cable | |
| Number of Cores | 2 | |
| Cross Sectional Area | 6 mm² | |
| Insulation Material | LSZH | |
| Outer Diameter | 11.2mm | |
| Length | 200m | |
| Minimum Operating Temperature | -5°C | |
| CPR Certification | Eca | |
| Maximum Operating Temperature | +60°C | |
| Fire Behaviour | Flame Retardant | |
| Sheath Colour | Black | |
| American Wire Gauge | 9 AWG | |
| Sheath Material | Low Smoke Zero Halogen (LSZH) | |
| Series | 70086 | |
| Number of Strands | 84 | |
| Cable Shape | Round | |
| Voltage Rating | 300 V | |
| Conductor Material | Copper | |
| Conductor Strand Type | Stranded | |
Select all | ||
|---|---|---|
Brand Belden | ||
Audio Cable Type Speaker Cable | ||
Number of Cores 2 | ||
Cross Sectional Area 6 mm² | ||
Insulation Material LSZH | ||
Outer Diameter 11.2mm | ||
Length 200m | ||
Minimum Operating Temperature -5°C | ||
CPR Certification Eca | ||
Maximum Operating Temperature +60°C | ||
Fire Behaviour Flame Retardant | ||
Sheath Colour Black | ||
American Wire Gauge 9 AWG | ||
Sheath Material Low Smoke Zero Halogen (LSZH) | ||
Series 70086 | ||
Number of Strands 84 | ||
Cable Shape Round | ||
Voltage Rating 300 V | ||
Conductor Material Copper | ||
Conductor Strand Type Stranded | ||
- COO (Country of Origin):
- NL
Belden Speaker Cable, 300V Voltage Rating, Zero Halogen Sheath - 70086.00200
For a pin-sharp connection between audio components, hook them up to this speaker cable from Belden. You can use it indoors and out, with a 200m reel length giving you plenty of room to manoeuvre it into place. It consists of two twisted cores, fully insulated for safety in challenging conditions. And with its fixed installation operating temperature range between -30°C and +70°C, the cable stands up to demanding applications.
Features & Benefits
• Halogen-free material prevents harmful smoke release during a fire
• 300V voltage rating means it works with high voltage equipment
• Compact cross-sectional area of 6mm² won't crowd your audio setup
• 300V voltage rating means it works with high voltage equipment
• Compact cross-sectional area of 6mm² won't crowd your audio setup
Applications
• Commercial displays
• Outdoor events
• Retail installations
• Outdoor events
• Retail installations
What's the core material of this speaker cable?
The cable's cores are made from oxygen-free bare copper. This material is known for its high conductivity, so you won't suffer any dropped signals during use.
