RS PRO 2 Core Microphone Cable, 0.5 mm² CSA Screened, 6.2mm od, 100m, Grey
- RS Stock No.:
- 207-5340
- Brand:
- RS PRO
Subtotal (1 reel of 100 metres)*
£114.60
(exc. VAT)
£137.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 11,300 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
100 + | £1.146 | £114.60 |
*price indicative
- RS Stock No.:
- 207-5340
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Audio Cable Type | Microphone Cable | |
Number of Cores | 2 | |
Cross Sectional Area | 0.5 mm² | |
Screened/Unscreened | Screened | |
Insulation Material | PVC | |
Outer Diameter | 6.2mm | |
Length | 100m | |
Minimum Operating Temperature | -20°C | |
CPR Certification | Fca | |
Maximum Operating Temperature | 60°C | |
Fire Behaviour | Self-extinguishing | |
Sheath Colour | Grey | |
Filler Material | Cotton | |
Conductor Material | Bare Copper | |
Conductor Resistance | 20°C Ω/km | |
Sheath Material | PVC | |
Voltage Rating | 30 V | |
Cable Shape | Multicore | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Audio Cable Type Microphone Cable | ||
Number of Cores 2 | ||
Cross Sectional Area 0.5 mm² | ||
Screened/Unscreened Screened | ||
Insulation Material PVC | ||
Outer Diameter 6.2mm | ||
Length 100m | ||
Minimum Operating Temperature -20°C | ||
CPR Certification Fca | ||
Maximum Operating Temperature 60°C | ||
Fire Behaviour Self-extinguishing | ||
Sheath Colour Grey | ||
Filler Material Cotton | ||
Conductor Material Bare Copper | ||
Conductor Resistance 20°C Ω/km | ||
Sheath Material PVC | ||
Voltage Rating 30 V | ||
Cable Shape Multicore | ||
- COO (Country of Origin):
- CN

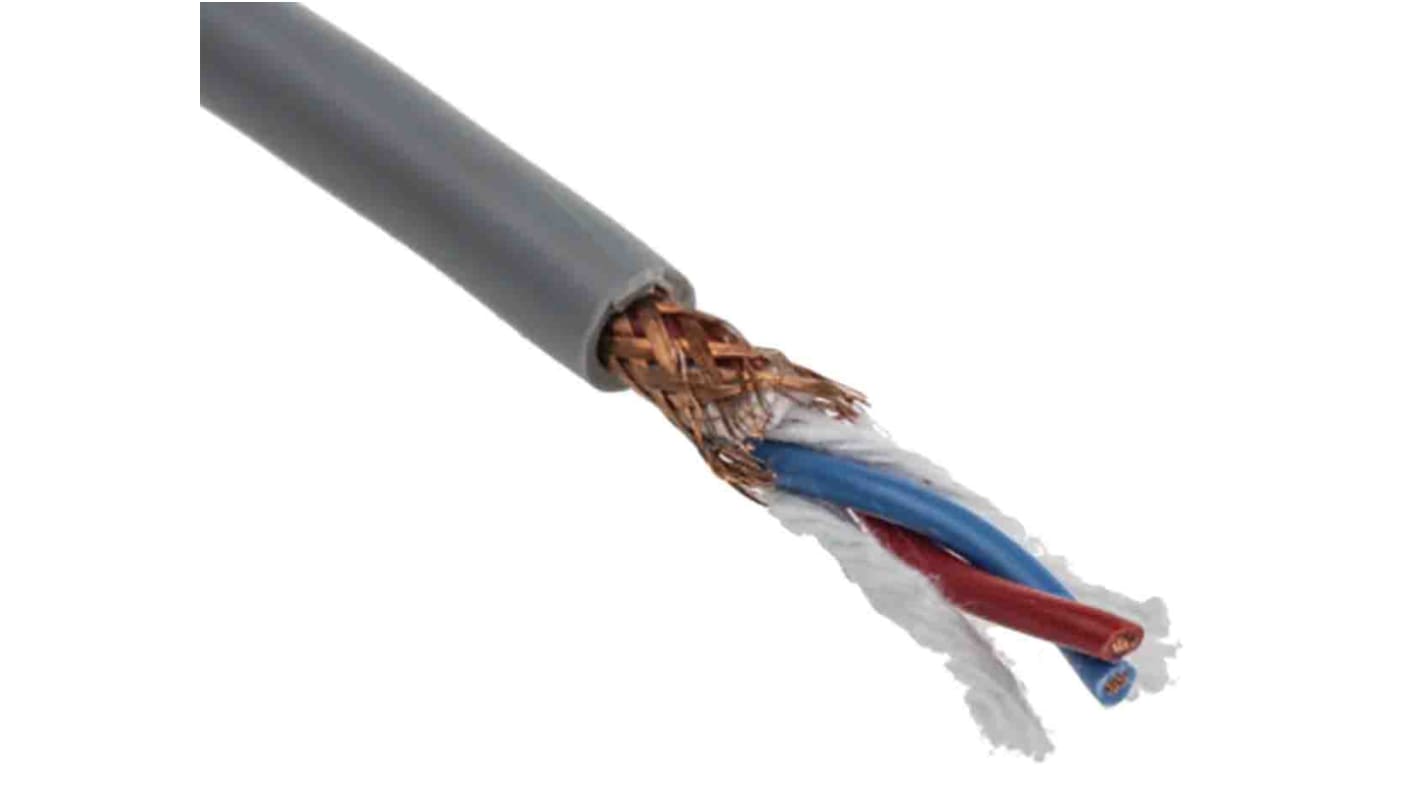

RS PRO 2 Core Screened Multicore Microphone Cable
RS PRO introduces this high quality 2 core twin round braided screened, flexible cable; designed for use with live and studio microphones but can also be used for equipment interconnect. Intended to fulfil the conflicting requirements of flexibility and screening properties, therefore makes it suitable for free-standing and hand-held microphone applications.
Engineered for a reliable and uninterrupted sound, the audio cable is screened for EMI protection, meaning it has extra protection from interference that could affect sound quality.
The PVC sheath offers an excellent standard of protection and flexibility, this ensures the cable is protected from damage by twisting and bending and impact. Which makes the cable is suitable for use in most professional audio applications.
Engineered for a reliable and uninterrupted sound, the audio cable is screened for EMI protection, meaning it has extra protection from interference that could affect sound quality.
The PVC sheath offers an excellent standard of protection and flexibility, this ensures the cable is protected from damage by twisting and bending and impact. Which makes the cable is suitable for use in most professional audio applications.
Features and Benefits
- Audio multicore cable with two cores round braided and screened for EMI protection
- PVC outer sheath which offers protection and flexibility
- PVC insulation
- Self-extinguishing
- 25m and 100m lengths available
- Grey colour for discreet use
- Voltage rating – 30 V
Applications
This multicore microphone cable can be soldered to standard jack and XLR connectors to make custom audio cables that can connect microphones and instruments to mixers or amplifiers.
Multicore microphone cable is suitable for:
Multicore microphone cable is suitable for:
- Live stages and theatres
- Professional studio setups
- Hobbyist and custom audio setups
