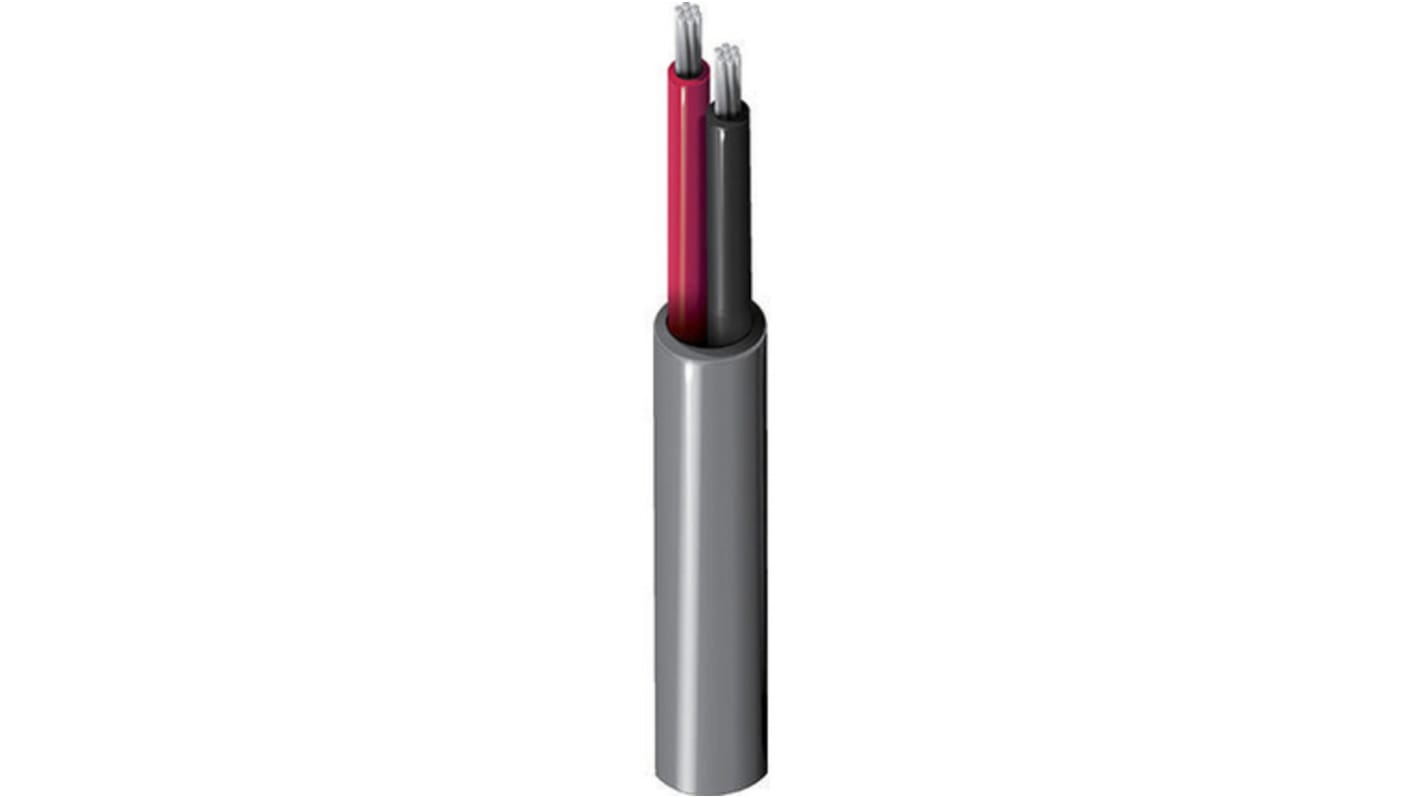

Belden8205 Series 2 Core Speaker Cable, 0.5 mm² CSA Unscreened, 4.57mm od, 305m, Chrome
- RS Stock No.:
- 176-2080
- Mfr. Part No.:
- 8205 0601000
- Brand:
- Belden
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 304 Metre(s)
£519.31
(exc. VAT)
£623.17
(inc. VAT)
- RS Stock No.:
- 176-2080
- Mfr. Part No.:
- 8205 0601000
- Brand:
- Belden
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Audio Cable Type | Speaker Cable | |
| Number of Cores | 2 | |
| Cross Sectional Area | 0.5 mm² | |
| Screened/Unscreened | Unscreened | |
| Insulation Material | PVC | |
| Outer Diameter | 4.57mm | |
| Length | 305m | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +60°C | |
| Fire Behaviour | Low Smoke Zero Halogen (LSZH) | |
| Sheath Colour | Chrome | |
| American Wire Gauge | 20 AWG | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Core Strands | 7/28 | |
| Conductor Strand Type | Stranded | |
| Series | 8205 | |
| Shielded/Unshielded | Unshielded | |
| Current Rating | 3.7 A | |
| Voltage Rating | 300 V ac | |
| Size of Strands | 0.32 mm | |
| Capacitance Core To Core | 24.5pF/ft | |
| Standards Met | Euroclass Eca | |
| Cable Shape | Twisted Pair | |
| Number of Strands | 7 | |
| Conductor Material | Tinned Copper | |
| Conductor Resistance | 33 Ω/km | |
| Select all | ||
|---|---|---|
Brand Belden | ||
Audio Cable Type Speaker Cable | ||
Number of Cores 2 | ||
Cross Sectional Area 0.5 mm² | ||
Screened/Unscreened Unscreened | ||
Insulation Material PVC | ||
Outer Diameter 4.57mm | ||
Length 305m | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +60°C | ||
Fire Behaviour Low Smoke Zero Halogen (LSZH) | ||
Sheath Colour Chrome | ||
American Wire Gauge 20 AWG | ||
Sheath Material Polyvinyl Chloride PVC | ||
Core Strands 7/28 | ||
Conductor Strand Type Stranded | ||
Series 8205 | ||
Shielded/Unshielded Unshielded | ||
Current Rating 3.7 A | ||
Voltage Rating 300 V ac | ||
Size of Strands 0.32 mm | ||
Capacitance Core To Core 24.5pF/ft | ||
Standards Met Euroclass Eca | ||
Cable Shape Twisted Pair | ||
Number of Strands 7 | ||
Conductor Material Tinned Copper | ||
Conductor Resistance 33 Ω/km | ||
- COO (Country of Origin):
- MX
