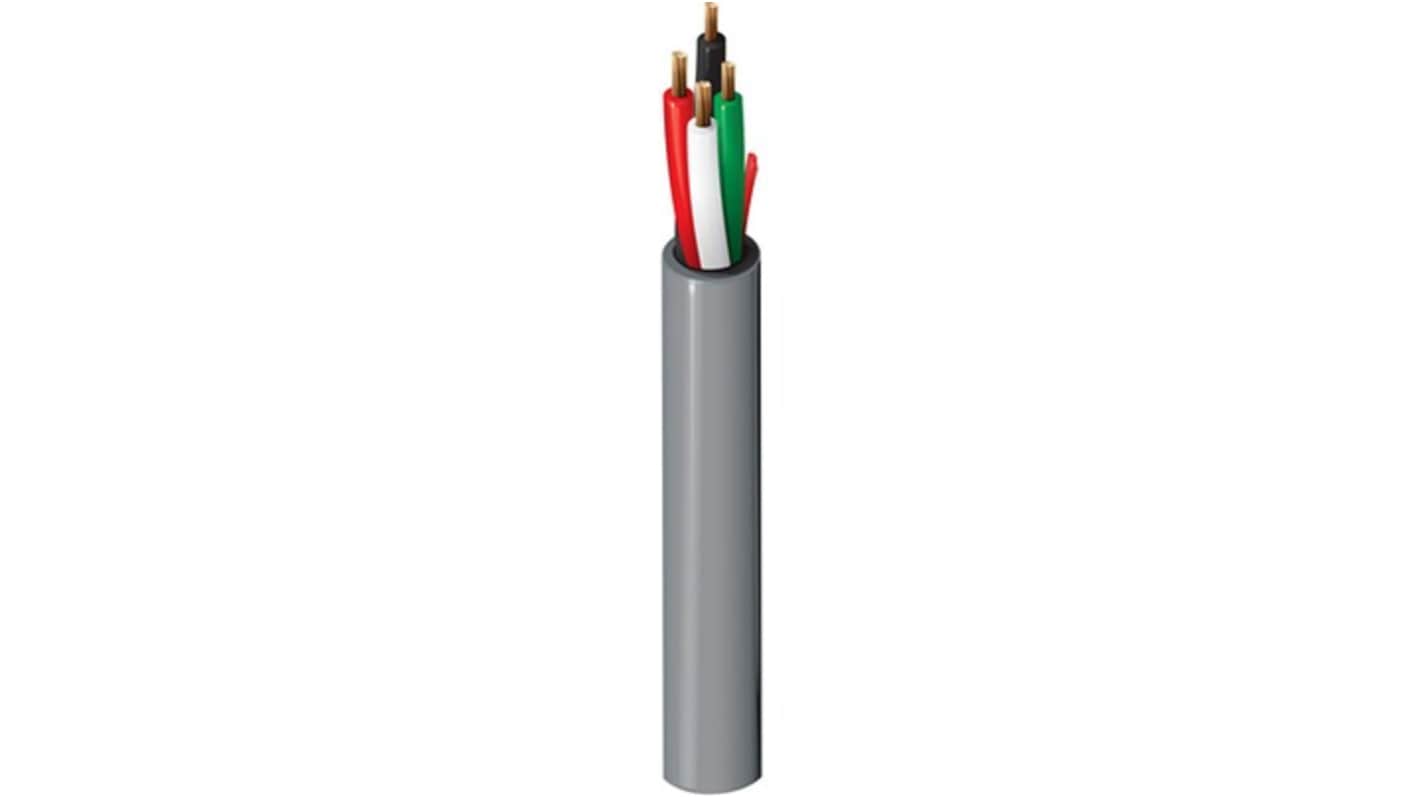

Belden 4302UE Series 4 Core, 18 AWG CSA Unscreened, 5.9 mm OD, 500 m, Grey

View all Audio Cable

Subtotal (1 reel of 500 metres)*

£1,662.23

(exc. VAT)

£1,994.68

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£1,662.23£3.324

*price indicative

RS Stock No.:
631-628
Mfr. Part No.:
4302UE.00500
Brand:
Belden
Find similar products by selecting one or more attributes.
Select all

Brand

Belden

Product Type

Multi-Core Microphone & Instrument Cable

Number of Cores

4

Cross Sectional Area

18 AWG

Screened/Unscreened

Unscreened

Outside Diameter

5.9 mm

Cable Length

500m

Fire Behaviour

Low Smoke Zero Halogen (LSZH)

Conductor Type

Stranded

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

70°C

Standards/Approvals

EN 50290‑2‑20, IEC 60754‑1/‑2, UKCA, IEC 61034‑2, RoHS 2, IEC 60332‑1‑2

Jacket Colour

Grey

Core Strands

7

Jacket Material

Polypropylene

Voltage

30 V

Series

4302UE

Conductor Material

Bare Copper

Number of Strands

7

COO (Country of Origin):
HU
The Belden Burglar Alarm Cable is built for security systems and commercial audio installations where reliable signal transmission is essential. Its four-conductor design with polypropylene insulation ensures flexibility and durability during setup. The low smoke zero halogen jacket enhances safety by minimizing toxic emissions in enclosed environments.

Supports intercom, PA, and power-limited control applications in commercial settings

Includes ripcord for easier jacket removal during installation

Complies with halogen-free and smoke density standards including IEC 60754 and IEC 61034
