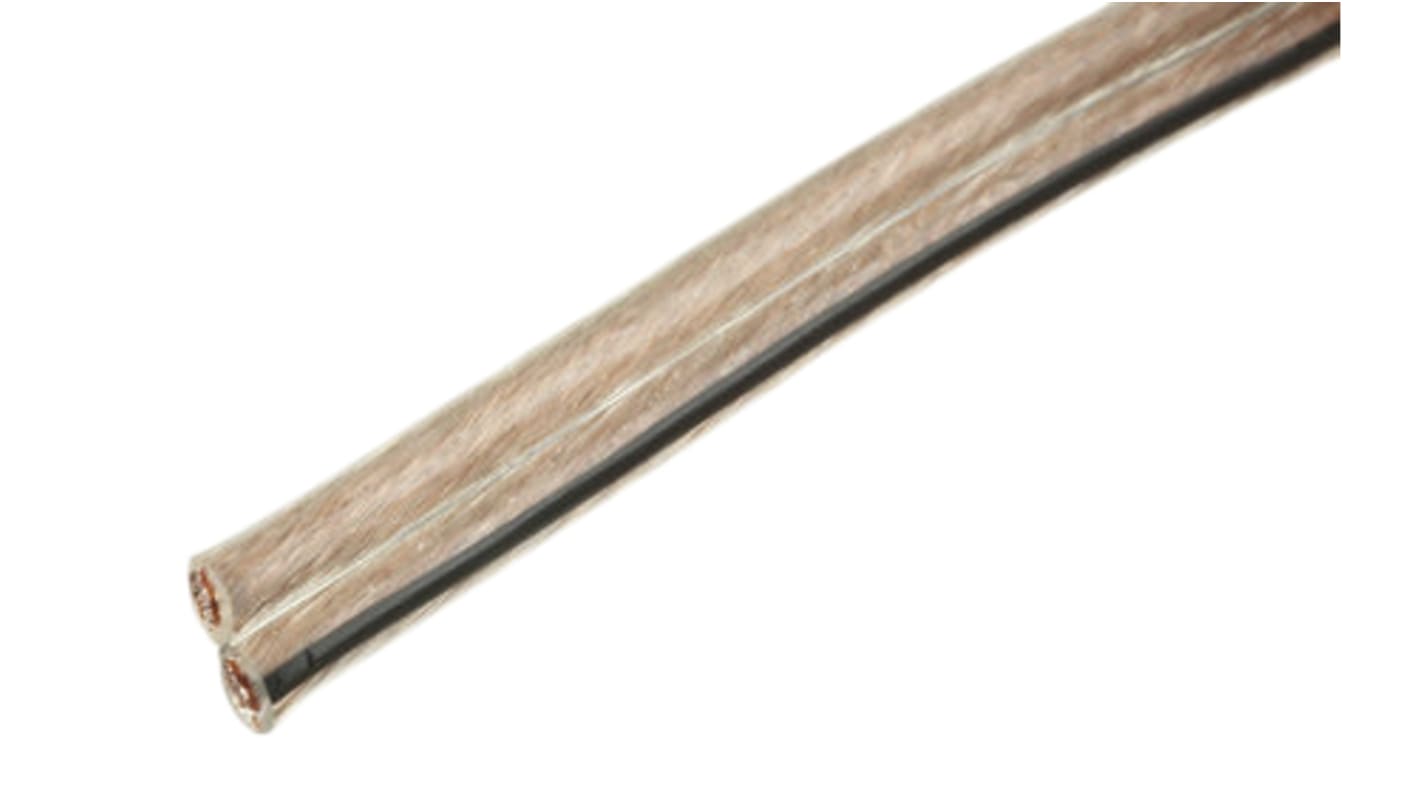

Belden 2 Core Speaker Cable, 0.78 mm² CSA, 305m, Transparent
- RS Stock No.:
- 413-245
- Mfr. Part No.:
- 9708 368U1000
- Brand:
- Belden
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 413-245
- Mfr. Part No.:
- 9708 368U1000
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Audio Cable Type | Speaker Cable | |
| Number of Cores | 2 | |
| Cross Sectional Area | 0.78 mm² | |
| Insulation Material | PVC | |
| Length | 305m | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +60°C | |
| Sheath Colour | Transparent | |
| American Wire Gauge | 18 AWG | |
| Standards Met | Euroclass Eca | |
| Cable Shape | Multicore | |
| Sheath Material | PVC | |
| Number of Strands | 16 | |
| Size of Strands | 0.25 mm | |
| Voltage Rating | 300 V | |
| Conductor Material | Tinned Copper | |
| Conductor Strand Type | Stranded | |
| Core Strands | 16/30 | |
| Conductor Resistance | 0.48 Ω/0.3048 km | |
| Current Rating | 4.2 A | |
Select all | ||
|---|---|---|
Brand Belden | ||
Audio Cable Type Speaker Cable | ||
Number of Cores 2 | ||
Cross Sectional Area 0.78 mm² | ||
Insulation Material PVC | ||
Length 305m | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +60°C | ||
Sheath Colour Transparent | ||
American Wire Gauge 18 AWG | ||
Standards Met Euroclass Eca | ||
Cable Shape Multicore | ||
Sheath Material PVC | ||
Number of Strands 16 | ||
Size of Strands 0.25 mm | ||
Voltage Rating 300 V | ||
Conductor Material Tinned Copper | ||
Conductor Strand Type Stranded | ||
Core Strands 16/30 | ||
Conductor Resistance 0.48 Ω/0.3048 km | ||
Current Rating 4.2 A | ||
- COO (Country of Origin):
- US
Multiconductor High Conductivity Copper Speaker Cable
High conductivity (oxygen free) stranded copper loudspeaker cable, designed for audio professionals who require exceptionally clear sound for PA installations.
Features and Benefits
· 2 core
· The parallel zip construction saves time and is easy to install
· One core is tinned and the other core is bare copper
· 2 core
· The parallel zip construction saves time and is easy to install
· One core is tinned and the other core is bare copper
