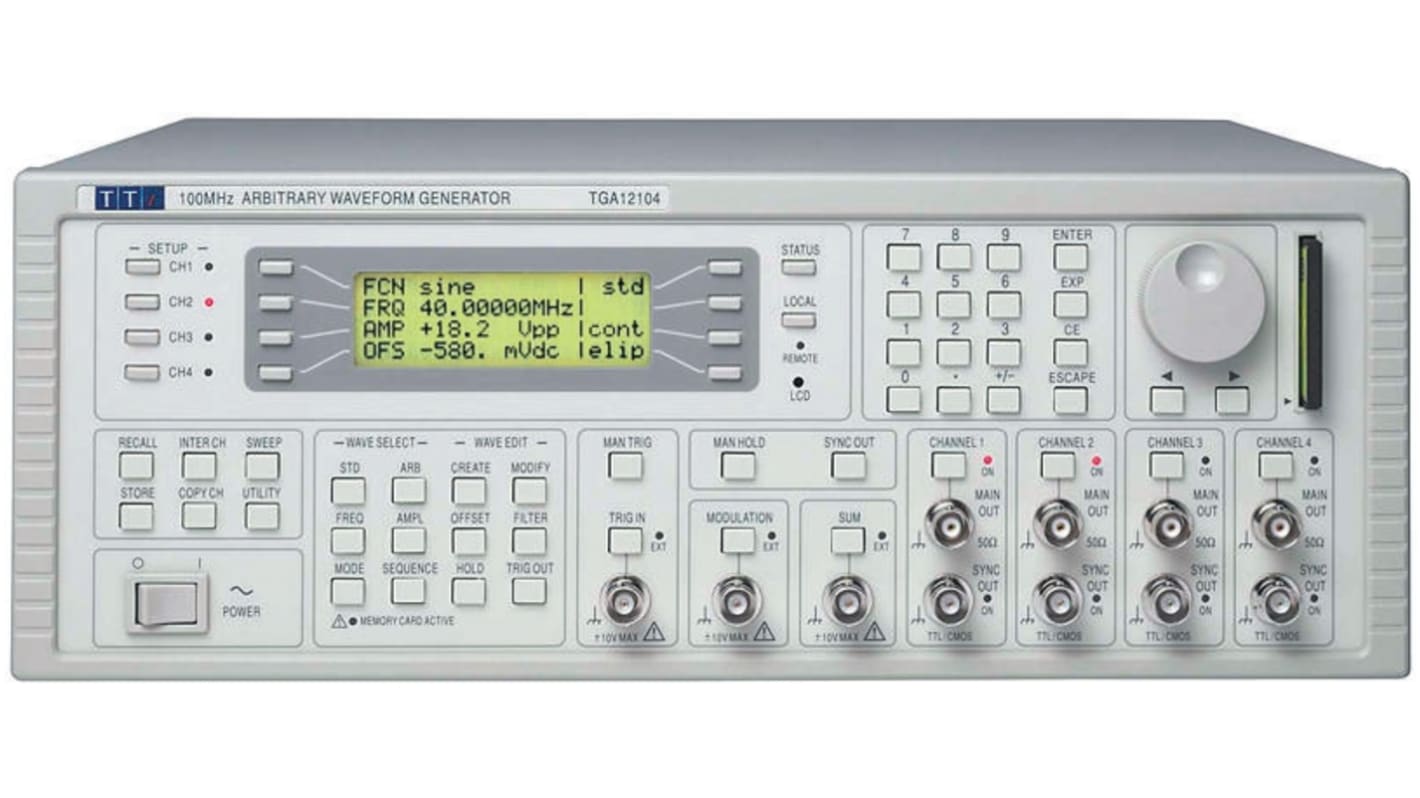

Aim-TTi TGA12104 Arbitrary Waveform Generator, 40MHz Max, 0.1 mHz Min - RS Calibrated
- RS Stock No.:
- 530-6094
- Mfr. Part No.:
- TGA12104
- Brand:
- Aim-TTi
- RS Stock No.:
- 530-6094
- Mfr. Part No.:
- TGA12104
- Brand:
- Aim-TTi
Select all | Attribute | Value |
|---|---|---|
| Brand | Aim-TTi | |
| Maximum Frequency | 40MHz | |
| Minimum Frequency | 0.1 mHz | |
| Maximum Frequency Triangle Ramps | 500kHz | |
| Minimum Frequency Triangle Ramps | 0.1MHz | |
| Maximum Sampling Frequency | 100Msps | |
| Maximum Pulse Train Repetition Rate | 40ns | |
| Minimum Pulse Train Repetition Rate | 100s | |
| Resolution | 3 Digit | |
| Pulse Resolution | 8Digit | |
| Calibrated | RSCAL | |
| Maximum Pulse Delay | +99.99s | |
| Minimum Pulse Delay | -99.99s | |
| Maximum Pulse Width | 100s | |
| Minimum Pulse Width | 40ns | |
| Arbitrary Waveforms | Yes | |
| Plug Type | Type C - European Plug, Type G - British 3-pin | |
| Width | 350mm | |
| Sweep | Continuous, Linear, Logarithmic, Triggered | |
| Maximum Storage | 500 | |
| Maximum Output Amplitude | 20V Pk-Pk | |
| Data Entry | Keyboard | |
| Inputs | Hold, Modulation In, Reference In, Sum In, Trig In | |
| Display Type | 20 Char x 4 Rows | |
| Maximum Operating Temperature | +40°C | |
| Waveform Memory per Channel | 1M points | |
| Rise - Fall Time | 8ns | |
| Weight | 6kg | |
| Model Number p | TGA12104 | |
| Height | 130mm | |
| Minimum Operating Temperature | +5°C | |
| Interface Type | GPIB, RS232, USB | |
| Dimensions | 335 x 350 x 130mm | |
| Length | 335mm | |
Select all | ||
|---|---|---|
Brand Aim-TTi | ||
Maximum Frequency 40MHz | ||
Minimum Frequency 0.1 mHz | ||
Maximum Frequency Triangle Ramps 500kHz | ||
Minimum Frequency Triangle Ramps 0.1MHz | ||
Maximum Sampling Frequency 100Msps | ||
Maximum Pulse Train Repetition Rate 40ns | ||
Minimum Pulse Train Repetition Rate 100s | ||
Resolution 3 Digit | ||
Pulse Resolution 8Digit | ||
Calibrated RSCAL | ||
Maximum Pulse Delay +99.99s | ||
Minimum Pulse Delay -99.99s | ||
Maximum Pulse Width 100s | ||
Minimum Pulse Width 40ns | ||
Arbitrary Waveforms Yes | ||
Plug Type Type C - European Plug, Type G - British 3-pin | ||
Width 350mm | ||
Sweep Continuous, Linear, Logarithmic, Triggered | ||
Maximum Storage 500 | ||
Maximum Output Amplitude 20V Pk-Pk | ||
Data Entry Keyboard | ||
Inputs Hold, Modulation In, Reference In, Sum In, Trig In | ||
Display Type 20 Char x 4 Rows | ||
Maximum Operating Temperature +40°C | ||
Waveform Memory per Channel 1M points | ||
Rise - Fall Time 8ns | ||
Weight 6kg | ||
Model Number p TGA12104 | ||
Height 130mm | ||
Minimum Operating Temperature +5°C | ||
Interface Type GPIB, RS232, USB | ||
Dimensions 335 x 350 x 130mm | ||
Length 335mm | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
TGA12101, TGA12102, TGA12104 - 100MS/s, 40MHz
Up to 100MS/s sampling frequency
1M points maximum horizontal resolution
True variable clock architecture eliminates jitter
Sinewaves to 40MHz, squarewaves to 50MHz
12-bit vertical resolution with high waveform purity
Pulse train generator for up to 10 pulses of variable width, delay & level
Up to 10 digits of frequency resolution
Inputs for external reference and Arb. clock
Non-volatile storage for up to 500 waveforms and 500 set-ups using CF memory cards
Waveform linking, looping and sequencing
Extensive range of modulation modes
Integral RS 232, USB and GPIB interfaces for remote control and waveform downloading
Built-in basic waveform creation and editing tools
Sophisticated waveform creation and editing via Windows-based software provided
