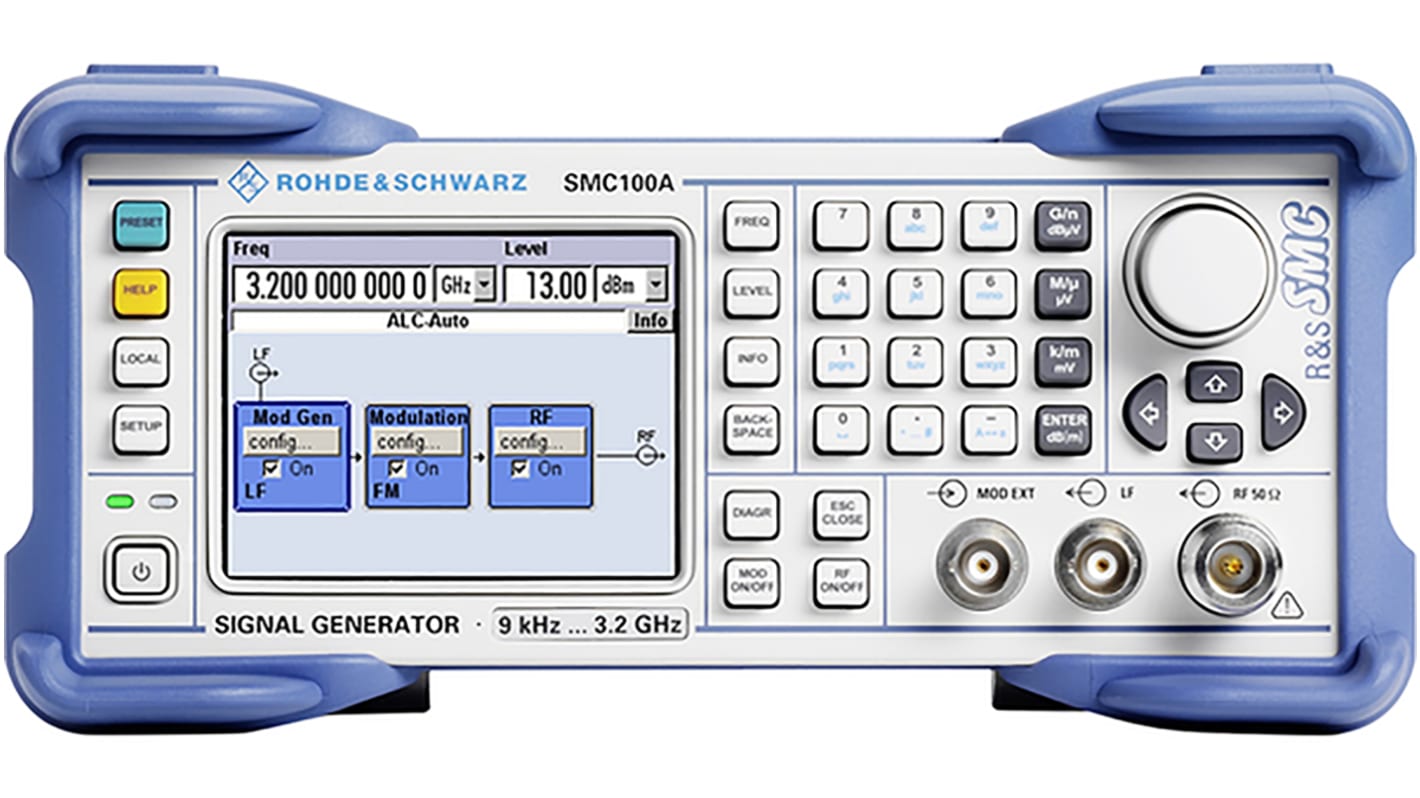

Rohde & Schwarz SMC100AP31 Waveform Generator, 3.2GHz Max, 9 kHz Min
- RS Stock No.:
- 144-8241
- Mfr. Part No.:
- SMC100AP31
- Brand:
- Rohde & Schwarz
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 144-8241
- Mfr. Part No.:
- SMC100AP31
- Brand:
- Rohde & Schwarz
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rohde & Schwarz | |
| Maximum Frequency | 3.2GHz | |
| Minimum Frequency | 9 kHz | |
| Resolution | <1 % | |
| Maximum Pulse Width | 1s | |
| Maximum Operating Temperature | +55°C | |
| Model Number p | SMC100AP31 | |
| Dimensions | 236 x 368 x 112mm | |
| Data Entry | Keyboard | |
| Inputs | Modulation In | |
| Connector Type | BNC Female | |
| Sweep | Triggered | |
| Rise - Fall Time | <500ns | |
| Display Type | LCD | |
| Weight | 3.9kg | |
| Length | 236mm | |
| Width | 368mm | |
| Height | 112mm | |
| Minimum Operating Temperature | 0°C | |
| Interface Type | LAN, USB | |
Select all | ||
|---|---|---|
Brand Rohde & Schwarz | ||
Maximum Frequency 3.2GHz | ||
Minimum Frequency 9 kHz | ||
Resolution <1 % | ||
Maximum Pulse Width 1s | ||
Maximum Operating Temperature +55°C | ||
Model Number p SMC100AP31 | ||
Dimensions 236 x 368 x 112mm | ||
Data Entry Keyboard | ||
Inputs Modulation In | ||
Connector Type BNC Female | ||
Sweep Triggered | ||
Rise - Fall Time <500ns | ||
Display Type LCD | ||
Weight 3.9kg | ||
Length 236mm | ||
Width 368mm | ||
Height 112mm | ||
Minimum Operating Temperature 0°C | ||
Interface Type LAN, USB | ||
- COO (Country of Origin):
- CZ
R&S® SMC100A Series Signal Generator
The analogue SMC100A series sets standards for attractively priced signal generators. It has the smallest size and the best price/performance ratio in its class. The flexible and versatile instrument is suited for use in service and maintenance labs. Due to its small dimensions and lightweight design, the R&S®SMC100A is also the perfect choice for field applications or training and education environments.
Application
• Service and maintenance
• Research and education
• Field use
• Secure areas
• Simple production applications
Features And Benefits
• High performance at an attractive price
• Flexible and universal all purpose signal generator
• Frequency range 9 kHz to 1.1 GHz or 3.2 GHz
• Typical maximum level of >+17 dBm
• Analogue modulation modes (AM/FM/φM/pulse modulation) integrated as standard
• Remote control compatibility with other signal generators
• Multiple language support (nine selectable GUI languages)
• Integrated overvoltage protection
• Wear-free electronic attenuator
• Space-saving operation due to small dimensions
• Smallest signal generator in the economy class
• Lightweight
• Simplified error diagnostics through built-in selftests
Included in this bundle:
• SMC100A Signal Generator
• SMC-B103 9kHz…3.2GHz option
• SMC-B1 reference oscillator option
