RS PRO Rectangular Anti Vibration Mount, Damper with 700 Compression Load
- RS Stock No.:
- 171-2648
- Brand:
- RS PRO
Subtotal (1 unit)*
£41.93
(exc. VAT)
£50.32
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 60 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
- Plus 16 unit(s) shipping from 30 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £41.93 |
*price indicative
- RS Stock No.:
- 171-2648
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Anti Vibration Mount Type | Damper | |
Diameter | 168mm | |
Foot Height | 38mm | |
Overall Height | 43mm | |
Static Load Capacity | 700kg | |
Material | Natural Rubber | |
Mounting Type | 4-Hole Flange | |
Shore Hardness | 60 Shore A | |
Compression Load | 700 | |
Foot Shape | Rectangular | |
Metalwork | Zinc Plated Steel | |
Compression Deflection | 3mm | |
Maximum Operating Temperature | +100°C | |
Series | SM | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Anti Vibration Mount Type Damper | ||
Diameter 168mm | ||
Foot Height 38mm | ||
Overall Height 43mm | ||
Static Load Capacity 700kg | ||
Material Natural Rubber | ||
Mounting Type 4-Hole Flange | ||
Shore Hardness 60 Shore A | ||
Compression Load 700 | ||
Foot Shape Rectangular | ||
Metalwork Zinc Plated Steel | ||
Compression Deflection 3mm | ||
Maximum Operating Temperature +100°C | ||
Series SM | ||
- COO (Country of Origin):
- IN

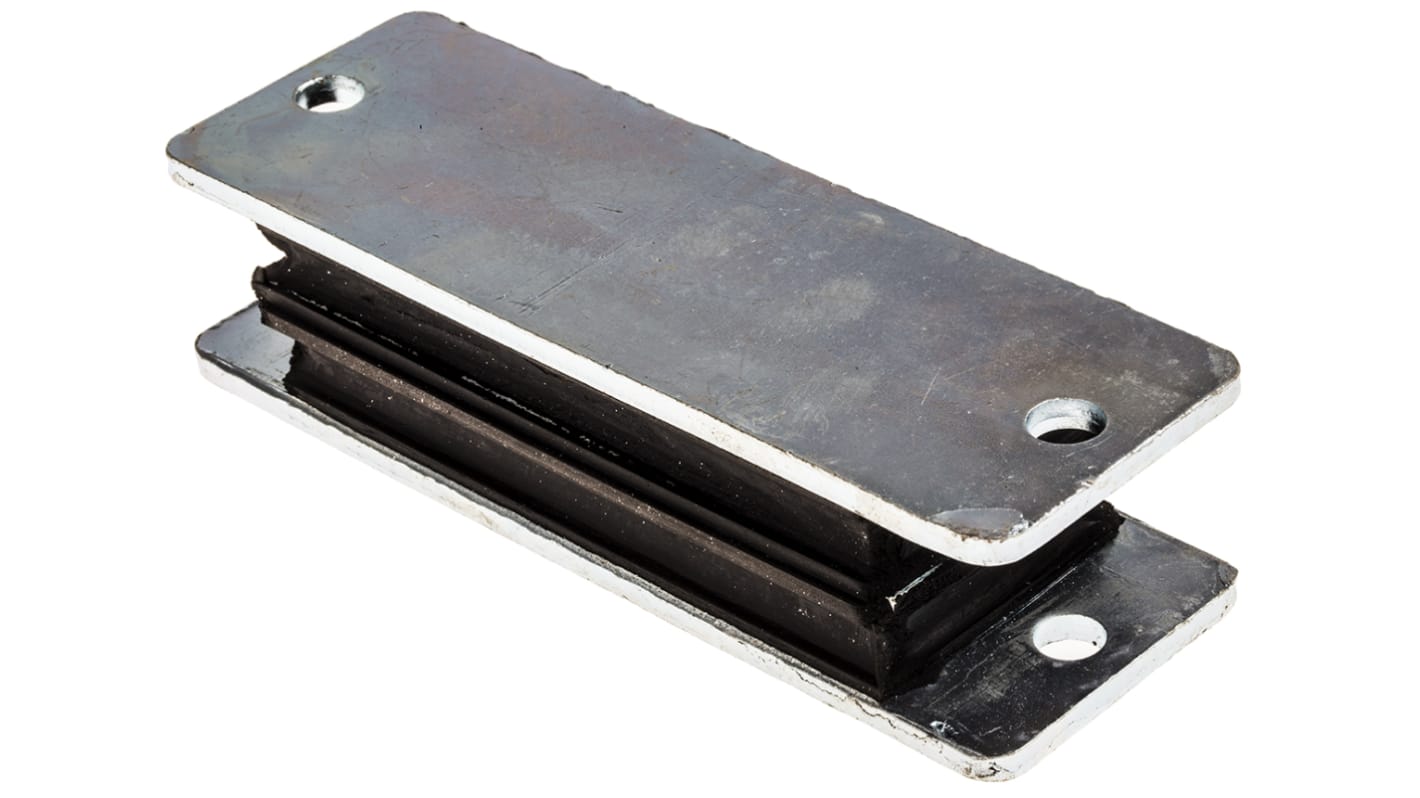

RS PRO Anti-Vibration Sandwich Mount (700kg)
An anti-vibration Sandwich mount (SM) suitable for use with compression or shear load applications, or both by fitting 2 sandwich mounts in a V arrangement.
Constructed from mild Steel and natural Rubber the SM mount is easy to install with minimum tools and offers excellent vibration dampening and absorption.
Designed with a bonded interleaf increasing load carrying capacity the isolation mount is tough, reliable and suitable for use in industrial and heavy plant applications including use with heavy machinery and generators.
Features and Benefits
Anti-vibrational mount
700kg load capacity
60 Shore A
Sandwich mount design
Mild Steel and natural Rubber construction
Dimensions of 168 x 57 x 41.5mm
700kg load capacity
60 Shore A
Sandwich mount design
Mild Steel and natural Rubber construction
Dimensions of 168 x 57 x 41.5mm
Applications
Lifts
Engine Mounts
Vibratory Screens
Conveyors
Hoppers
Free-standing refrigeration isolators
Heavy machinery isolators
Coach vehicle body isolators
Engine Mounts
Vibratory Screens
Conveyors
Hoppers
Free-standing refrigeration isolators
Heavy machinery isolators
Coach vehicle body isolators
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
