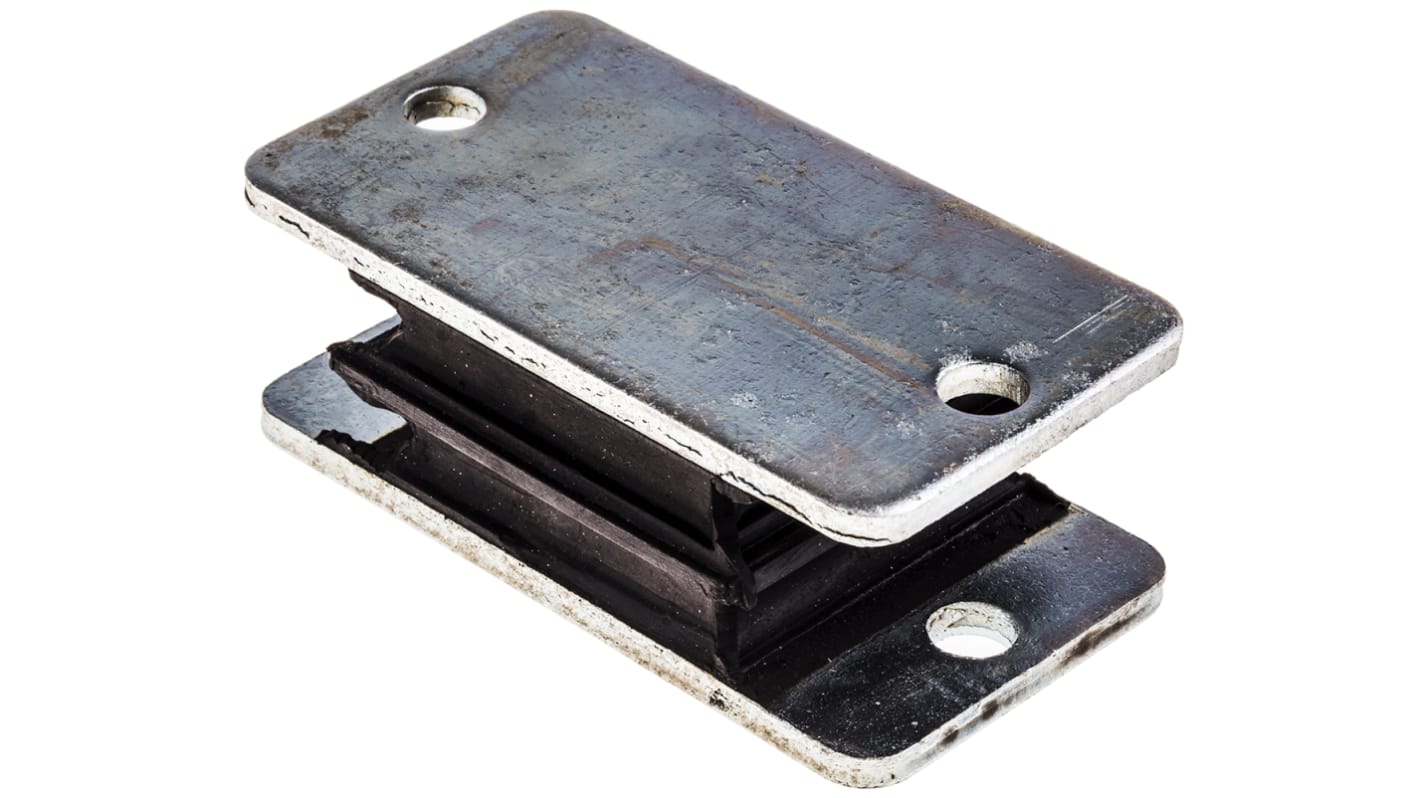

RS PRO Rectangular Anti Vibration Mount with 280kg Compression Load
- RS Stock No.:
- 171-2646
- Brand:
- RS PRO
Subtotal (1 unit)*
£32.25
(exc. VAT)
£38.70
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 83 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £32.25 |
*price indicative
- RS Stock No.:
- 171-2646
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Diameter | 108mm | |
Foot Height | 38mm | |
Overall Height | 43mm | |
Static Load Capacity | 280kg | |
Material | Natural Rubber | |
Shore Hardness | 60 Shore A | |
Metalwork | Zinc Plated Steel | |
Compression Load | 280kg | |
Foot Shape | Rectangular | |
Compression Deflection | 3mm | |
Maximum Operating Temperature | +100°C | |
Series | SM | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Diameter 108mm | ||
Foot Height 38mm | ||
Overall Height 43mm | ||
Static Load Capacity 280kg | ||
Material Natural Rubber | ||
Shore Hardness 60 Shore A | ||
Metalwork Zinc Plated Steel | ||
Compression Load 280kg | ||
Foot Shape Rectangular | ||
Compression Deflection 3mm | ||
Maximum Operating Temperature +100°C | ||
Series SM | ||
- COO (Country of Origin):
- IN
The SM Mount is suitable for both compression and shear load applications. It is available in either 50, 60 or 70 shore hardness.
Applications:
Lifts
Engine Mounts
Vibratory Screens
Conveyors
Hoppers
Free-standing refrigeration isolators
Heavy machinery isolators e.g. lathes, drilling machines etc
Coach vehicle body isolators
Lifts
Engine Mounts
Vibratory Screens
Conveyors
Hoppers
Free-standing refrigeration isolators
Heavy machinery isolators e.g. lathes, drilling machines etc
Coach vehicle body isolators
