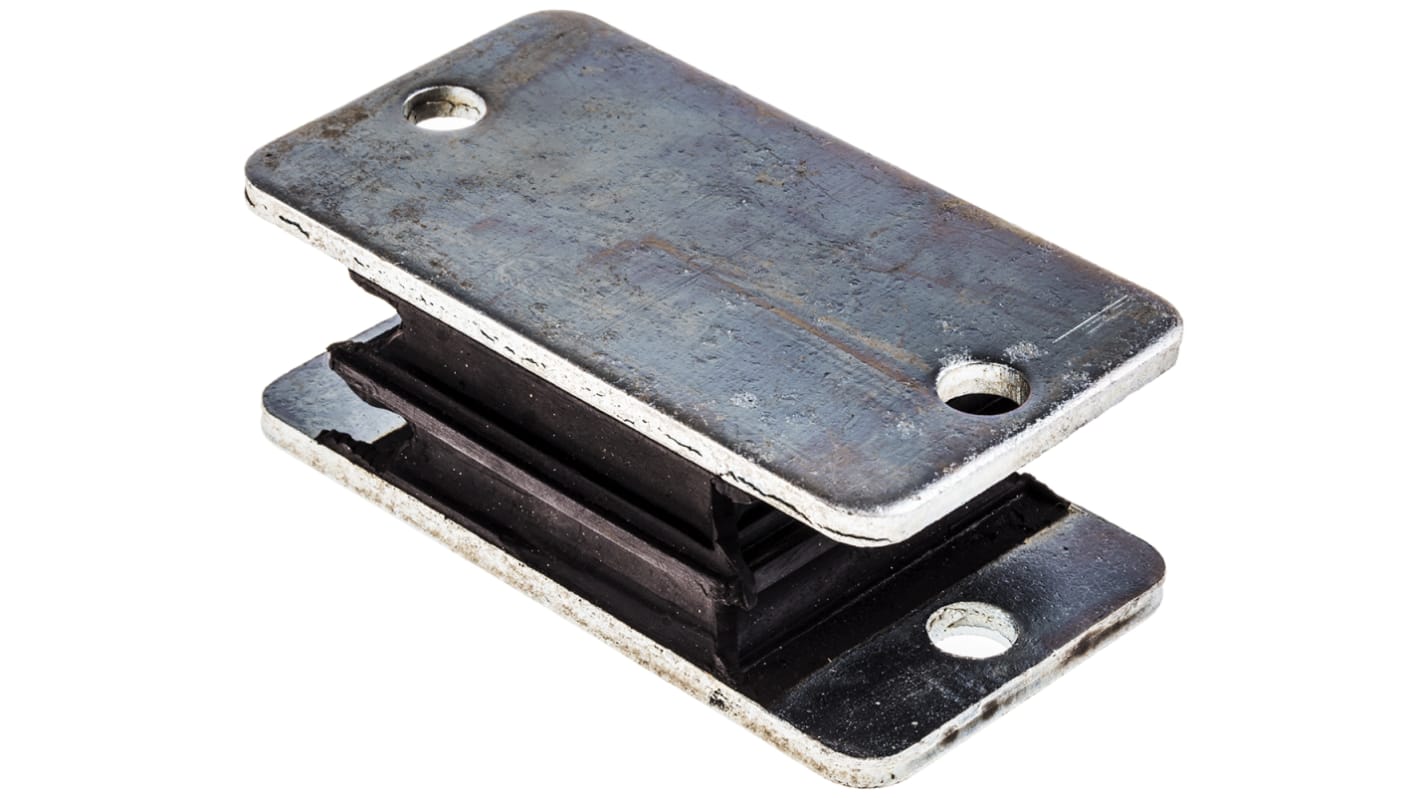

RS PRO Rectangular Anti Vibration Mount with 180kg Compression Load

View all Anti Vibration Mounts

Subtotal (1 unit)*

£32.25

(exc. VAT)

£38.70

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 128 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£32.25

*price indicative

RS Stock No.:
171-2645
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Diameter

108mm

Foot Height

38mm

Overall Height

43mm

Static Load Capacity

180kg

Material

Natural Rubber

Shore Hardness

50 Shore A

Compression Load

180kg

Metalwork

Zinc Plated Steel

Foot Shape

Rectangular

Series

SM

Maximum Operating Temperature

+100°C

Compression Deflection

3mm

COO (Country of Origin):
IN
The SM Mount is suitable for both compression and shear load applications. It is available in either 50, 60 or 70 shore hardness.

Applications:
Lifts
Engine Mounts
Vibratory Screens
Conveyors
Hoppers
Free-standing refrigeration isolators
Heavy machinery isolators e.g. lathes, drilling machines etc
Coach vehicle body isolators
