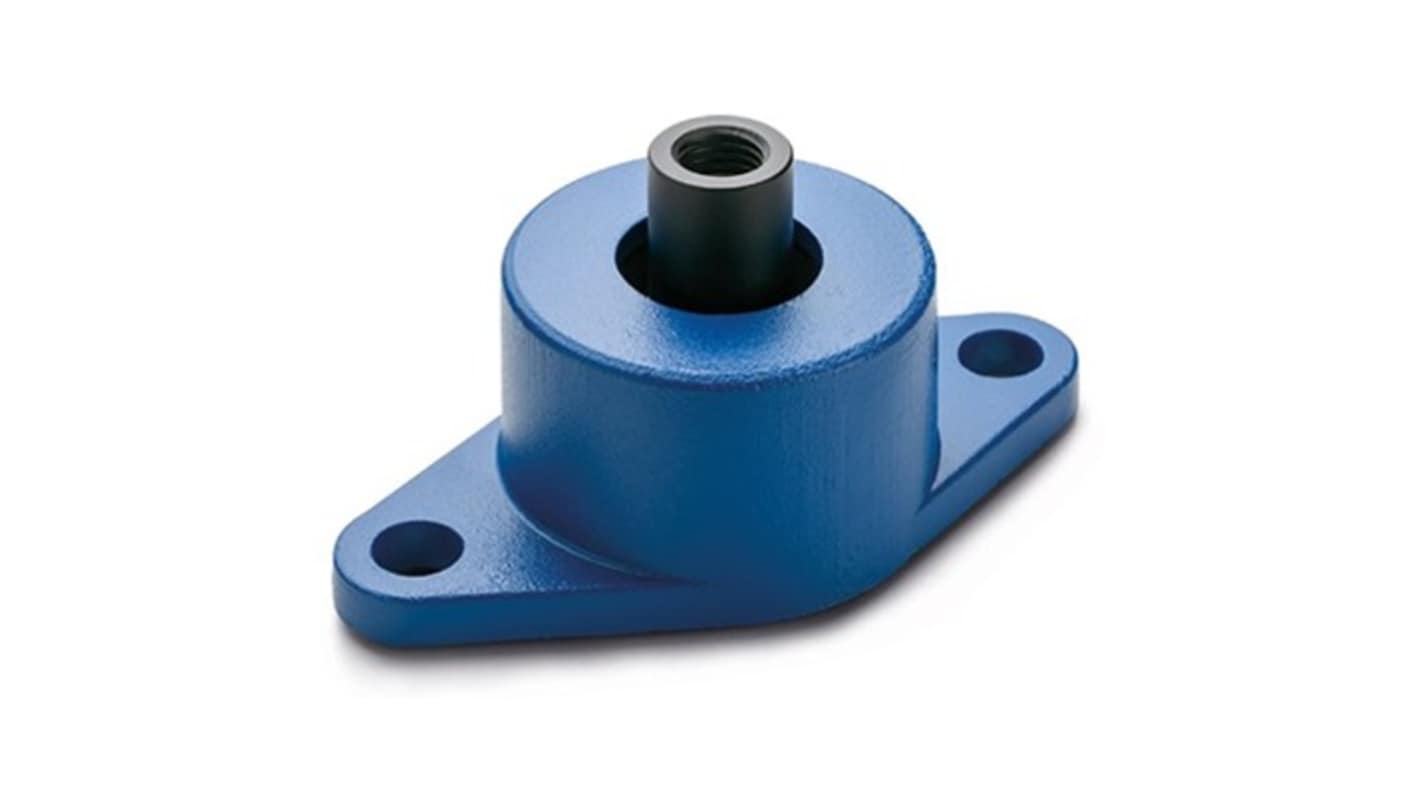

RS PRO Rectangular M16mm Anti Vibration Mount, Flange Mount with 600daN Compression Load

View all Anti Vibration Mounts

Subtotal (1 unit)*

£75.75

(exc. VAT)

£90.90

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£75.75

*price indicative

RS Stock No.:
629-690
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Anti Vibration Mount Type

Flange Mount

Thread Size

M16mm

Diameter

80mm

Bore Diameter

15mm

Compression Load

600daN

Foot Shape

Rectangular

COO (Country of Origin):
IT
The RS Pro Flange mounts are designed to isolate strong vibrations by providing axial holding force and resistance to compression. They help prevent issues caused by vibrations such as equipment malfunction, reduced machine lifespan, health risks, and noise. These mounts are especially suitable for applications involving machine tools, plastic moulding presses, specialized machinery, and shock absorption needs. Its offers high safety degree even in the case of the combustion of rubber resilient, the inner pin cannot come out of the structure and keeps the equipment securely suspended.

Body in aluminium painted with nitrocellulose based enamel in blue colour
Threaded bushing in black coated steel
Vibration damper body in NBR rubber
Good static deflection
Low resonance frequency and good vibration isolation
High damping factor also suitable for unbalanced machines
Suitable for use with compression and traction
