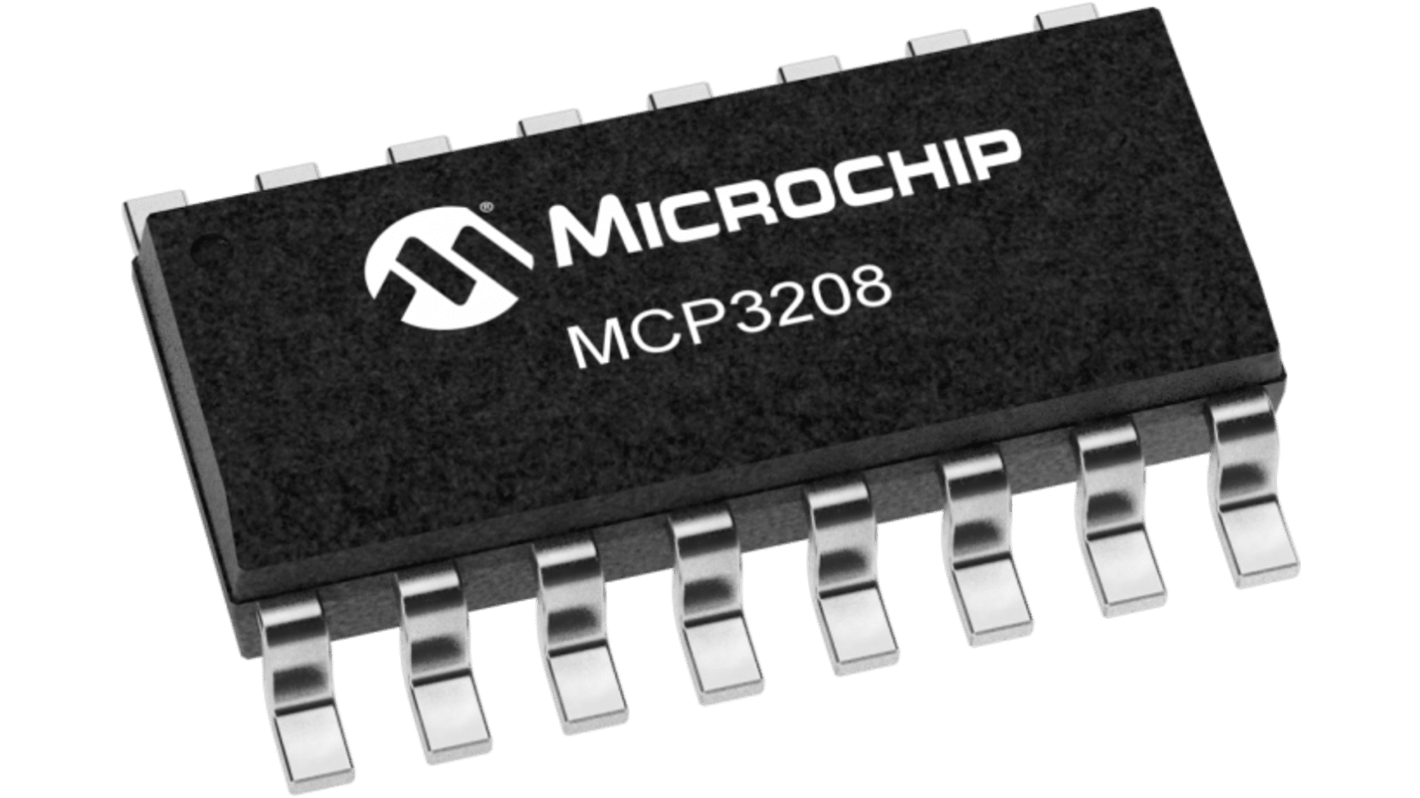

Microchip 4 Analogue to Digital Converter (ADC) 100 ksps, 16-Pin SOIC
- RS Stock No.:
- 649-487
- Mfr. Part No.:
- MCP3208T-CI/SL
- Brand:
- Microchip
Bulk discount available
Subtotal (1 tape of 2 units)*
£4.04
(exc. VAT)
£4.84
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Tape* |
|---|---|---|
| 2 - 18 | £2.02 | £4.04 |
| 20 - 98 | £1.96 | £3.92 |
| 100 - 198 | £1.90 | £3.80 |
| 200 + | £1.63 | £3.26 |
*price indicative
- RS Stock No.:
- 649-487
- Mfr. Part No.:
- MCP3208T-CI/SL
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Product Type | Analogue to Digital Converter (ADC) | |
| Architecture | SAR | |
| Number of ADCs | 4 | |
| Sampling Rate | 100ksps | |
| Input Type | Differential | |
| Package Type | SOIC | |
| Pin Count | 16 | |
| Minimum Operating Temperature | -40°C | |
| Interface Type | SPI | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Maximum Supply Voltage | 5.5V | |
| Series | MCP3204/3208 | |
| Minimum Supply Voltage | 2.7V | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Product Type Analogue to Digital Converter (ADC) | ||
Architecture SAR | ||
Number of ADCs 4 | ||
Sampling Rate 100ksps | ||
Input Type Differential | ||
Package Type SOIC | ||
Pin Count 16 | ||
Minimum Operating Temperature -40°C | ||
Interface Type SPI | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
Maximum Supply Voltage 5.5V | ||
Series MCP3204/3208 | ||
Minimum Supply Voltage 2.7V | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TH
The Microchip 12-bit Analog-to-Digital Converter (ADC) combines high performance and low power consumption in a small package, making it ideal for embedded control applications. It features a successive approximation register (SAR) architecture and an industry-standard SPI serial interface, allowing 12-bit ADC capability to be added to any PICmicro microcontroller.
12-bit resolution
Eight single-ended inputs
SPI interface
AEC-Q100 Grade 3
