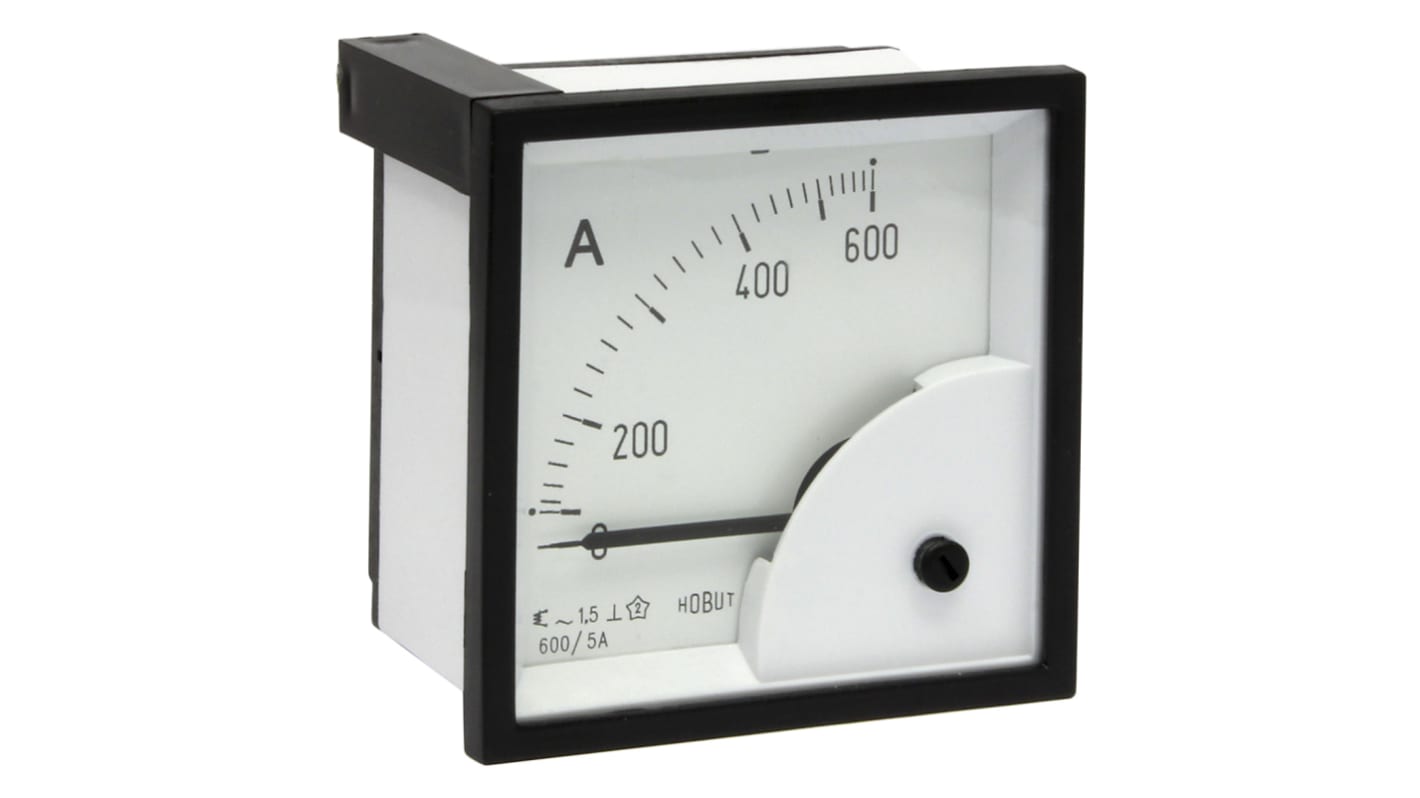

HOBUT D72SD Analogue Panel Ammeter 0/600A For 600/5A CT AC, 72mm x 72mm Moving Iron

RS Stock No.:: 914-5391
Mfr. Part No.:: D72SD5A/0-600A
Brand:: HOBUT

HOBUT D72SD Analogue Panel Ammeter 0/600A For 600/5A CT AC, 72mm x 72mm Moving Iron

21 In stock - FREE next working day delivery available

Added

Price Each

£20.75

(exc. VAT)

£24.90

(inc. VAT)

Units	Per unit
1 - 4	£20.75
5 - 9	£19.70
10 +	£18.68

RS Stock No.:: 914-5391
Mfr. Part No.:: D72SD5A/0-600A
Brand:: HOBUT

Technical Reference

Legislation and Compliance

COO (Country of Origin):: GB

Product Details

CT Operated DIN Moving Iron Ammeters

90° scale arc, accuracy class 1.5
Manufactured to BS89/IEC51
Frequency range 15 to 400Hz
Operating temperature range –25 to +40°C
Flame retardant case to UL94V0
Panel cut out: 68 x 68mm, 92 x 92mm
Terminal covers supplied separately (see accessories)

Ammeters with 5A FSD movements
Compatible with Current Transformers with 5A secondaries (stock No. 313-839)
Overload rating 10x FSD for 5 seconds

Supplied with

Mounting brackets

Specifications

Attribute	Value
Maximum Value	0/600A For 600/5A CT
Current Type	AC
Moving Element	Moving Iron
Cutout Height	72mm
Cutout Width	72mm
Depth	38.5mm
Meter Accuracy	Class 1.5
Minimum Temperature	-25°C
Maximum Temperature	+40°C
Measurement Range	0/600A For 600/5A CT
Minimum Displayed Value	0A
Approvals	BS89, CE, DIN 43700, DIN 43802, IEC 51, UL 94V0, UL 94V1
Series	D72SD
