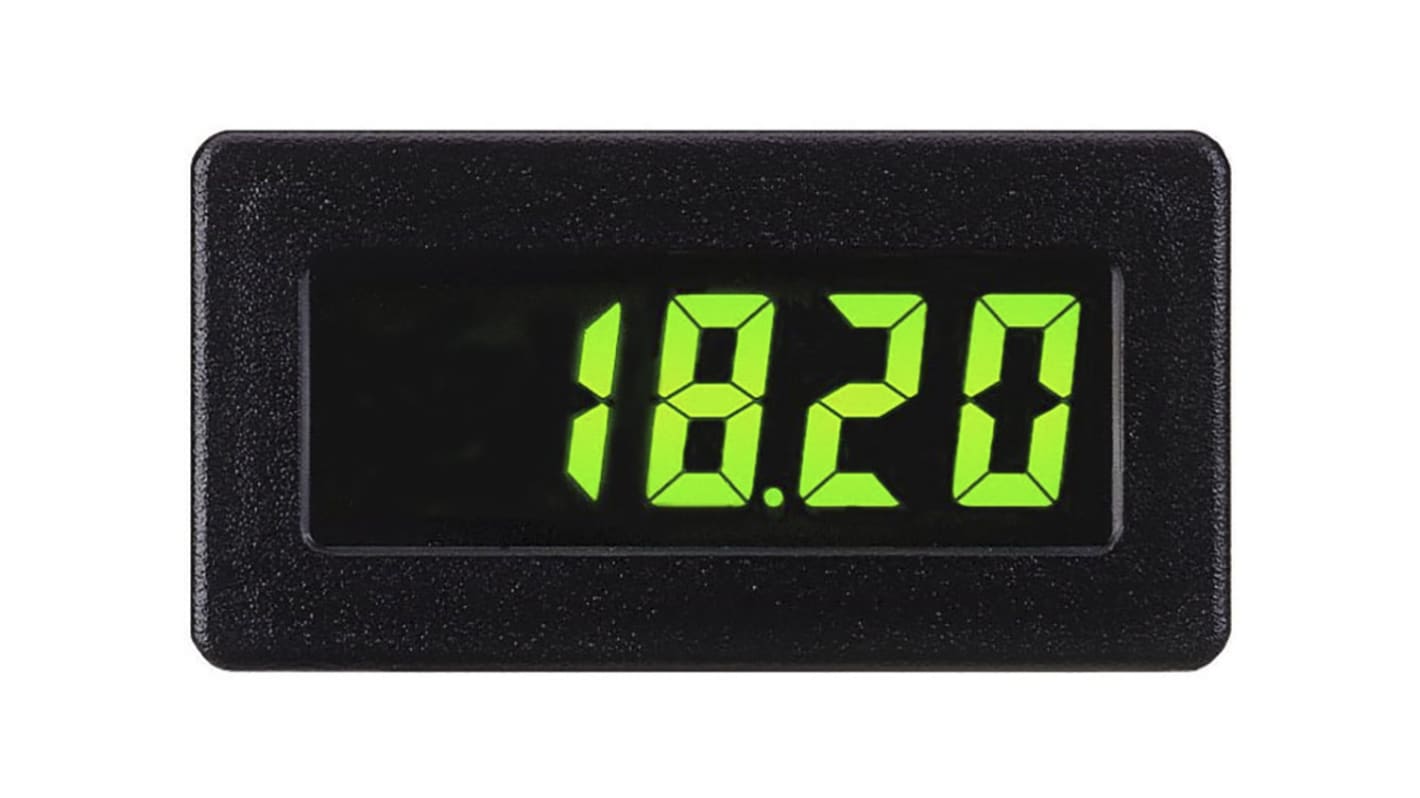

Red Lion CUB4 Digital Panel Ammeter, 33mm x 68mm
- RS Stock No.:
- 905-5490
- Mfr. Part No.:
- CUB4CL30
- Brand:
- Red Lion
Discontinued
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£200.91
(exc. VAT)
£241.09
(inc. VAT)
- RS Stock No.:
- 905-5490
- Mfr. Part No.:
- CUB4CL30
- Brand:
- Red Lion
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Red Lion | |
| Cutout Height | 33mm | |
| Cutout Width | 68mm | |
| Depth | 49.8mm | |
| Minimum Temperature | 0°C | |
| Maximum Temperature | +60°C | |
| Measurement Range | 10 → 50 mA, 4 → 20 mA | |
| Series | CUB4 | |
| Select all | ||
|---|---|---|
Brand Red Lion | ||
Cutout Height 33mm | ||
Cutout Width 68mm | ||
Depth 49.8mm | ||
Minimum Temperature 0°C | ||
Maximum Temperature +60°C | ||
Measurement Range 10 → 50 mA, 4 → 20 mA | ||
Series CUB4 | ||
- COO (Country of Origin):
- US
CUB4CL 3.5 digit Current Loop Ammeter
The CUB4CL uses a 4-20mA or 10-50mA input signal as operating power. An external power supply is ised to power the CUB4CL backlighting to provide a brighter, more consistent display and a lower compliance voltage. The ability to scale the display allows indication in any desired unit of measurement such as temperature, pressure, humidity and fluid flow.
• 3.5-digit (15.2 mm) LCD display
• Available in positive transflective red or green/yellow backlight
• Span and offset capability
• Negative and overrange indication
• Selectable decimal point position
• NEMA 4X/IP65 sealed front panel bezel
• Fits in DIN standard cut-out (68 mm x 33 mm)
• Available in positive transflective red or green/yellow backlight
• Span and offset capability
• Negative and overrange indication
• Selectable decimal point position
• NEMA 4X/IP65 sealed front panel bezel
• Fits in DIN standard cut-out (68 mm x 33 mm)
LCD 4 to 20mA Current Loop Powered Meters
