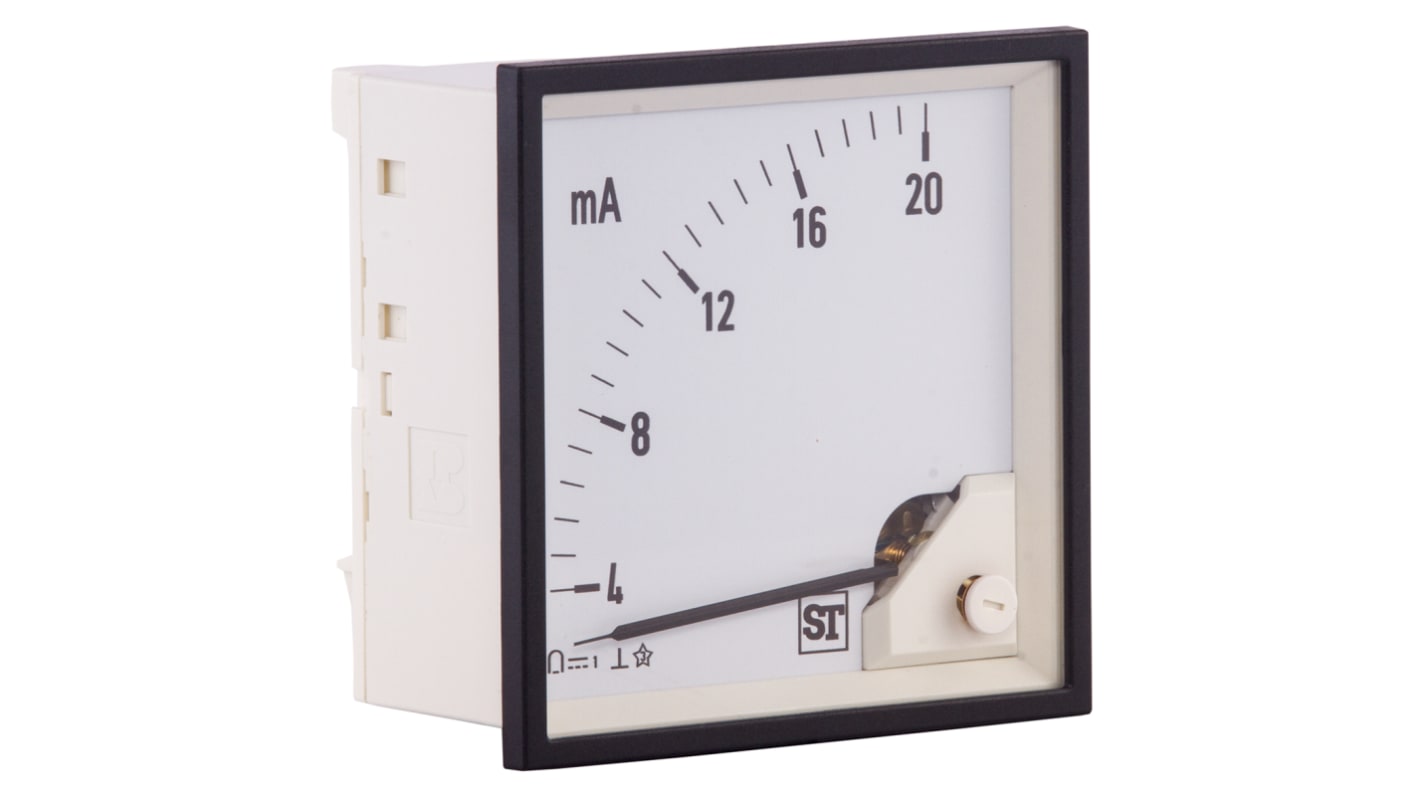

Sifam Tinsley Sigma Analogue Panel Ammeter 20mA DC, 92mm x 92mm Moving Coil
- RS Stock No.:
- 886-2033
- Mfr. Part No.:
- PQ94-I42S2N1CAW0ST
- Brand:
- Sifam Tinsley
Bulk discount available
Subtotal (1 unit)*
£22.21
(exc. VAT)
£26.65
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 8 unit(s) ready to ship from another location
- Plus 16 unit(s) shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £22.21 |
5 - 9 | £21.53 |
10 + | £21.05 |
*price indicative
- RS Stock No.:
- 886-2033
- Mfr. Part No.:
- PQ94-I42S2N1CAW0ST
- Brand:
- Sifam Tinsley
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Sifam Tinsley | |
Maximum Value | 20mA | |
Current Type | DC | |
Moving Element | Moving Coil | |
Cutout Height | 92mm | |
Cutout Width | 92mm | |
Depth | 54mm | |
Minimum Temperature | -10°C | |
Maximum Temperature | +55°C | |
Measurement Range | 4 → 20mA | |
Series | Sigma | |
Approvals | 2004 / 108 / EC (EMC Directive), 2006 / 95 / EC (Low Voltage Directive) and Amendment 93 / 68 / EEC, CE, DIN 40050, DIN 43701, DIN 43718, DIN 43802, DIN 43807, DIN 46200, DIN 46282, DIN EN 60051, DIN IEC 61554, EC 51, EC 529, IEC 1010, IS:1248, IS:9249, U | |
Minimum Displayed Value | 4mA | |
Select all | ||
---|---|---|
Brand Sifam Tinsley | ||
Maximum Value 20mA | ||
Current Type DC | ||
Moving Element Moving Coil | ||
Cutout Height 92mm | ||
Cutout Width 92mm | ||
Depth 54mm | ||
Minimum Temperature -10°C | ||
Maximum Temperature +55°C | ||
Measurement Range 4 → 20mA | ||
Series Sigma | ||
Approvals 2004 / 108 / EC (EMC Directive), 2006 / 95 / EC (Low Voltage Directive) and Amendment 93 / 68 / EEC, CE, DIN 40050, DIN 43701, DIN 43718, DIN 43802, DIN 43807, DIN 46200, DIN 46282, DIN EN 60051, DIN IEC 61554, EC 51, EC 529, IEC 1010, IS:1248, IS:9249, U | ||
Minimum Displayed Value 4mA | ||
Non Compliant
- COO (Country of Origin):
- IN
Sigma Series DS Panel Meter
These Sigma Series of DE moving coil panel meters are housed in moulded polycarbonate cases and are suitable for the measurement of DC currents and voltages. The meters offer several advantages in switchboards and Generating Set Panels.
Meters available for mounting in a panel cut out
Available in variety of sizes for both Ammeters & Voltmeters
Linear scale
Glass filled polycarbonate housing
Knife edge pointer
Easily replaceable glass and bezel
Available in variety of sizes for both Ammeters & Voltmeters
Linear scale
Glass filled polycarbonate housing
Knife edge pointer
Easily replaceable glass and bezel
Sifam Tinsley Moving Coil Panel Meters
