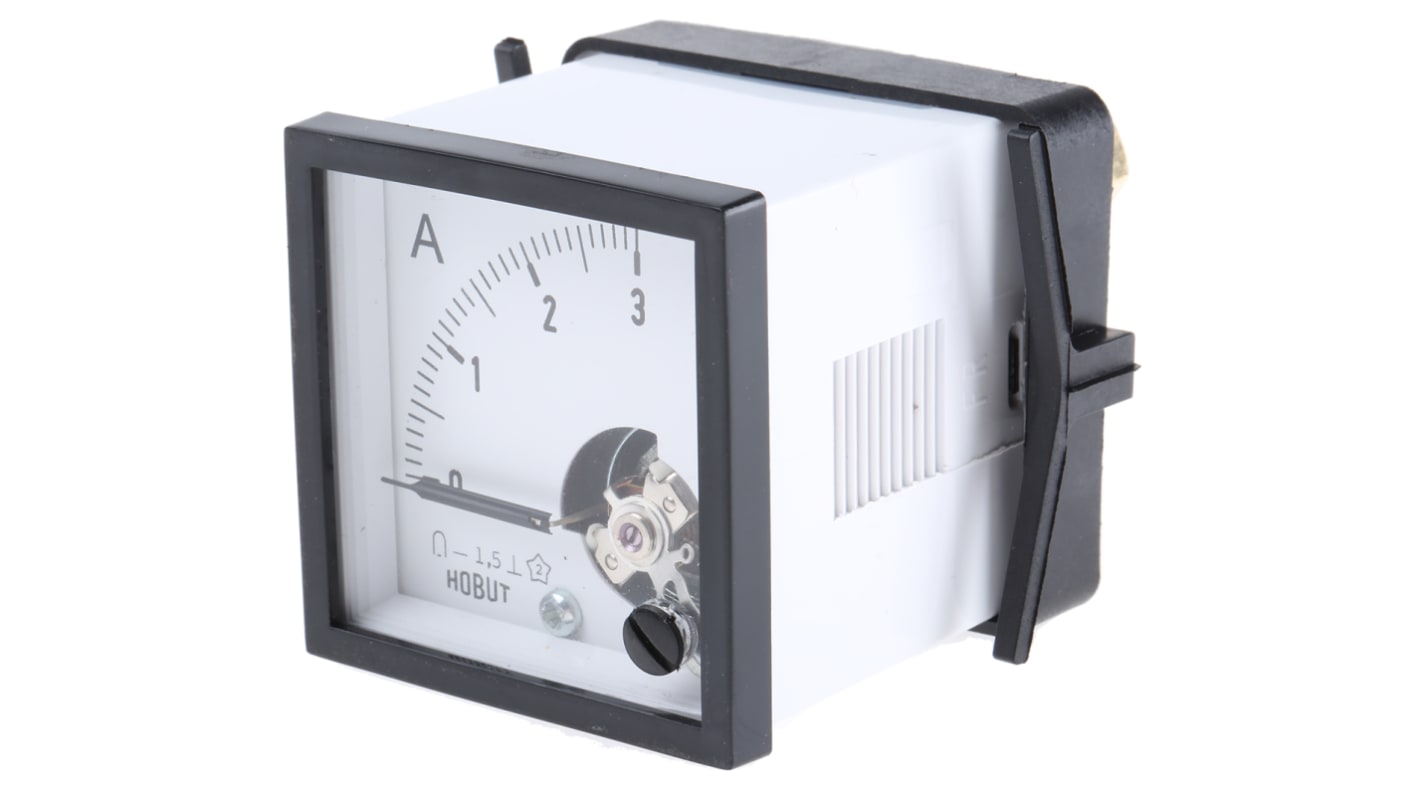

HOBUT D48MC Analogue Panel Ammeter DC, 48 mm x 48 mm, Class 1.5 Moving Coil
- RS Stock No.:
- 313-491
- Mfr. Part No.:
- D481MCS75MV/4-001 0/3A
- Brand:
- HOBUT
Bulk discount available
Subtotal (1 unit)*
£42.07
(exc. VAT)
£50.48
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 24 unit(s) shipping from 27 April 2026
- Plus 2 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £42.07 |
| 5 - 9 | £40.77 |
| 10 + | £39.92 |
*price indicative
- RS Stock No.:
- 313-491
- Mfr. Part No.:
- D481MCS75MV/4-001 0/3A
- Brand:
- HOBUT
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HOBUT | |
| Product Type | Analogue Panel Ammeter | |
| Current Type | DC | |
| Moving Element | Moving Coil | |
| Cutout Height | 48mm | |
| Cutout Width | 48mm | |
| Depth | 43mm | |
| Meter Accuracy | Class 1.5 | |
| Maximum Operating Temperature | 40°C | |
| Minimum Operating Temperature | -25°C | |
| Standards/Approvals | ES50-2, UL94V0, BS 89, UL94V1, DIN 43700, DIN 43802, IEC 51 | |
| Series | D48MC | |
| Select all | ||
|---|---|---|
Brand HOBUT | ||
Product Type Analogue Panel Ammeter | ||
Current Type DC | ||
Moving Element Moving Coil | ||
Cutout Height 48mm | ||
Cutout Width 48mm | ||
Depth 43mm | ||
Meter Accuracy Class 1.5 | ||
Maximum Operating Temperature 40°C | ||
Minimum Operating Temperature -25°C | ||
Standards/Approvals ES50-2, UL94V0, BS 89, UL94V1, DIN 43700, DIN 43802, IEC 51 | ||
Series D48MC | ||
- COO (Country of Origin):
- GB
DC Voltage and Current Meters
90° scale arc
Accuracy class 1.5; BS89 and IEC51
Flame retardant case to UL94V0
Fitted with mounting brackets
Operating temperature range -25 → +40°C
Terminal covers available separately
48x48mm ammeters have integral scales; appropriate scales must be chosen and ordered separately for the 72x72 & 96x96mm ammeters
Note
All ammeters are shunt operated and an appropriate 75mV shunt (no. 257-307 typically) must be ordered separately for each meter; the meters cannot be used without them
