- RS Stock No.:
- 313-413
- Mfr. Part No.:
- D72MIS10A/1-002
- Brand:
- HOBUT
42 In stock - FREE next working day delivery available
2 available from Europe for delivery within 1 working day(s).
Added
Price Each
£18.68
(exc. VAT)
£22.42
(inc. VAT)
Units | Per unit |
1 - 4 | £18.68 |
5 - 9 | £18.12 |
10 + | £17.71 |
- RS Stock No.:
- 313-413
- Mfr. Part No.:
- D72MIS10A/1-002
- Brand:
- HOBUT
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

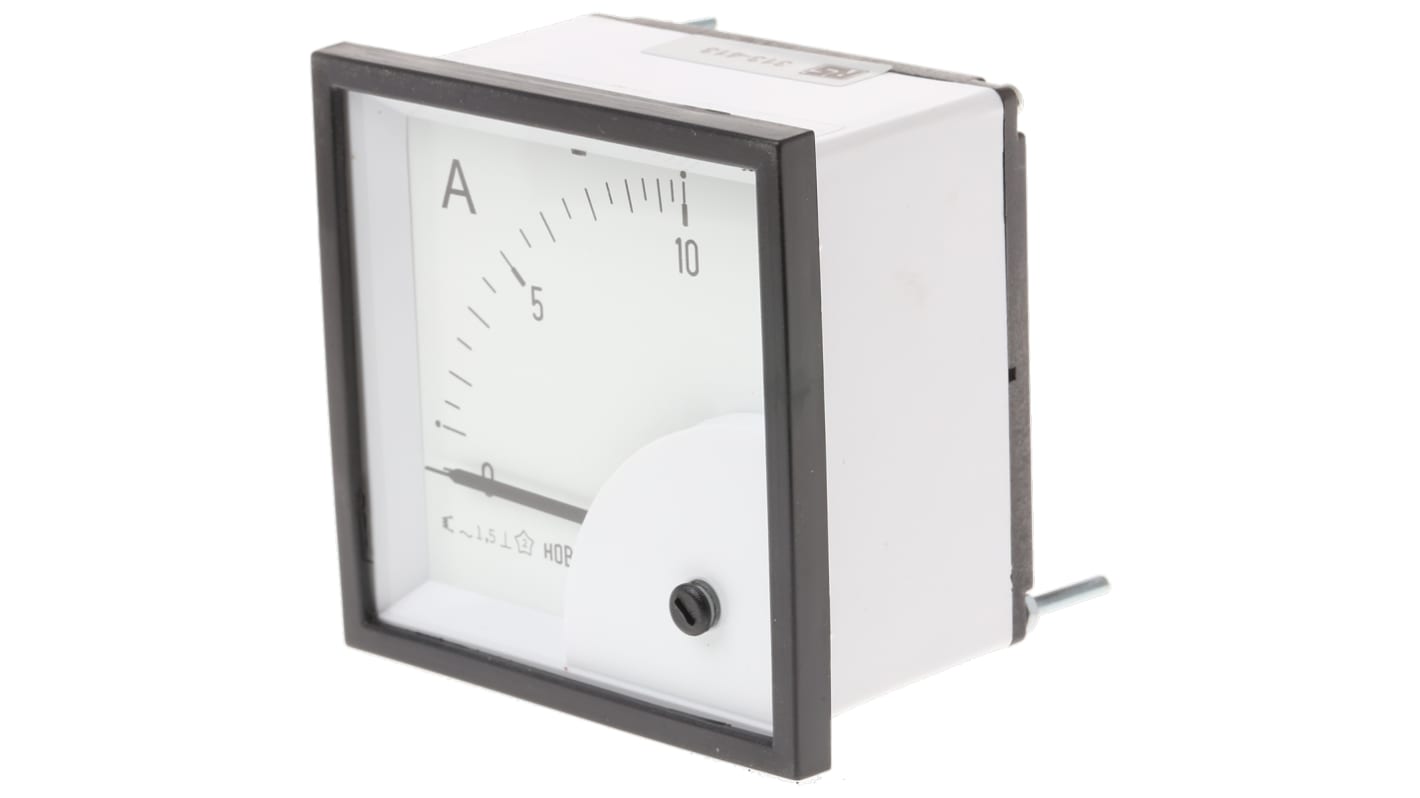

Standard DIN AC Moving Iron Meters
90° scale arc, accuracy class 1.5
Manufactured to BS89/IEC51
Frequency range 15 to 400Hz
Operating temperature range: –25 to +40°C
Flame retardant case to UL94V0
Panel cut out: 45 x 45mm, 68 x 68mm, 92 x 92mm
Terminal covers supplied separately (see accessories)
Manufactured to BS89/IEC51
Frequency range 15 to 400Hz
Operating temperature range: –25 to +40°C
Flame retardant case to UL94V0
Panel cut out: 45 x 45mm, 68 x 68mm, 92 x 92mm
Terminal covers supplied separately (see accessories)
Direct reading voltmeters and ammeters for measuring resistive loads
Note
Ammeter scales illustrated, voltmeter scales are similar
Supplied with
mounting brackets.
Specifications
Attribute | Value |
---|---|
Maximum Value | 0/10A Direct Connected |
Current Type | AC |
Moving Element | Moving Iron |
Cutout Height | 72mm |
Cutout Width | 72mm |
Depth | 38.5mm |
Meter Accuracy | Class 1.5 |
Minimum Temperature | -25°C |
Maximum Temperature | +40°C |
Measurement Range | 0/10A Direct Connected |
Series | D72SD |
