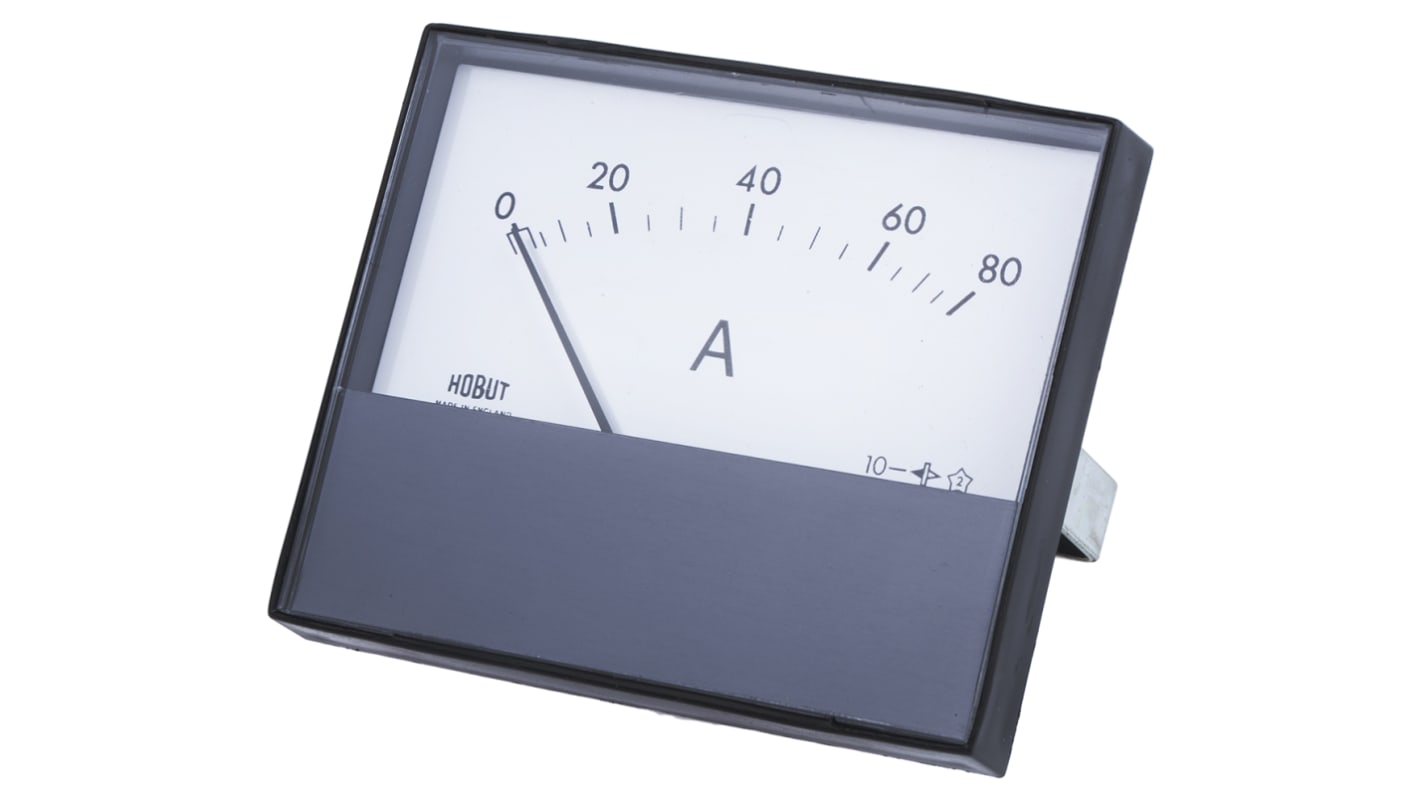

HOBUT R68M Analogue Panel Ammeter 80A DC, 63.5mm x 62.5mm, ±8 % Moving Magnet
- RS Stock No.:
- 244-957
- Mfr. Part No.:
- R68M-80A-001
- Brand:
- HOBUT
Bulk discount available
Subtotal (1 unit)*
£24.30
(exc. VAT)
£29.16
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 32 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £24.30 |
5 - 9 | £23.55 |
10 + | £23.01 |
*price indicative
- RS Stock No.:
- 244-957
- Mfr. Part No.:
- R68M-80A-001
- Brand:
- HOBUT
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | HOBUT | |
Maximum Value | 80A | |
Current Type | DC | |
Moving Element | Moving Magnet | |
Cutout Height | 63.5mm | |
Cutout Width | 62.5mm | |
Depth | 35mm | |
Meter Accuracy | ±8 % | |
Minimum Temperature | -20°C | |
Maximum Temperature | +40°C | |
Measurement Range | 0/80A | |
Series | R68M | |
Select all | ||
---|---|---|
Brand HOBUT | ||
Maximum Value 80A | ||
Current Type DC | ||
Moving Element Moving Magnet | ||
Cutout Height 63.5mm | ||
Cutout Width 62.5mm | ||
Depth 35mm | ||
Meter Accuracy ±8 % | ||
Minimum Temperature -20°C | ||
Maximum Temperature +40°C | ||
Measurement Range 0/80A | ||
Series R68M | ||
- COO (Country of Origin):
- GB





HOBUT Moving Magnet
The HOBUT R68M series moving magnet measures the maximum current of 80A. It also measures the accuracy of ±8% and 90° scale arc.
Features and Benefits
Cut-out height is 63.5mm
Cut-out width is 62.5mm
Depth is 35mm
Case fitted with black and white bezel
It is supplied with mounting brackets
Operating temperature ranging between -20°C and 40°C
Suitable for high current battery charger applications
Cut-out width is 62.5mm
Depth is 35mm
Case fitted with black and white bezel
It is supplied with mounting brackets
Operating temperature ranging between -20°C and 40°C
Suitable for high current battery charger applications
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
BS EN 61340-5-1:2007
