CHEMI-CON 560μF Aluminium Electrolytic Capacitor 400V dc, Snap-In - ELXS401VSN561MR45S
- RS Stock No.:
- 914-3715
- Mfr. Part No.:
- ELXS401VSN561MR45S
- Brand:
- CHEMI-CON
Bulk discount available
Subtotal (1 unit)*
£9.53
(exc. VAT)
£11.44
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 195 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £9.53 |
| 10 - 24 | £8.47 |
| 25 - 99 | £7.67 |
| 100 + | £6.80 |
*price indicative
- RS Stock No.:
- 914-3715
- Mfr. Part No.:
- ELXS401VSN561MR45S
- Brand:
- CHEMI-CON
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | CHEMI-CON | |
| Capacitance | 560µF | |
| Voltage | 400V dc | |
| Mounting Type | Snap-In | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 30 (Dia.) x 45mm | |
| Length | 45mm | |
| Minimum Operating Temperature | -25°C | |
| Diameter | 30mm | |
| Maximum Operating Temperature | +105°C | |
| Lifetime | 5000h | |
| Lead Pitch | 10mm | |
| Ripple Current | 2.04Arms | |
| Series | LXS | |
| Tolerance | ±20% | |
| Leakage Current | <=3√CV μA @ 5 min | |
| Dissipation Factor | 0.15% | |
| Select all | ||
|---|---|---|
Brand CHEMI-CON | ||
Capacitance 560µF | ||
Voltage 400V dc | ||
Mounting Type Snap-In | ||
Technology Aluminium Electrolytic | ||
Dimensions 30 (Dia.) x 45mm | ||
Length 45mm | ||
Minimum Operating Temperature -25°C | ||
Diameter 30mm | ||
Maximum Operating Temperature +105°C | ||
Lifetime 5000h | ||
Lead Pitch 10mm | ||
Ripple Current 2.04Arms | ||
Series LXS | ||
Tolerance ±20% | ||
Leakage Current <=3√CV μA @ 5 min | ||
Dissipation Factor 0.15% | ||

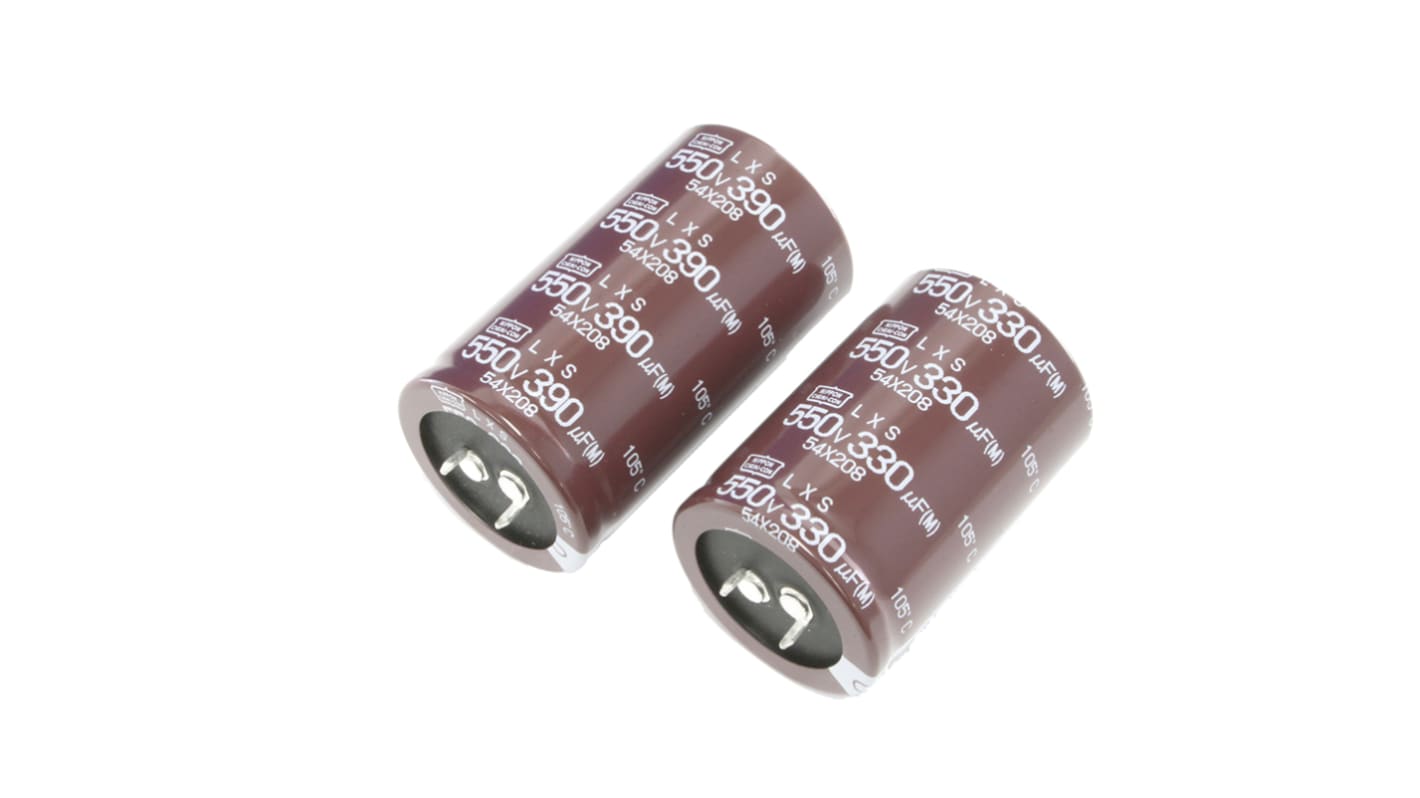

Nippon Chemi-Con Al Snap-in Capacitors, LXS Series
Long Life Large Capacitance Aluminium Electrolytic Capacitors, LXS Series
Endurance with Ripple Current: 5000 hours at 105℃
Rated voltage range: 160 V to 500 V
Downsized from LXQ series
Non-solvent resistant type
Ideal for Solar Power Generation
Rated voltage range: 160 V to 500 V
Downsized from LXQ series
Non-solvent resistant type
Ideal for Solar Power Generation
