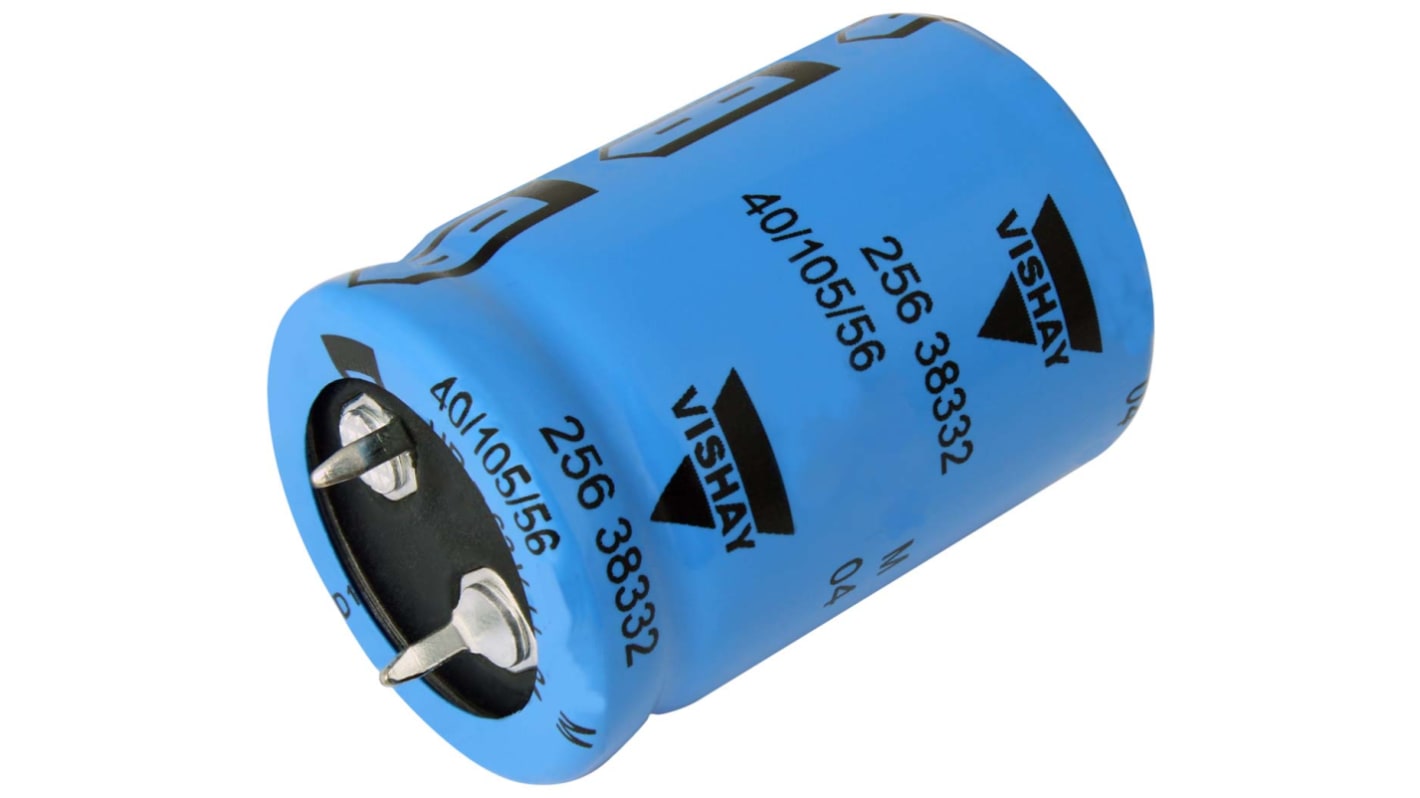

Vishay 4700μF Aluminium Electrolytic Capacitor 63V dc, Snap-In - MAL225638472E3
- RS Stock No.:
- 875-2639
- Distrelec Article No.:
- 301-77-816
- Mfr. Part No.:
- MAL225638472E3
- Brand:
- Vishay
Save 24% when you buy 100 units
Subtotal (1 unit)*
£6.99
(exc. VAT)
£8.39
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 39 unit(s) ready to ship
- Plus 68 unit(s) ready to ship from another location
- Plus 94 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £6.99 |
10 - 24 | £6.57 |
25 - 49 | £6.16 |
50 - 99 | £5.74 |
100 + | £5.25 |
*price indicative
- RS Stock No.:
- 875-2639
- Distrelec Article No.:
- 301-77-816
- Mfr. Part No.:
- MAL225638472E3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Vishay | |
Capacitance | 4700µF | |
Voltage | 63V dc | |
Mounting Type | Snap-In | |
Technology | Aluminium Electrolytic | |
Dimensions | 26 (Dia.) x 42mm | |
Height | 42mm | |
Minimum Operating Temperature | -40°C | |
Diameter | 26mm | |
Maximum Operating Temperature | +105°C | |
Lifetime | 2000h | |
Lead Pitch | 10mm | |
Equivalent Series Resistance | 85mΩ | |
Leakage Current | 1.5 mA | |
Tolerance | ±20% | |
Series | 256 | |
Ripple Current | 2.51A | |
Select all | ||
---|---|---|
Brand Vishay | ||
Capacitance 4700µF | ||
Voltage 63V dc | ||
Mounting Type Snap-In | ||
Technology Aluminium Electrolytic | ||
Dimensions 26 (Dia.) x 42mm | ||
Height 42mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 26mm | ||
Maximum Operating Temperature +105°C | ||
Lifetime 2000h | ||
Lead Pitch 10mm | ||
Equivalent Series Resistance 85mΩ | ||
Leakage Current 1.5 mA | ||
Tolerance ±20% | ||
Series 256 | ||
Ripple Current 2.51A | ||
256 Series
MAL256 Series Polarized Aluminium Electrolytic Capacitors, non-solid electrolyte
Pressure relief on the top of the Aluminium case
PET insulation sleeve
Pressure relief on the top of the Aluminium case
PET insulation sleeve
Useful life of 2000h at +105°C and greater than 5000h at +85°C
Voltage range from 16V to 100V
Applications in General purpose, industrial; Standard and Switched Mode Power Supplies; Audio systems; DC/DC converters; Telecom; Smoothing and Filtering
Voltage range from 16V to 100V
Applications in General purpose, industrial; Standard and Switched Mode Power Supplies; Audio systems; DC/DC converters; Telecom; Smoothing and Filtering
