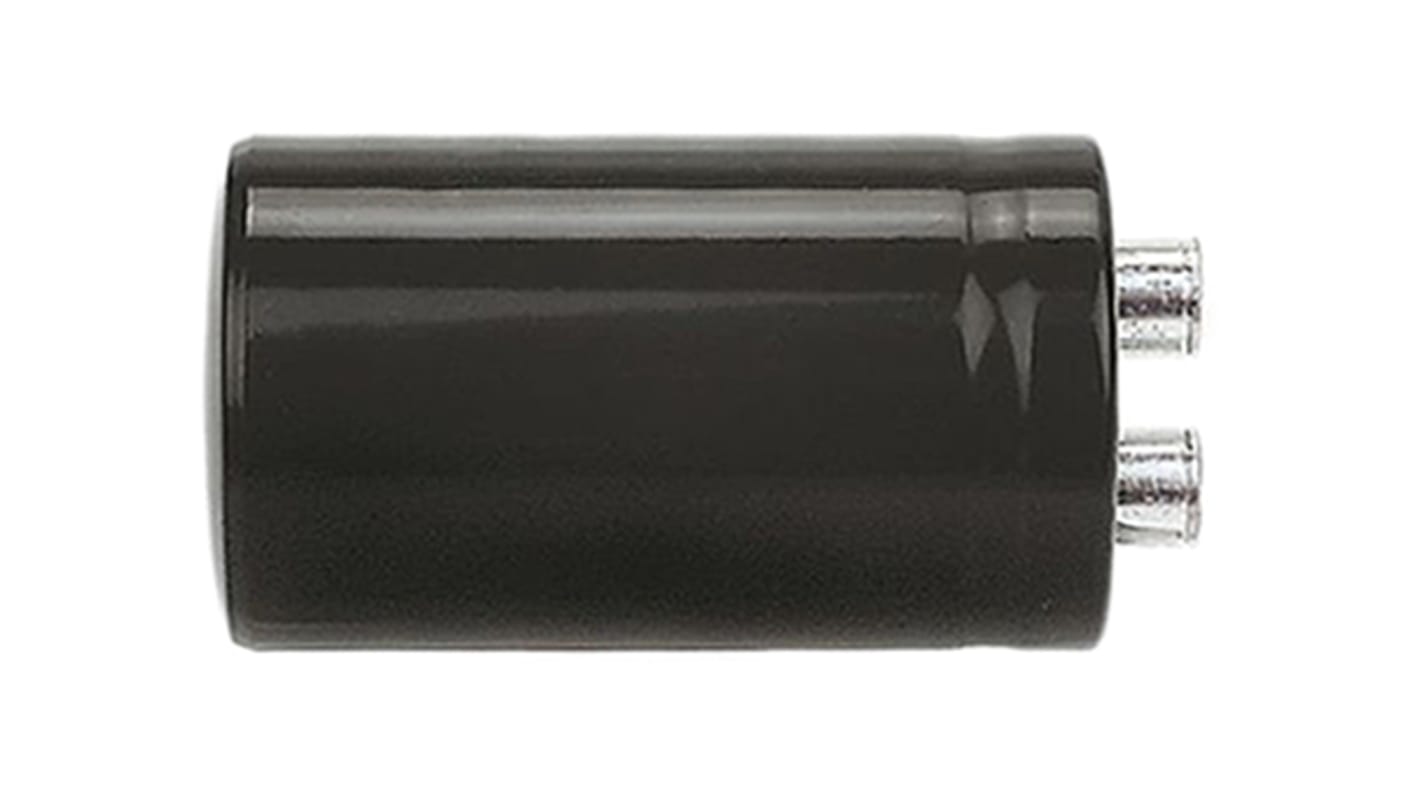

KEMET 2200μF Aluminium Electrolytic Capacitor 550V dc, Screw Terminal - ALS60A222MP550
- RS Stock No.:
- 871-2120
- Mfr. Part No.:
- ALS60A222MP550
- Brand:
- KEMET
Bulk discount available
Subtotal (1 unit)*
£67.68
(exc. VAT)
£81.22
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 32 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 - 2 | £67.68 |
| 3 - 4 | £53.53 |
| 5 - 9 | £52.18 |
| 10 + | £50.83 |
*price indicative
- RS Stock No.:
- 871-2120
- Mfr. Part No.:
- ALS60A222MP550
- Brand:
- KEMET
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Capacitance | 2200µF | |
| Voltage | 550V dc | |
| Mounting Type | Screw Terminal | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 66 x 146mm | |
| Height | 146mm | |
| Length | 146mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 66mm | |
| Maximum Operating Temperature | +85°C | |
| Lifetime | 19000 h @ +85 °C/550V dc/Ir, 38000 h @ +85 °C/550V dc | |
| Lead Pitch | 28.5mm | |
| Equivalent Series Resistance | 140mΩ | |
| Series | ALS60 | |
| Tolerance | ±20% | |
| Leakage Current | 6 mA | |
| Ripple Current | 11.3 A @100 Hz, 17.1 A @10 kHz | |
| Polarised | Polar | |
Select all | ||
|---|---|---|
Brand KEMET | ||
Capacitance 2200µF | ||
Voltage 550V dc | ||
Mounting Type Screw Terminal | ||
Technology Aluminium Electrolytic | ||
Dimensions 66 x 146mm | ||
Height 146mm | ||
Length 146mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 66mm | ||
Maximum Operating Temperature +85°C | ||
Lifetime 19000 h @ +85 °C/550V dc/Ir, 38000 h @ +85 °C/550V dc | ||
Lead Pitch 28.5mm | ||
Equivalent Series Resistance 140mΩ | ||
Series ALS60 | ||
Tolerance ±20% | ||
Leakage Current 6 mA | ||
Ripple Current 11.3 A @100 Hz, 17.1 A @10 kHz | ||
Polarised Polar | ||
