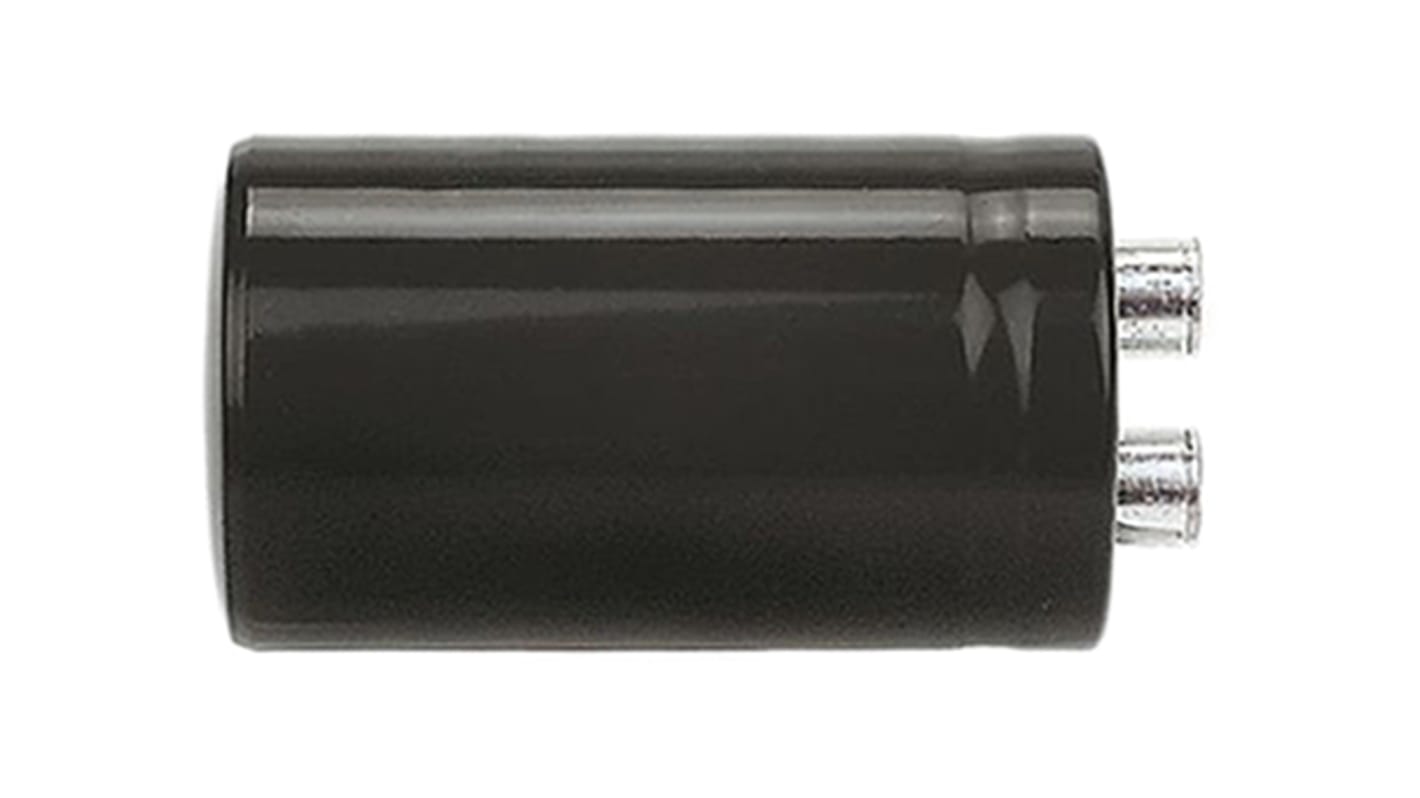

KEMET 1000μF Aluminium Electrolytic Capacitor 550V dc, Screw Terminal - ALS60A102KJ550
- RS Stock No.:
- 871-2105
- Mfr. Part No.:
- ALS60A102KJ550
- Brand:
- KEMET
Subtotal (1 unit)*
£39.43
(exc. VAT)
£47.32
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 139 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £39.43 |
*price indicative
- RS Stock No.:
- 871-2105
- Mfr. Part No.:
- ALS60A102KJ550
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | KEMET | |
Capacitance | 1000µF | |
Voltage | 550V dc | |
Mounting Type | Screw Terminal | |
Technology | Aluminium Electrolytic | |
Dimensions | 51 x 115mm | |
Height | 115mm | |
Length | 115mm | |
Minimum Operating Temperature | -40°C | |
Diameter | 51mm | |
Maximum Operating Temperature | +85°C | |
Lead Pitch | 22.2mm | |
Lifetime | 18000 h @ +85 °C/550V dc/Ir, 36000 h @ +85 °C/550V dc | |
Ripple Current | 10.1 A @10 kHz, 6.4 A @100 Hz | |
Tolerance | ±20% | |
Series | ALS60 | |
Leakage Current | 3.3 mA | |
Equivalent Series Resistance | 302mΩ | |
Polarised | Polar | |
Select all | ||
---|---|---|
Brand KEMET | ||
Capacitance 1000µF | ||
Voltage 550V dc | ||
Mounting Type Screw Terminal | ||
Technology Aluminium Electrolytic | ||
Dimensions 51 x 115mm | ||
Height 115mm | ||
Length 115mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 51mm | ||
Maximum Operating Temperature +85°C | ||
Lead Pitch 22.2mm | ||
Lifetime 18000 h @ +85 °C/550V dc/Ir, 36000 h @ +85 °C/550V dc | ||
Ripple Current 10.1 A @10 kHz, 6.4 A @100 Hz | ||
Tolerance ±20% | ||
Series ALS60 | ||
Leakage Current 3.3 mA | ||
Equivalent Series Resistance 302mΩ | ||
Polarised Polar | ||
Kemet ALS60 Series
KEMET's ALS60 Series of Screw Terminal Aluminium Electrolytic capacitors is designed for high voltage, high ripple current applications
Long life, up to 20,000 hours at +85°C (VR, IR applied)
High ripple current
Excellent surge voltage capability
Ideally suited for industrial and commercial applications demanding high reliability and long-life expectancy such as frequency converters, uninterruptible power supply (UPS) systems and switch mode power supplies (SMPS)
Typical applications for KEMET's ALS60 Series of capacitors include smoothing, energy storage, demanding power supplies, AC motor control, traction and welding
High ripple current
Excellent surge voltage capability
Ideally suited for industrial and commercial applications demanding high reliability and long-life expectancy such as frequency converters, uninterruptible power supply (UPS) systems and switch mode power supplies (SMPS)
Typical applications for KEMET's ALS60 Series of capacitors include smoothing, energy storage, demanding power supplies, AC motor control, traction and welding
Standards
AEC-Q200 qualified
Clamp-fixing +85°C
Ideal for computer power supply applications or other applications that require long operational life
