Nichicon 220μF Aluminium Electrolytic Capacitor 400V dc, Snap-In - LGU2G221MELZ
- RS Stock No.:
- 844-2859
- Mfr. Part No.:
- LGU2G221MELZ
- Brand:
- Nichicon
83 In stock - FREE next working day delivery available
2 available from Europe for delivery within 1 working day(s).
Added
Price Each
£4.42
(exc. VAT)
£5.30
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £4.42 |
| 5 + | £4.19 |
- RS Stock No.:
- 844-2859
- Mfr. Part No.:
- LGU2G221MELZ
- Brand:
- Nichicon
Technical Reference
Legislation and Compliance
Product Details

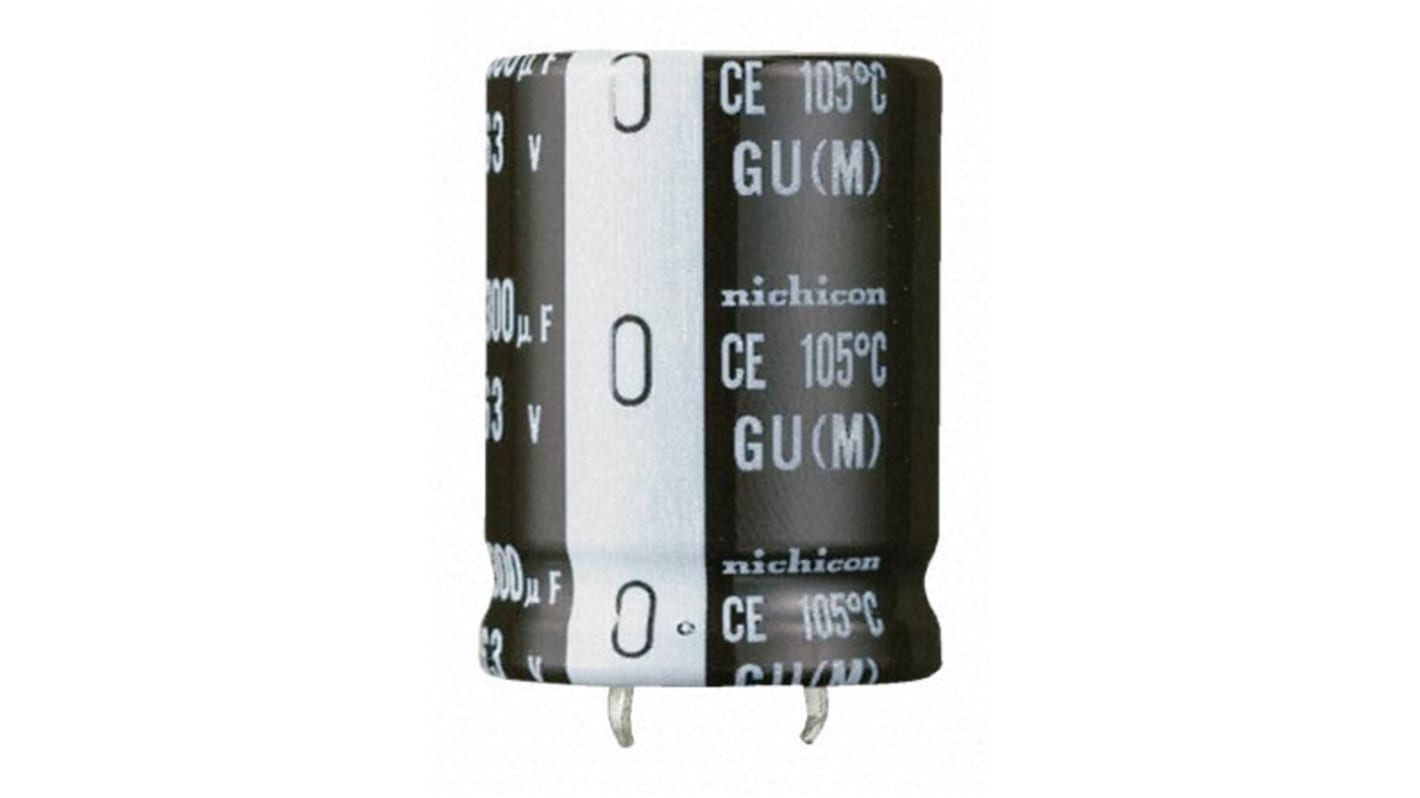

Nichicon GU Series
Nichicon GU Series Snap-In Aluminium Electrolytic Capacitors can withstand 3000 hours of rated ripple current application. The snap-in terminal GU Series Aluminium Electrolytic Capacitors from Nichicon offer a large capacitance range with voltages ranging from 16 to 450V. These high performance capacitors have a wide temperature range which is ideal for applications such as uninterruptible power supplies, electric pump motors, and AC servomotors.
Snap-In terminals
Endurance rating ripple current 3000 hours guaranteed
PET sleeve (non PVC)
Lead-free terminal plating
Endurance rating ripple current 3000 hours guaranteed
PET sleeve (non PVC)
Lead-free terminal plating
Specifications
Attribute | Value |
|---|---|
| Capacitance | 220µF |
| Voltage | 400V dc |
| Mounting Type | Snap-In |
| Technology | Aluminium Electrolytic |
| Dimensions | 22 (Dia.) x 50mm |
| Height | 50mm |
| Minimum Operating Temperature | -25°C |
| Diameter | 22mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 3000h |
| Lead Pitch | 10mm |
| Ripple Current | 1.1A |
| Tolerance | ±20% |
| Series | GU |
| Leakage Current | 0.88 mA |
