- RS Stock No.:
- 814-3155
- Mfr. Part No.:
- EGPA350ELL122ML20S
- Brand:
- CHEMI-CON
Available to back order for despatch 08/10/2024
Added
Price Each (In a Pack of 5)
£1.79
(exc. VAT)
£2.15
(inc. VAT)
Units | Per unit | Per Pack* |
5 - 20 | £1.79 | £8.95 |
25 - 45 | £1.522 | £7.61 |
50 - 95 | £1.344 | £6.72 |
100 - 245 | £1.164 | £5.82 |
250 + | £1.074 | £5.37 |
*price indicative |
- RS Stock No.:
- 814-3155
- Mfr. Part No.:
- EGPA350ELL122ML20S
- Brand:
- CHEMI-CON
Technical Reference
Legislation and Compliance
Product Details

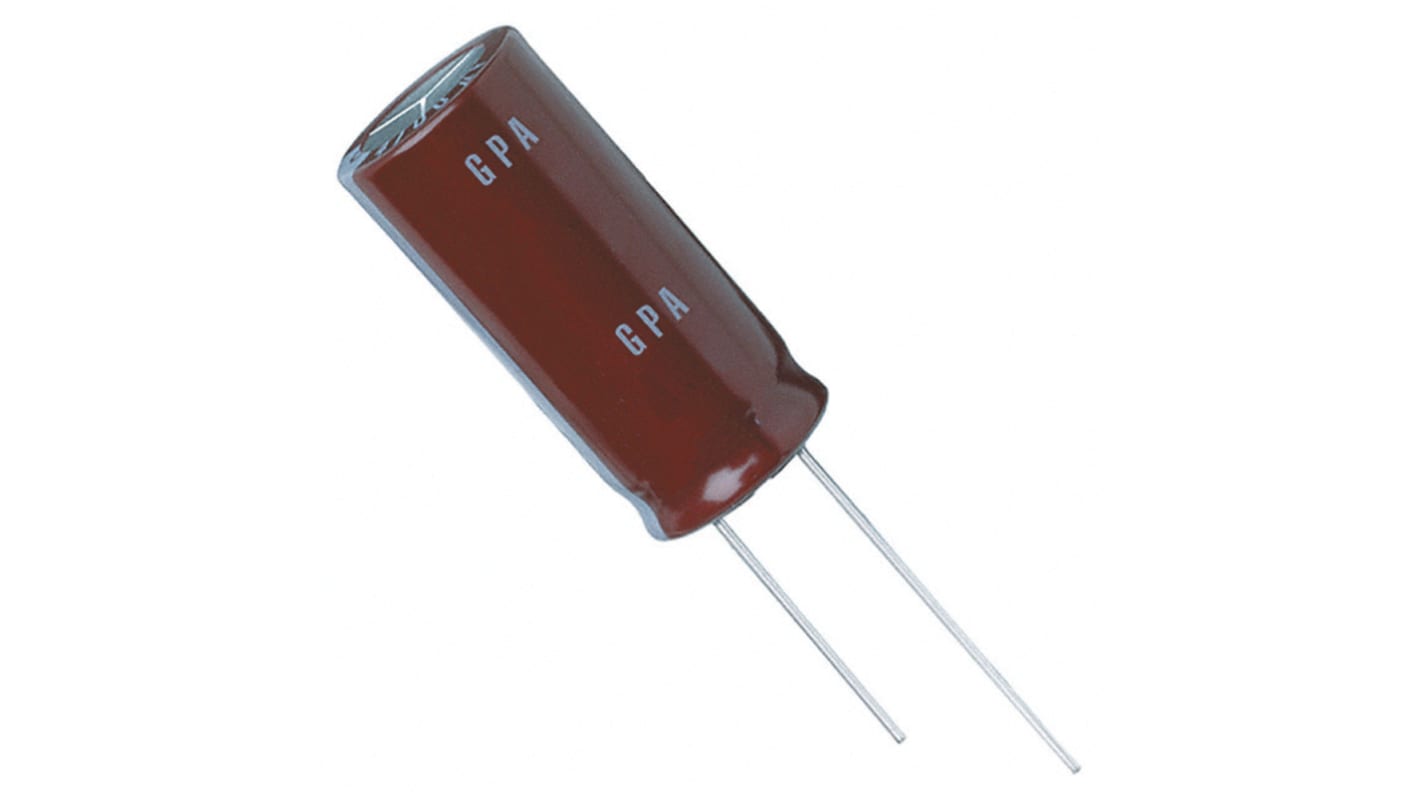

GPA Series Miniature Aluminium Electrolytic Capacitors
GPA Series miniature Al electrolytic capacitors are downsized, low impedance and high-ripple current version of GXE series
Guaranteed short time at 150℃ and long life at 125℃
Specified ESR after endurance test
For high ripple current automotive applications, (Direct fuel injection and electric power steering etc.)
Guaranteed short time at 150℃ and long life at 125℃
Specified ESR after endurance test
For high ripple current automotive applications, (Direct fuel injection and electric power steering etc.)
Specifications
Attribute | Value |
---|---|
Capacitance | 1200µF |
Voltage | 35V dc |
Mounting Type | Radial, Through Hole |
Technology | Aluminium Electrolytic |
Dimensions | 16 (Dia.) x 20mm |
Length | 20mm |
Minimum Operating Temperature | -40°C |
Diameter | 16mm |
Maximum Operating Temperature | +125°C |
Lifetime | 5000h |
Lead Pitch | 7.5mm |
Equivalent Series Resistance | 1.3Ω |
Ripple Current | 2280mArms |
Tolerance | ±20% |
Series | GPA |
Leakage Current | 4 μA |
