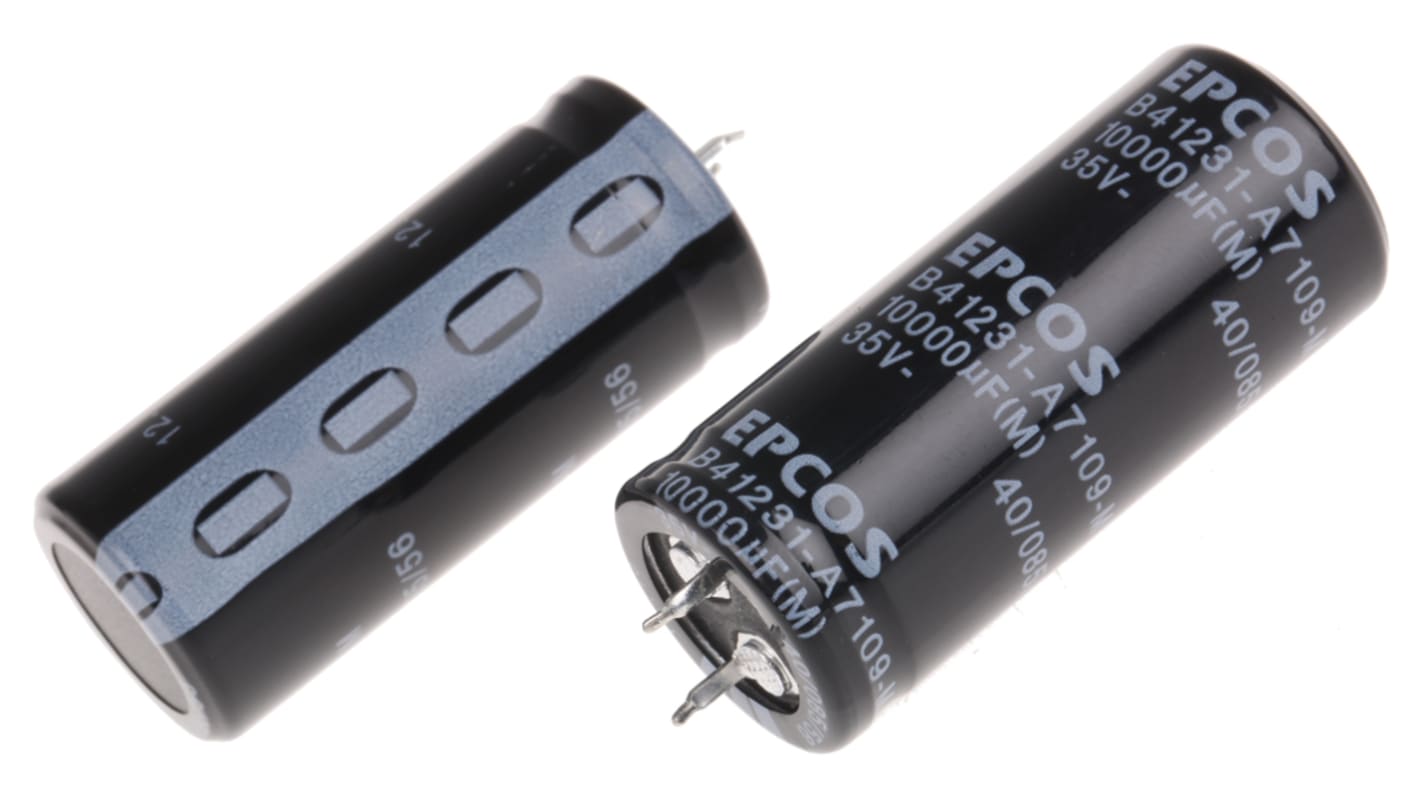

Epcos 10000μF Aluminium Electrolytic Capacitor 35V dc, Snap-In - B41231A7109M000
- RS Stock No.:
- 771-4762
- Mfr. Part No.:
- B41231A7109M000
- Brand:
- EPCOS
216 In stock - FREE next working day delivery available
54 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 2)
£2.62
(exc. VAT)
£3.14
(inc. VAT)
| Units | Per unit | Per Pack* |
| 2 - 18 | £2.62 | £5.24 |
| 20 - 98 | £1.84 | £3.68 |
| 100 - 198 | £1.36 | £2.72 |
| 200 + | £1.32 | £2.64 |
| *price indicative | ||
- RS Stock No.:
- 771-4762
- Mfr. Part No.:
- B41231A7109M000
- Brand:
- EPCOS
Technical Reference
Legislation and Compliance
Product Details
B41231 Series
Aluminium housing, fully insulated
Snap-in, self-retaining solder terminals
Negative pole labelling on the housing cover
Negative pole not insulated from the housing
Uniform pitch 10mm
Operating temperature -40 to +85°C
Snap-in, self-retaining solder terminals
Negative pole labelling on the housing cover
Negative pole not insulated from the housing
Uniform pitch 10mm
Operating temperature -40 to +85°C
Specifications
Attribute | Value |
|---|---|
| Capacitance | 10000µF |
| Voltage | 35V dc |
| Mounting Type | Snap-In |
| Technology | Aluminium Electrolytic |
| Dimensions | 22 (Dia.) x 50mm |
| Height | 50mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 22mm |
| Maximum Operating Temperature | +85°C |
| Lifetime | 2000h |
| Lead Pitch | 10mm |
| Series | B41231 |
| Ripple Current | 4.68A |
| Tolerance | ±20% |
| Leakage Current | <=0.02 μA |
