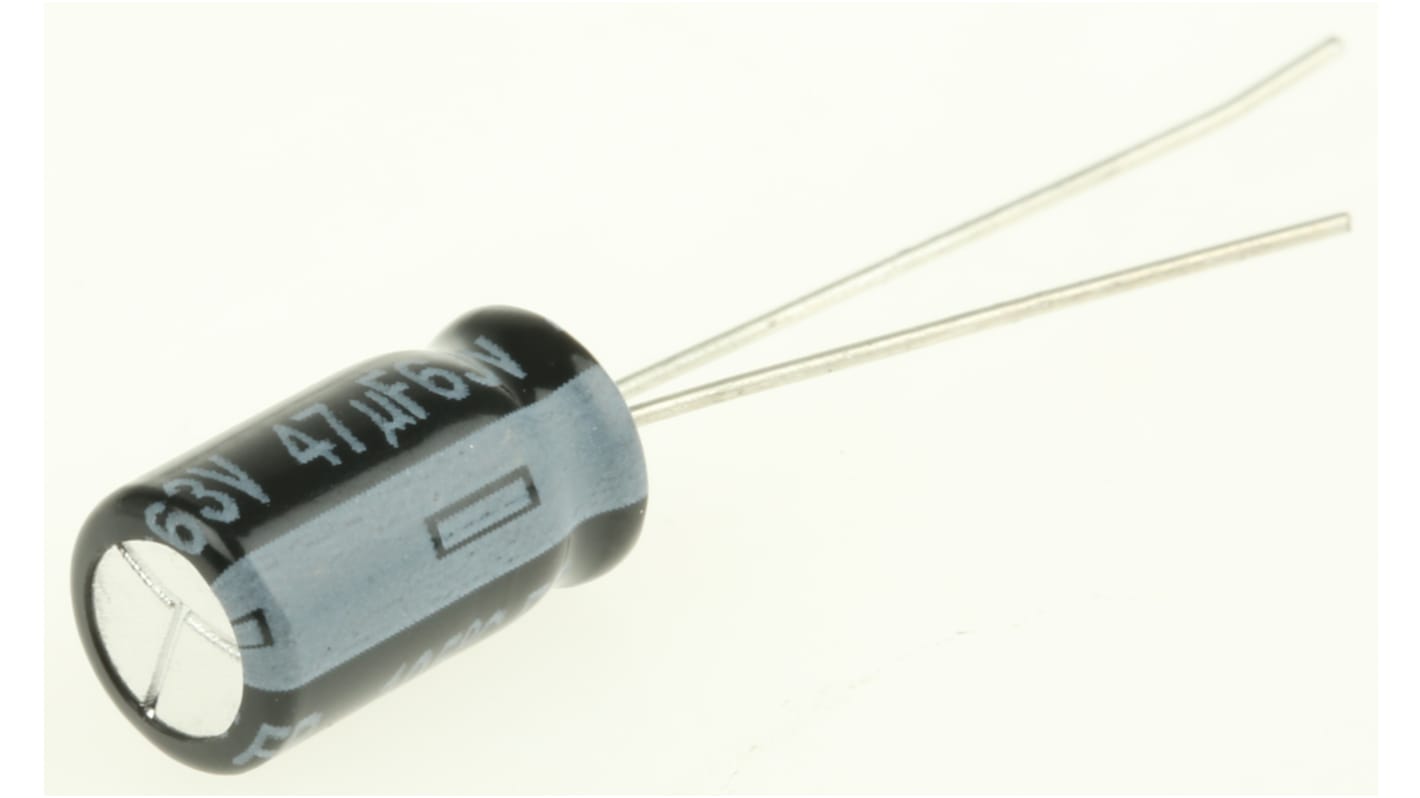

Panasonic 47μF Aluminium Electrolytic Aluminium Electrolytic Capacitor 63V dc, Radial, Through Hole - EEUFR1J470
- RS Stock No.:
- 756-8314P
- Mfr. Part No.:
- EEUFR1J470
- Brand:
- Panasonic
Bulk discount available
Subtotal 100 units (supplied in a bag)*
£16.80
(exc. VAT)
£20.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 350 unit(s) ready to ship
- Plus 2,200 unit(s) shipping from 01 December 2025
- Plus 7,000 unit(s) shipping from 02 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 100 - 225 | £0.168 |
| 250 - 475 | £0.159 |
| 500 - 975 | £0.147 |
| 1000 + | £0.135 |
*price indicative
- RS Stock No.:
- 756-8314P
- Mfr. Part No.:
- EEUFR1J470
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 47µF | |
| Voltage | 63V dc | |
| Mounting Type | Radial, Through Hole | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 6.3 x 11.2mm | |
| Height | 11.2mm | |
| Length | 11.2mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 6.3mm | |
| Maximum Operating Temperature | +105°C | |
| Lifetime | 5000h | |
| Lead Pitch | 2.5mm | |
| Leakage Current | ≤0.01 CV (After 2 min) μA | |
| Ripple Current | 284mArms | |
| Polarised | Polar | |
| Tolerance | ±20% | |
| Equivalent Series Resistance | 210mΩ | |
| Series | FR-A | |
| Dissipation Factor | 200% | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 47µF | ||
Voltage 63V dc | ||
Mounting Type Radial, Through Hole | ||
Technology Aluminium Electrolytic | ||
Dimensions 6.3 x 11.2mm | ||
Height 11.2mm | ||
Length 11.2mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 6.3mm | ||
Maximum Operating Temperature +105°C | ||
Lifetime 5000h | ||
Lead Pitch 2.5mm | ||
Leakage Current ≤0.01 CV (After 2 min) μA | ||
Ripple Current 284mArms | ||
Polarised Polar | ||
Tolerance ±20% | ||
Equivalent Series Resistance 210mΩ | ||
Series FR-A | ||
Dissipation Factor 200% | ||
FR Series 35 V to 63 V
Panasonic FR Series Type A electrolytic capacitors feature low ESR (in line with the FM series). These radial capacitors have excellent endurance at +105°C between 5000 hours and 10000 hours (dependent on case size).
High reliability
Long life
Low impedance
High ripple current
Long life
Low impedance
High ripple current
Applications
Panasonic FR Series Type A electrolytic capacitors are recommended for use in industrial instruments due to their high reliability. Please note, they are not suitable for automotive applications.
