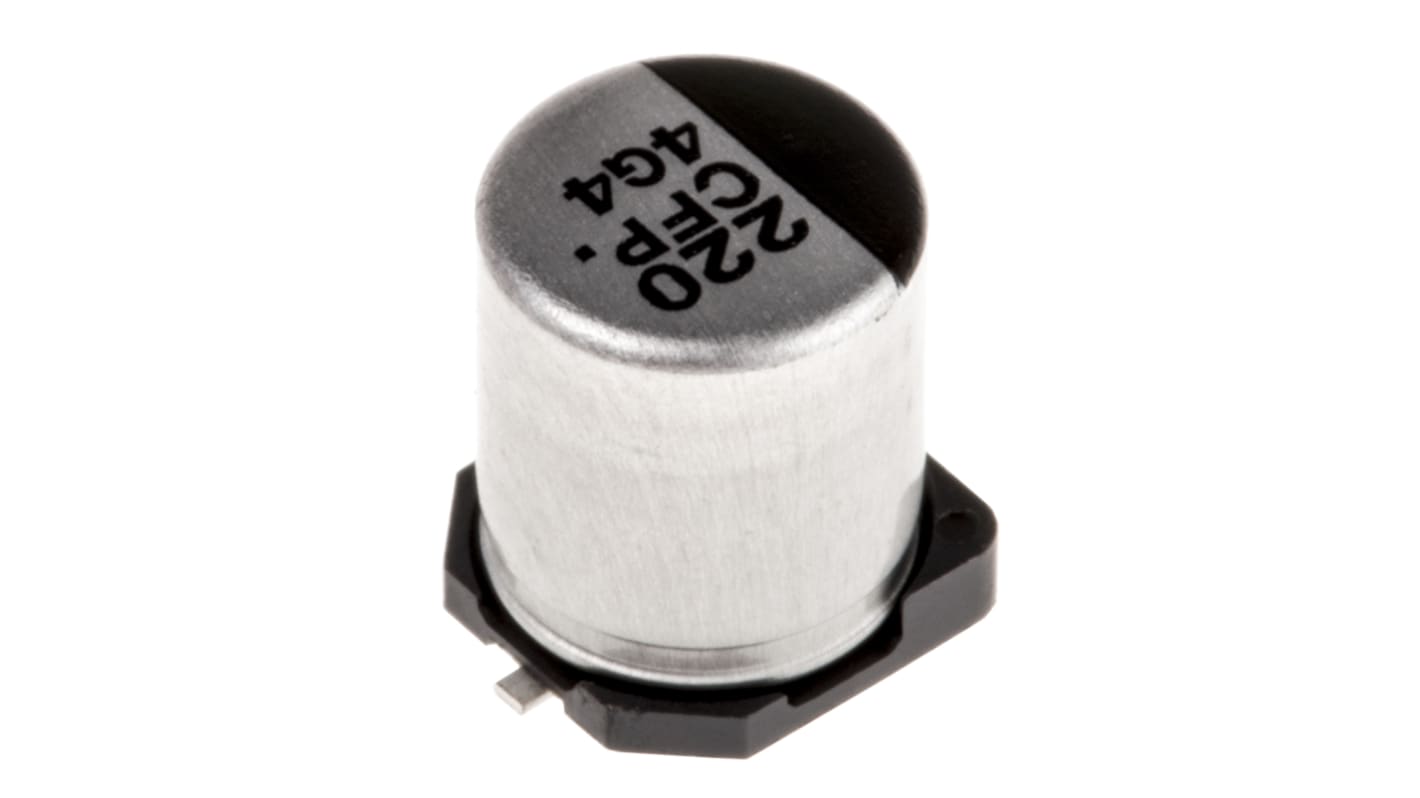

Panasonic 220μF Aluminium Electrolytic Capacitor 16V dc, Surface Mount - EEEFPC221XAP
- RS Stock No.:
- 747-9188
- Mfr. Part No.:
- EEEFPC221XAP
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 reel of 900 units)*
£149.40
(exc. VAT)
£179.10
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8,100 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 900 - 900 | £0.166 | £149.40 |
| 1800 - 3600 | £0.162 | £145.80 |
| 4500 - 8100 | £0.158 | £142.20 |
| 9000 + | £0.154 | £138.60 |
*price indicative
- RS Stock No.:
- 747-9188
- Mfr. Part No.:
- EEEFPC221XAP
- Brand:
- Panasonic
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 220µF | |
| Voltage | 16V dc | |
| Mounting Type | Surface Mount | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 6.3 (Dia.) x 7.7mm | |
| Height | 7.7mm | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 6.3mm | |
| Maximum Operating Temperature | +105°C | |
| Lifetime | 2000h | |
| Equivalent Series Resistance | 160mΩ | |
| Tolerance | ±20% | |
| Series | FP SMD | |
| Polarised | Polar | |
| Leakage Current | 0.01 CV or 3 μA | |
| Ripple Current | 600mA | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 220µF | ||
Voltage 16V dc | ||
Mounting Type Surface Mount | ||
Technology Aluminium Electrolytic | ||
Dimensions 6.3 (Dia.) x 7.7mm | ||
Height 7.7mm | ||
Minimum Operating Temperature -55°C | ||
Diameter 6.3mm | ||
Maximum Operating Temperature +105°C | ||
Lifetime 2000h | ||
Equivalent Series Resistance 160mΩ | ||
Tolerance ±20% | ||
Series FP SMD | ||
Polarised Polar | ||
Leakage Current 0.01 CV or 3 μA | ||
Ripple Current 600mA | ||
