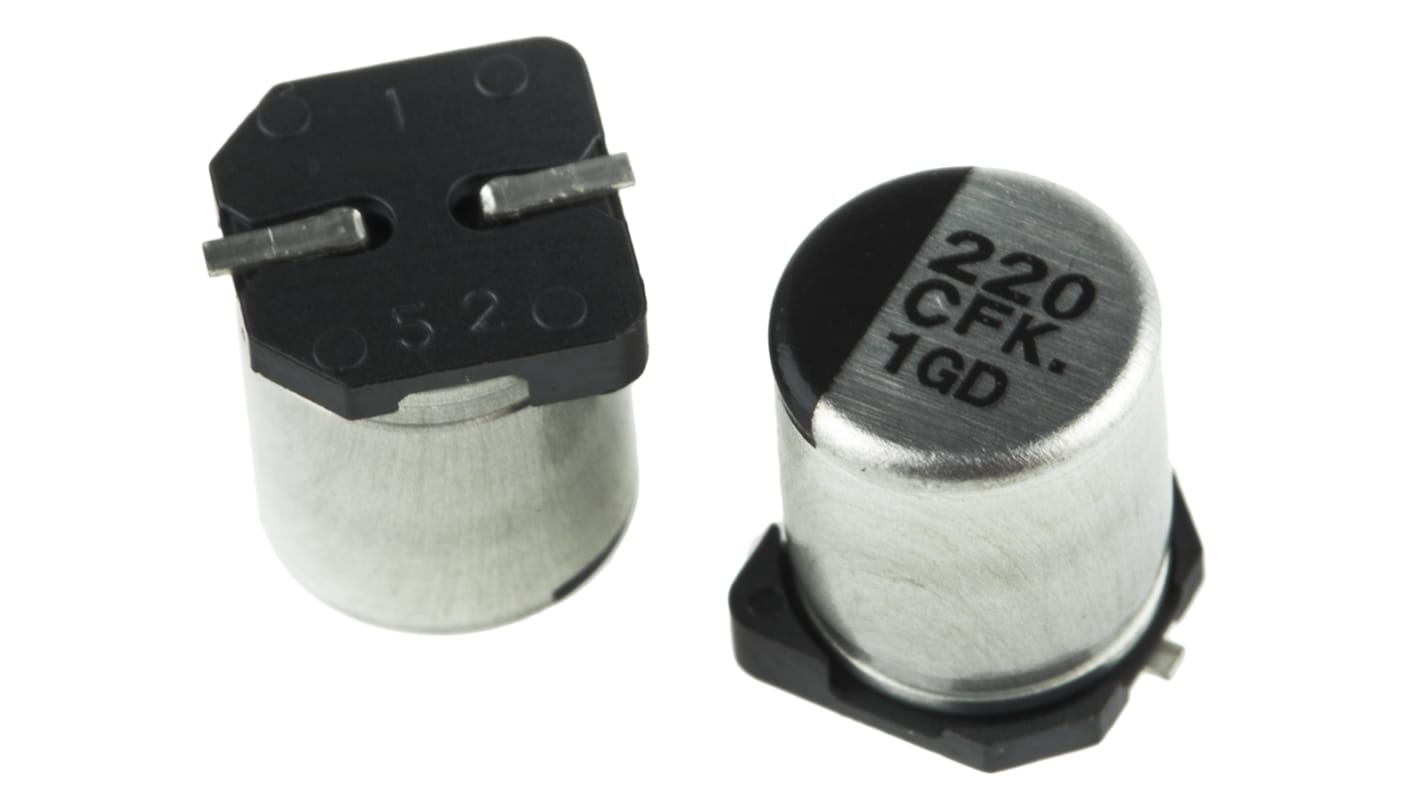

Panasonic 220μF Aluminium Electrolytic Capacitor 16V dc, Surface Mount - EEEFKC221XAP
- RS Stock No.:
- 747-8930
- Mfr. Part No.:
- EEEFKC221XAP
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 reel of 900 units)*
£158.40
(exc. VAT)
£189.90
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
| Units | Per unit | Per Reel* |
|---|---|---|
| 900 - 900 | £0.176 | £158.40 |
| 1800 - 3600 | £0.171 | £153.90 |
| 4500 - 8100 | £0.167 | £150.30 |
| 9000 + | £0.163 | £146.70 |
*price indicative
- RS Stock No.:
- 747-8930
- Mfr. Part No.:
- EEEFKC221XAP
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
| Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 220µF | |
| Voltage | 16V dc | |
| Mounting Type | Surface Mount | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 6.3 (Dia.) x 7.7mm | |
| Height | 7.7mm | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 6.3mm | |
| Maximum Operating Temperature | +105°C | |
| Lifetime | 2000h | |
| Lead Pitch | 1.8mm | |
| Series | FK SMD | |
| Equivalent Series Resistance | 340mΩ | |
| Tolerance | ±20% | |
| Ripple Current | 280mA | |
| Automotive Standard | AEC-Q200 | |
| Leakage Current | 35.2 μA | |
| Polarised | Polar | |
| Select all | ||
|---|---|---|
| Brand Panasonic | ||
| Capacitance 220µF | ||
| Voltage 16V dc | ||
| Mounting Type Surface Mount | ||
| Technology Aluminium Electrolytic | ||
| Dimensions 6.3 (Dia.) x 7.7mm | ||
| Height 7.7mm | ||
| Minimum Operating Temperature -55°C | ||
| Diameter 6.3mm | ||
| Maximum Operating Temperature +105°C | ||
| Lifetime 2000h | ||
| Lead Pitch 1.8mm | ||
| Series FK SMD | ||
| Equivalent Series Resistance 340mΩ | ||
| Tolerance ±20% | ||
| Ripple Current 280mA | ||
| Automotive Standard AEC-Q200 | ||
| Leakage Current 35.2 μA | ||
| Polarised Polar | ||
FK Series reels
Offered in a full reel, the FK series of aluminium electrolytic capacitors from Panasonic are a miniaturised version of the FC series, featuring impedance values 40-60% less than the FC series.  These electrolytic capacitors have a long life of up to 5000 hours and are AEC-Q200 qualified, making them suitable for automotive applications.  Part numbers with an A* suffix are able to withstand high reflow temperatures for extended periods.
