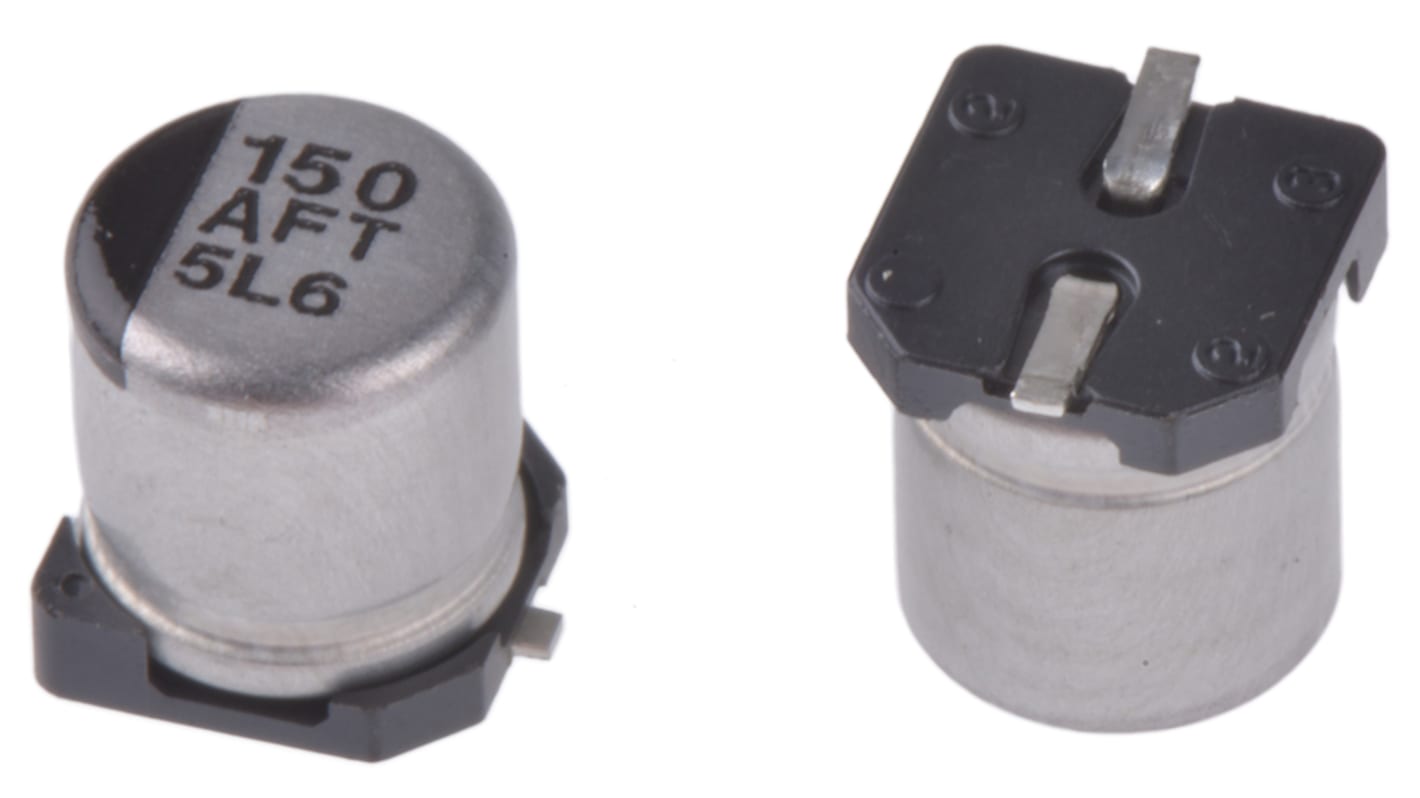

Panasonic 150μF Aluminium Electrolytic Capacitor 10V dc, Surface Mount - EEEFT1A151AR
- RS Stock No.:
- 747-2465
- Mfr. Part No.:
- EEEFT1A151AR
- Brand:
- Panasonic
Subtotal (1 pack of 10 units)*
£2.19
(exc. VAT)
£2.63
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship
- Plus 2,430 unit(s) shipping from 09 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £0.219 | £2.19 |
*price indicative
- RS Stock No.:
- 747-2465
- Mfr. Part No.:
- EEEFT1A151AR
- Brand:
- Panasonic
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 150µF | |
| Voltage | 10V dc | |
| Mounting Type | Surface Mount | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 5 (Dia.) x 5.8mm | |
| Height | 5.8mm | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 5mm | |
| Maximum Operating Temperature | +105°C | |
| Lead Pitch | 1.5mm | |
| Lifetime | 2000h | |
| Ripple Current | 240mA | |
| Automotive Standard | AEC-Q200 | |
| Equivalent Series Resistance | 360mΩ | |
| Series | FT SMD | |
| Tolerance | ±20% | |
| Leakage Current | 15 μA | |
| Polarised | Polar | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 150µF | ||
Voltage 10V dc | ||
Mounting Type Surface Mount | ||
Technology Aluminium Electrolytic | ||
Dimensions 5 (Dia.) x 5.8mm | ||
Height 5.8mm | ||
Minimum Operating Temperature -55°C | ||
Diameter 5mm | ||
Maximum Operating Temperature +105°C | ||
Lead Pitch 1.5mm | ||
Lifetime 2000h | ||
Ripple Current 240mA | ||
Automotive Standard AEC-Q200 | ||
Equivalent Series Resistance 360mΩ | ||
Series FT SMD | ||
Tolerance ±20% | ||
Leakage Current 15 μA | ||
Polarised Polar | ||
