- RS Stock No.:
- 744-2029
- Mfr. Part No.:
- EEUHD1C103
- Brand:
- Panasonic
102 In stock - FREE next working day delivery available
1 available from Europe for delivery within 1 working day(s).
Added
Price Each
£2.80
(exc. VAT)
£3.36
(inc. VAT)
Units | Per unit |
1 - 9 | £2.80 |
10 - 49 | £1.99 |
50 - 99 | £1.87 |
100 + | £1.48 |
- RS Stock No.:
- 744-2029
- Mfr. Part No.:
- EEUHD1C103
- Brand:
- Panasonic
Technical Reference
Legislation and Compliance
Product Details

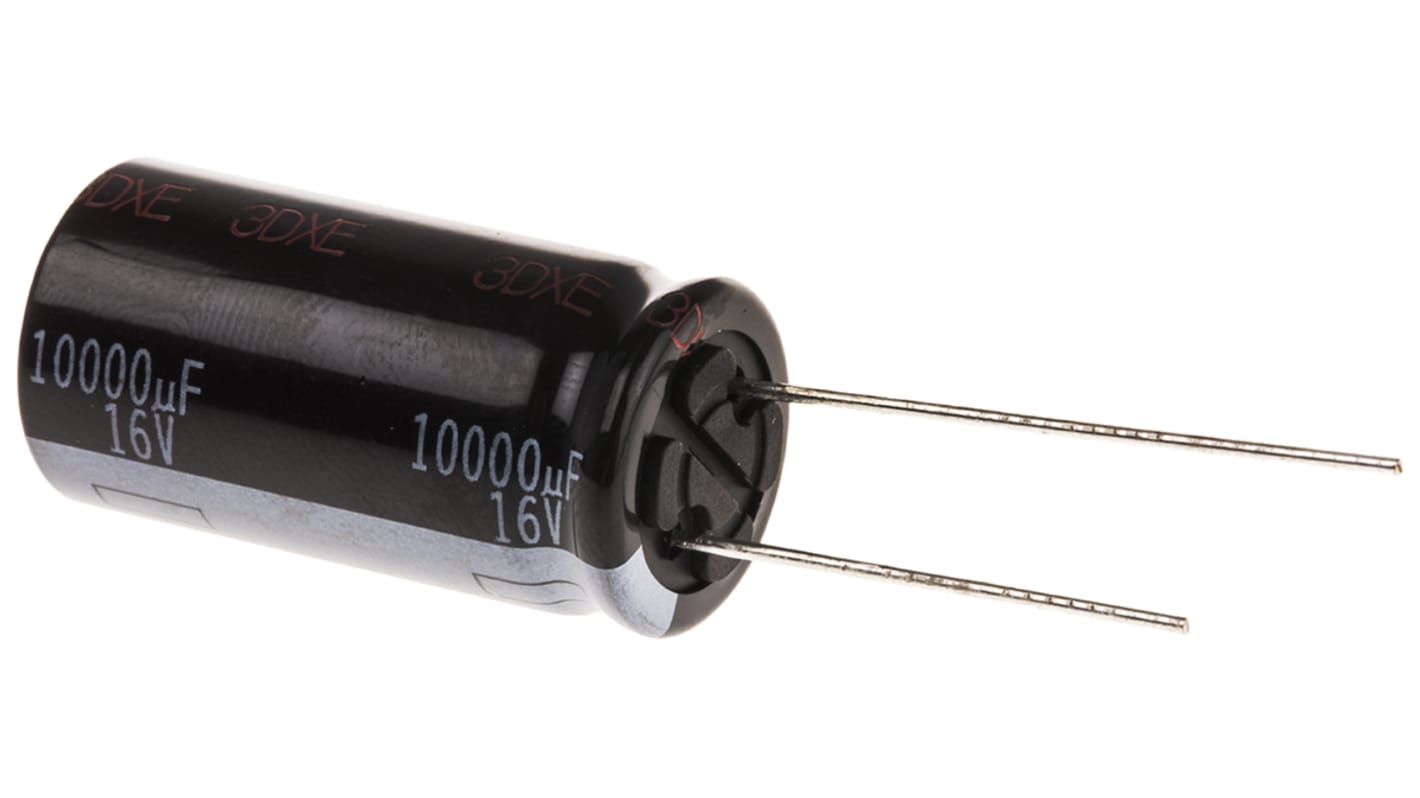

HD Series Panasonic
Panasonic HD Series Type A electrolytic capacitors feature excellent endurance of 1000 hours to 2000 hours at +105°C (dependent on case size). These radial capacitors are a miniaturised version of the NHG-A series.
Radial lead type
High reliability
Long life
Low impedance
High ripple current
High reliability
Long life
Low impedance
High ripple current
Applications
Panasonic HD Series Type A electrolytic capacitors are ideal for use in industrial instruments due to their high reliability.
Specifications
Attribute | Value |
---|---|
Capacitance | 10000µF |
Voltage | 16V dc |
Mounting Type | Radial, Through Hole |
Technology | Aluminium Electrolytic |
Dimensions | 16 (Dia.) x 31.5mm |
Height | 31.5mm |
Minimum Operating Temperature | -55°C |
Diameter | 16mm |
Maximum Operating Temperature | +105°C |
Lead Pitch | 7.5mm |
Lifetime | 2000h |
Tolerance | ±20% |
Leakage Current | <=0.01 CV or 3 μA @ 2 min |
Polarised | Polar |
Series | HD RADIAL |
Ripple Current | 2.06A |
