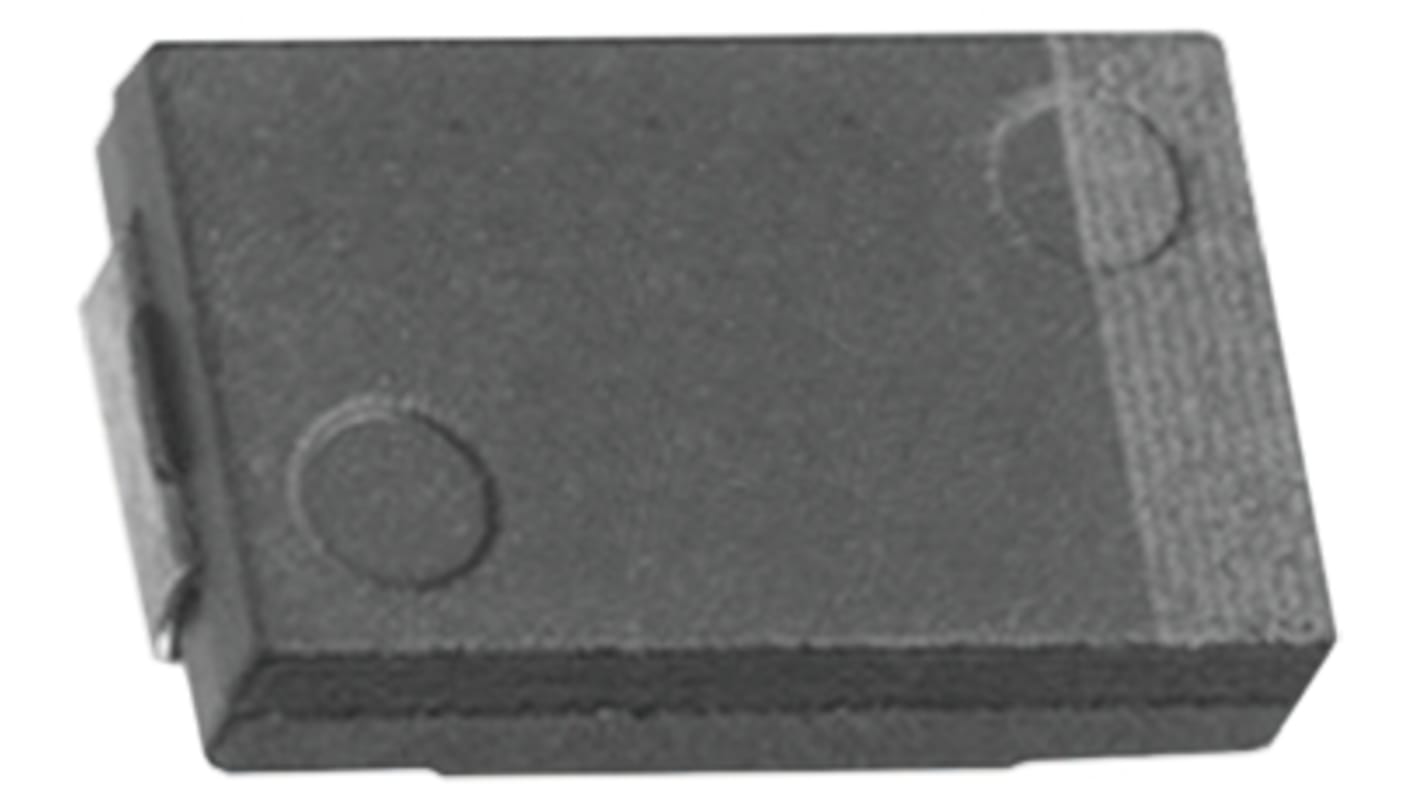

Panasonic CS, CT, CX Series Surface Mount Type SP-Cap Conductive Polymer Aluminium Capacitors.
The SP-CAP layered aluminium technology now provides an even lower profile and high stable capacitance at higher frequencies and temperatures. SP-Caps are ideal for A/V, PC and hand held consumer applications. These parts are suited for applications where the capacitor must meet strict height restrictions.
Features & Benefits:
CX, CT and CX series are Low Profile High-Voltage products: 10 V dc to 35 V dc They have high Ripple Current Temperature Range: -55°C to +105°C Nominal Capacitor Range: 10 μF to 100 μF Capacitance Tolerance: ±20% RoHS directive compliant Low profile (1.1 mm, 1.4 mm, 1.9 mm height)
Attribute
Value
Capacitance
150µF
Voltage
6.3V dc
Mounting Type
Surface Mount
Technology
Polymer
Dimensions
7.3 x 4.3 x 1.9mm
Height
1.9mm
Length
7.3mm
Depth
4.3mm
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+105°C
Lead Pitch
1.3mm
Lifetime
1000h
Tolerance
±20%
Series
SP-Cap CX
Leakage Current
94.5 μA
Ripple Current
3A
Equivalent Series Resistance
12mΩ
Polarised
Polar
