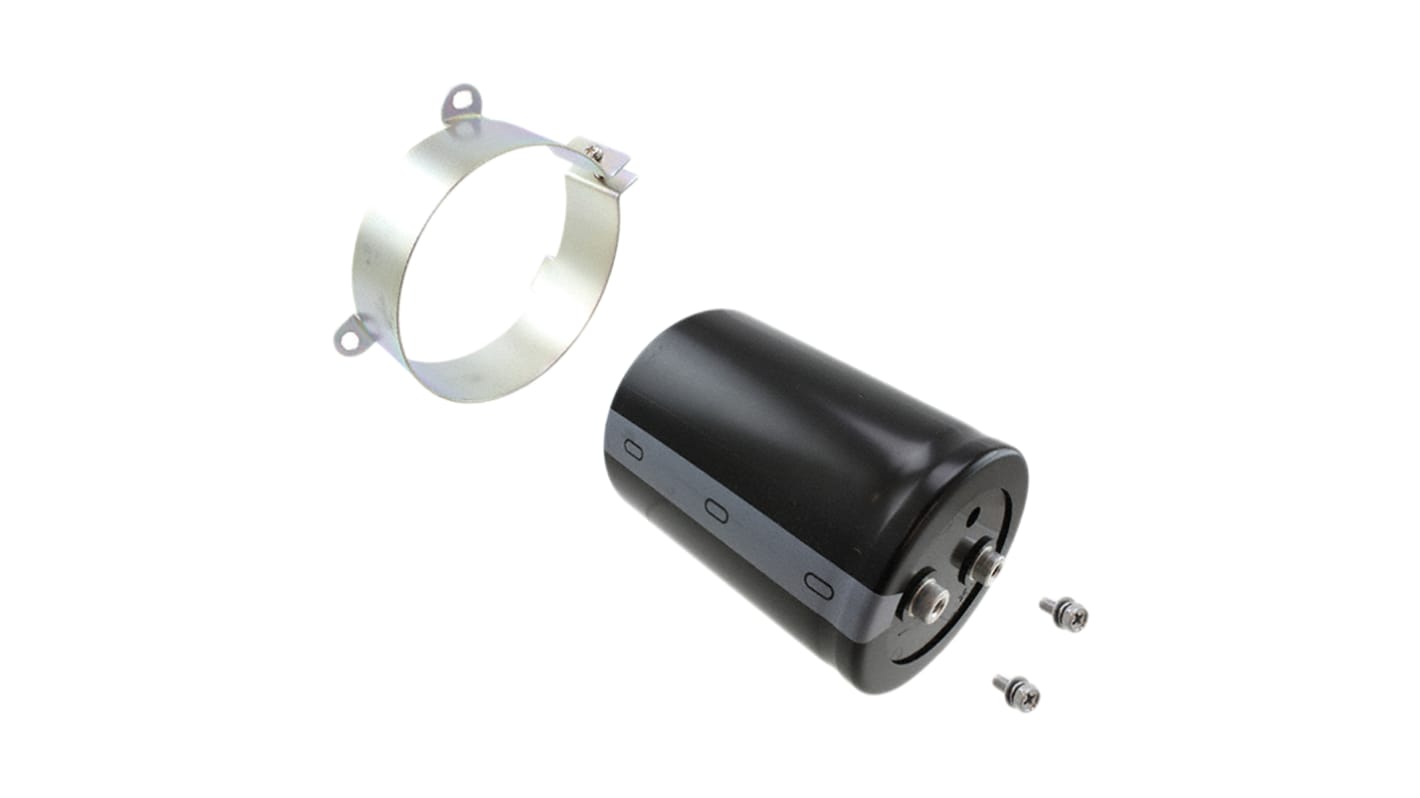

Nichicon 4700μF Aluminium Electrolytic Capacitor 450V dc, Screw Terminal - LNY2W472MSEH
- RS Stock No.:
- 714-8720
- Mfr. Part No.:
- LNY2W472MSEH
- Brand:
- Nichicon
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Added
Price Each
£60.84
(exc. VAT)
£73.01
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £60.84 |
| 5 - 9 | £57.18 |
| 10 - 24 | £53.54 |
| 25 + | £50.13 |
- RS Stock No.:
- 714-8720
- Mfr. Part No.:
- LNY2W472MSEH
- Brand:
- Nichicon
Technical Reference
Legislation and Compliance
Product Details
Nichicon NY Series
Nichicon NY Series aluminium electrolytic capacitors are screw terminal clamp fixing capacitors that offer a wide operating temperature range, rated capacitance range of 620 to 22000μF, high ripple current, and a load life of 2000 hours. These NY electrolytic capacitors are suited for use in industrial power supplies for inverter circuitry.
Load life of 2000 hours
High ripple current
Flame retardant
High ripple current
Flame retardant
Clamp-fixing +85°C
Ideal for computer power supply applications or other applications that require long operational life
Specifications
Attribute | Value |
|---|---|
| Capacitance | 4700µF |
| Voltage | 450V dc |
| Mounting Type | Screw Terminal |
| Technology | Aluminium Electrolytic |
| Dimensions | 76.2 (Dia.) x 105mm |
| Height | 105mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 76.2mm |
| Maximum Operating Temperature | +85°C |
| Lifetime | 2000h |
| Series | LNY |
| Tolerance | ±20% |
| Ripple Current | 15.6A |
| Leakage Current | 4360 μA |
