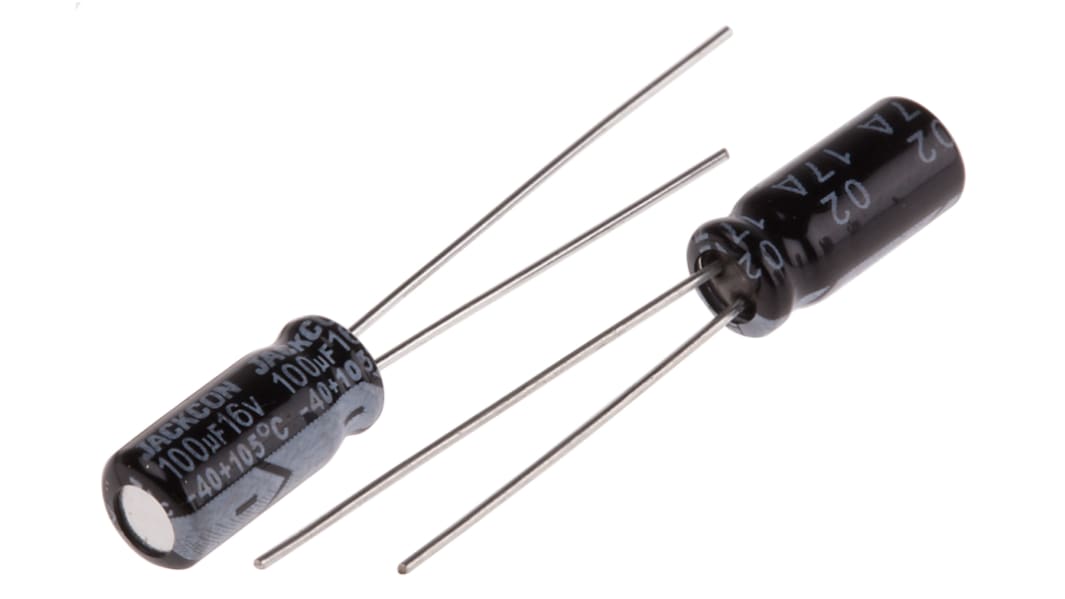

RS PRO 100μF Aluminium Electrolytic Capacitor 16V dc, Radial, Through Hole
- RS Stock No.:
- 711-0930
- Distrelec Article No.:
- 304-25-749
- Brand:
- RS PRO
1 / 2
Bulk discount available
Subtotal (1 pack of 100 units)**
£6.50
(exc. VAT)
£7.80
(inc. VAT)
1200 In stock - FREE next working day delivery available*
1500 available from Europe for delivery within 2 working day(s).
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over £50.00
Check stock levels
Units | Per unit | Per Pack** |
|---|---|---|
| 100 - 400 | £0.065 | £6.50 |
| 500 - 900 | £0.06 | £6.00 |
| 1000 - 2400 | £0.055 | £5.50 |
| 2500 - 4900 | £0.053 | £5.30 |
| 5000 + | £0.048 | £4.80 |
**price indicative
- RS Stock No.:
- 711-0930
- Distrelec Article No.:
- 304-25-749
- Brand:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Capacitance | 100µF | |
| Voltage | 16V dc | |
| Mounting Type | Radial, Through Hole | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 5 (Dia.) x 11mm | |
| Height | 11mm | |
| Length | 11mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 5mm | |
| Maximum Operating Temperature | 105°C | |
| Lifetime | 1000h | |
| Lead Pitch | 2mm | |
| Ripple Current | 115mA | |
| Polarised | Polar | |
| Series | RS | |
| Leakage Current | <=0.01 CV or 3 μA @ 1 min | |
| Tolerance | ±20% | |
| Dissipation Factor | 16% | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Capacitance 100µF | ||
Voltage 16V dc | ||
Mounting Type Radial, Through Hole | ||
Technology Aluminium Electrolytic | ||
Dimensions 5 (Dia.) x 11mm | ||
Height 11mm | ||
Length 11mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 5mm | ||
Maximum Operating Temperature 105°C | ||
Lifetime 1000h | ||
Lead Pitch 2mm | ||
Ripple Current 115mA | ||
Polarised Polar | ||
Series RS | ||
Leakage Current <=0.01 CV or 3 μA @ 1 min | ||
Tolerance ±20% | ||
Dissipation Factor 16% | ||
