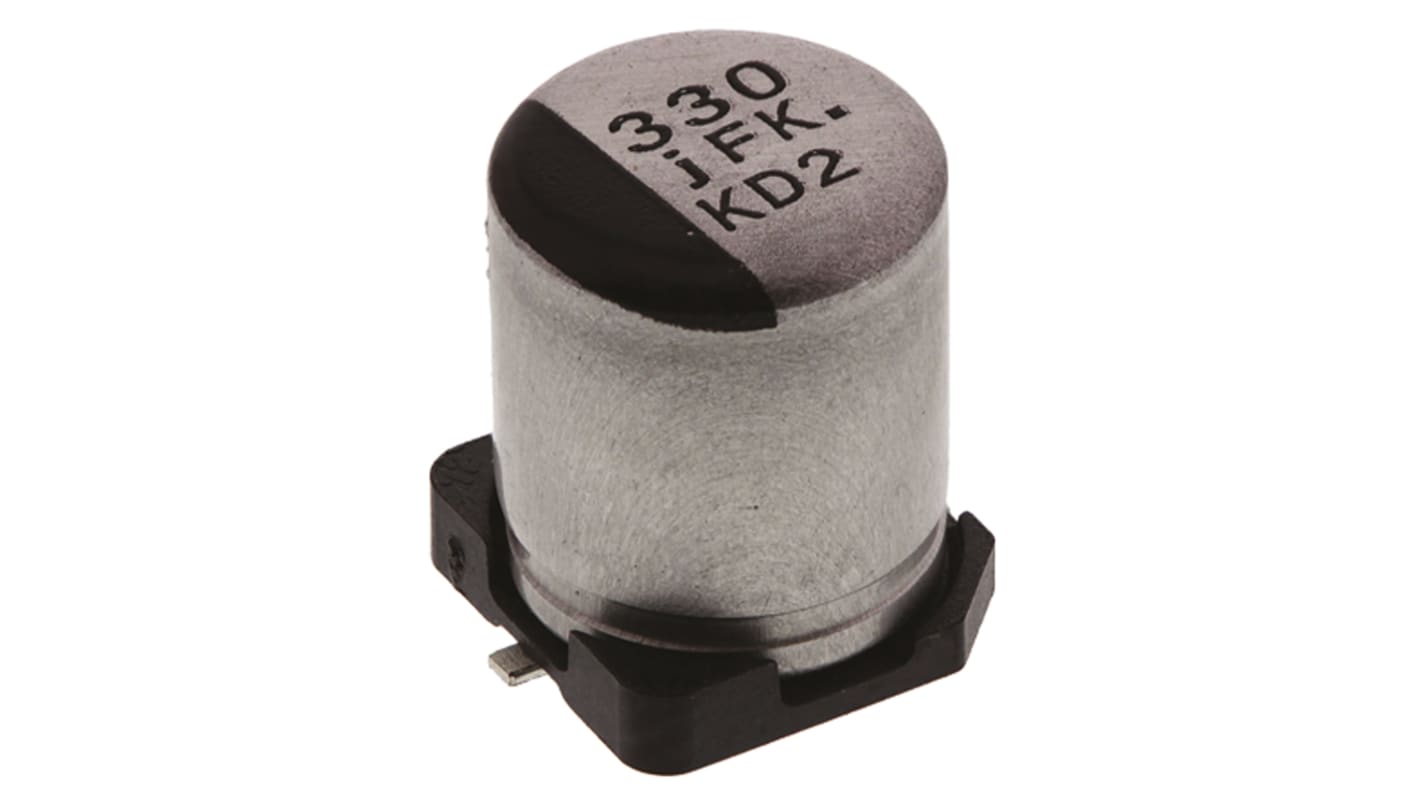

Panasonic 330μF Aluminium Electrolytic Capacitor 6.3V dc, Surface Mount - EEEFKJ331XAP
- RS Stock No.:
- 708-3771
- Mfr. Part No.:
- EEEFKJ331XAP
- Brand:
- Panasonic
550 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 10)
£0.306
(exc. VAT)
£0.367
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 - 40 | £0.306 | £3.06 |
| 50 - 90 | £0.284 | £2.84 |
| 100 - 240 | £0.266 | £2.66 |
| 250 - 490 | £0.248 | £2.48 |
| 500 + | £0.226 | £2.26 |
| *price indicative | ||
- RS Stock No.:
- 708-3771
- Mfr. Part No.:
- EEEFKJ331XAP
- Brand:
- Panasonic
Technical Reference
Legislation and Compliance
Product Details
FK Series reels
Offered in a full reel, the FK series of aluminium electrolytic capacitors from Panasonic are a miniaturised version of the FC series, featuring impedance values 40-60% less than the FC series. These electrolytic capacitors have a long life of up to 5000 hours and are AEC-Q200 qualified, making them suitable for automotive applications. Part numbers with an A* suffix are able to withstand high reflow temperatures for extended periods.
Specifications
Attribute | Value |
|---|---|
| Capacitance | 330µF |
| Voltage | 6.3V dc |
| Mounting Type | Surface Mount |
| Technology | Aluminium Electrolytic |
| Dimensions | 6.3 (Dia.) x 7.7mm |
| Height | 7.7mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 6.3mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 2000h |
| Leakage Current | 3 μA |
| Automotive Standard | AEC-Q200 |
| Polarised | Polar |
| Ripple Current | 280mA |
| Series | FK SMD |
| Tolerance | ±20% |
| Equivalent Series Resistance | 340mΩ |
