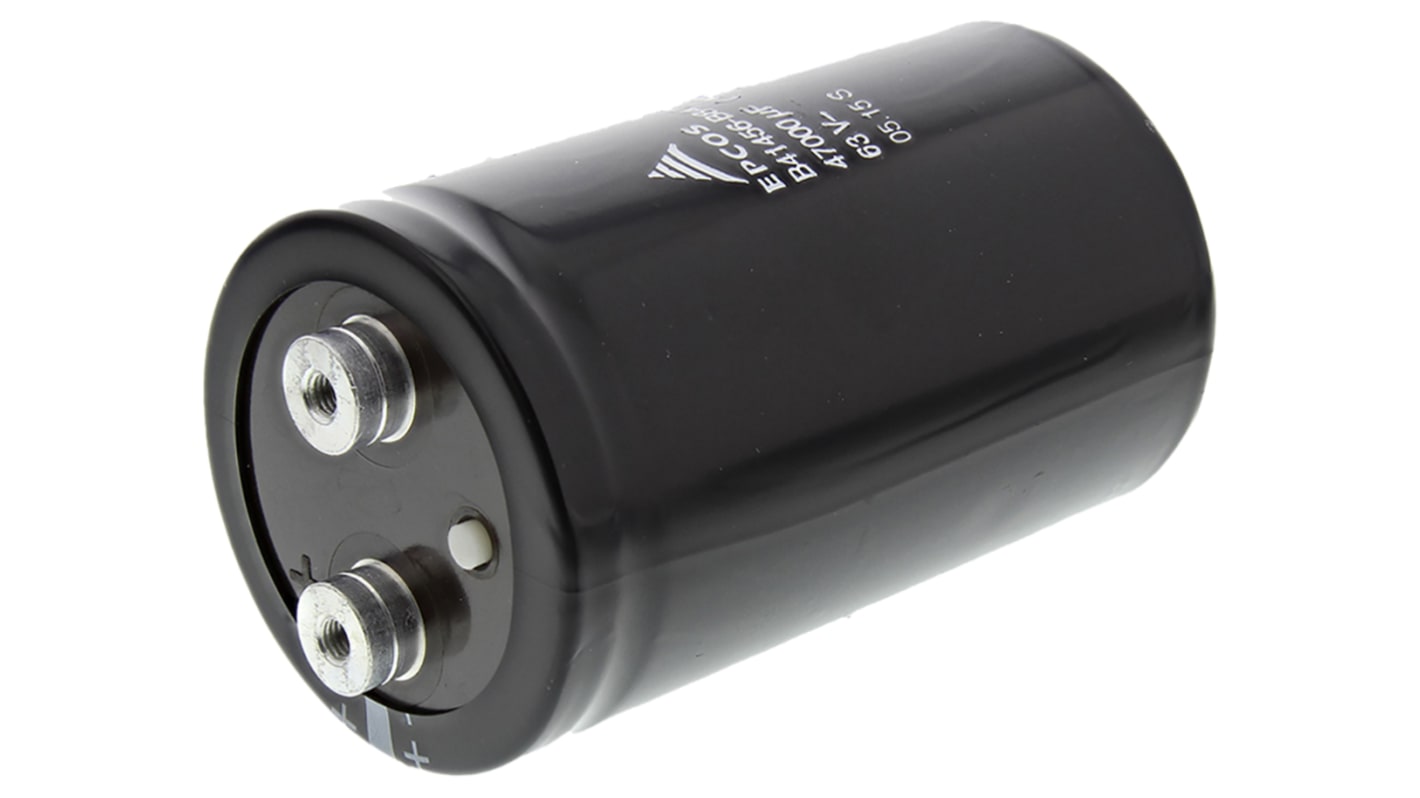

EPCOS 47000μF Aluminium Electrolytic Capacitor 63V dc, Screw Terminal - B41456B8479M600
- RS Stock No.:
- 543-6729P
- Mfr. Part No.:
- B41456B8479M000
- Brand:
- EPCOS
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 543-6729P
- Mfr. Part No.:
- B41456B8479M000
- Brand:
- EPCOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Capacitance | 47000µF | |
| Voltage | 63V dc | |
| Mounting Type | Screw Terminal | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 64.3 (Dia.) x 105.7mm | |
| Height | 105.7mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 64.3mm | |
| Maximum Operating Temperature | +85°C | |
| Lifetime | 12000h | |
| Tolerance | ±20% | |
| Ripple Current | 18A | |
| Series | B41456 | |
| Equivalent Series Resistance | 5mΩ | |
Select all | ||
|---|---|---|
Brand EPCOS | ||
Capacitance 47000µF | ||
Voltage 63V dc | ||
Mounting Type Screw Terminal | ||
Technology Aluminium Electrolytic | ||
Dimensions 64.3 (Dia.) x 105.7mm | ||
Height 105.7mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 64.3mm | ||
Maximum Operating Temperature +85°C | ||
Lifetime 12000h | ||
Tolerance ±20% | ||
Ripple Current 18A | ||
Series B41456 | ||
Equivalent Series Resistance 5mΩ | ||
B41456 Series
The B41456 series of aluminium capacitors from EPCOS has a charge-discharge proof construction with screw terminals. Reliable electrical contact is ensured by an all welded construction and these aluminium capacitors offer high ripple current capability and high reliability.
Features and Benefits:
Aluminium case with insulating PVC sleeve
Mounting with threaded stud, ring clips or clamps (not included)
Poles with screw terminal connections
Long life
Compact Design
High reliability
Product Applications:
Suitable applications for B41456 aluminium capacitors include professional equipment switch mode power supplies and industrial electronics.
Clamp-fixing +85°C
Ideal for computer power supply applications or other applications that require long operational life
