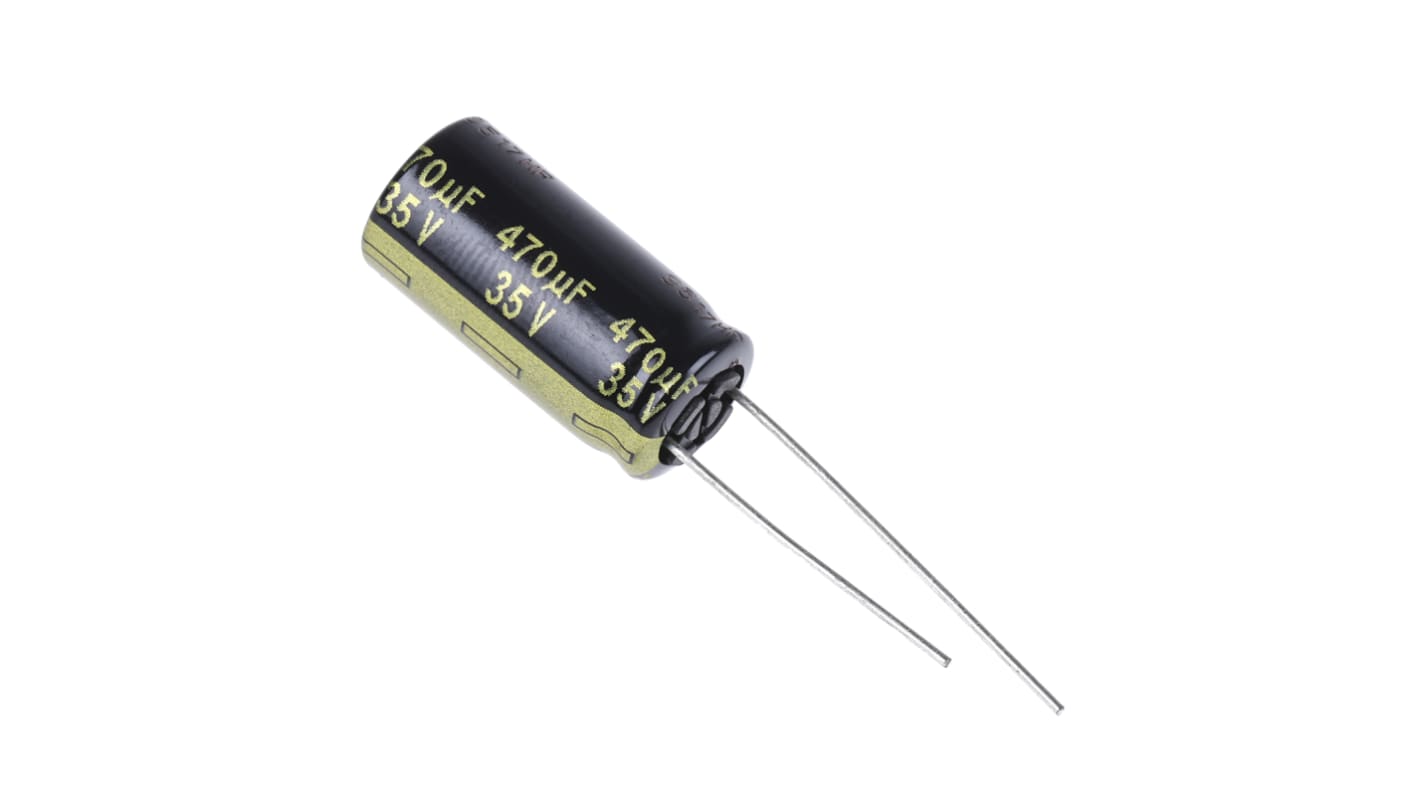

Panasonic 470μF Aluminium Electrolytic Aluminium Electrolytic Capacitor 35V dc, Radial, Through Hole - EEUFM1V471
- RS Stock No.:
- 526-1884P
- Mfr. Part No.:
- EEUFM1V471
- Brand:
- Panasonic
Bulk discount available
Subtotal 25 units (supplied in a bag)*
£12.65
(exc. VAT)
£15.175
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 995 unit(s) shipping from 01 December 2025
- Plus 6,200 unit(s) shipping from 19 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 25 - 45 | £0.506 |
| 50 - 95 | £0.476 |
| 100 - 245 | £0.442 |
| 250 + | £0.404 |
*price indicative
- RS Stock No.:
- 526-1884P
- Mfr. Part No.:
- EEUFM1V471
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 470µF | |
| Voltage | 35V dc | |
| Mounting Type | Radial, Through Hole | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 10 (Dia.) x 20mm | |
| Height | 20mm | |
| Length | 20mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 10mm | |
| Maximum Operating Temperature | +105°C | |
| Lifetime | 5000h | |
| Lead Pitch | 5mm | |
| Polarised | Polar | |
| Tolerance | ±20% | |
| Leakage Current | 164.5 μA | |
| Ripple Current | 2.18A | |
| Series | FM-A | |
| Dissipation Factor | 200% | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 470µF | ||
Voltage 35V dc | ||
Mounting Type Radial, Through Hole | ||
Technology Aluminium Electrolytic | ||
Dimensions 10 (Dia.) x 20mm | ||
Height 20mm | ||
Length 20mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 10mm | ||
Maximum Operating Temperature +105°C | ||
Lifetime 5000h | ||
Lead Pitch 5mm | ||
Polarised Polar | ||
Tolerance ±20% | ||
Leakage Current 164.5 μA | ||
Ripple Current 2.18A | ||
Series FM-A | ||
Dissipation Factor 200% | ||
FM Series 25 V to 50 V
Panasonic FM Series Type A electrolytic capacitors offer low impedance (40% to 70% less than the Panasonic FC series) and high endurance. At +105°C, the endurance is 2000 hours to 7000 hours (depending on case size).
High reliability
Long life
High ripple current
Long life
High ripple current
Applications
Panasonic FM Series Type A electrolytic capacitors are recommended for use in industrial instruments due to their high reliability. Please note, they are not suitable for automotive applications.
