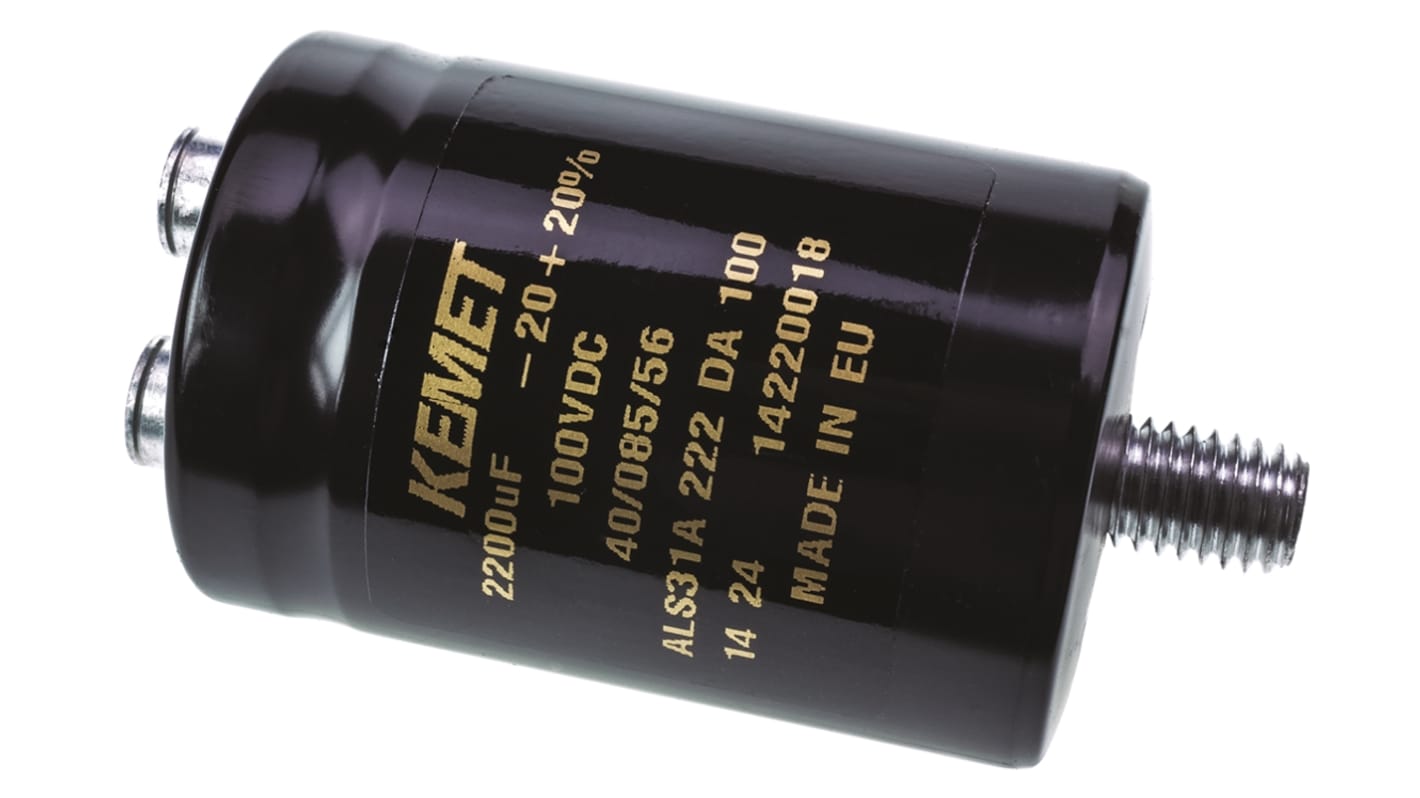

KEMET 2200μF Aluminium Electrolytic Capacitor 100V dc, Screw Terminal - ALS31A222DA100
- RS Stock No.:
- 381-9633
- Mfr. Part No.:
- ALS31A222DA100
- Brand:
- KEMET
Bulk discount available
Subtotal (1 unit)*
£10.21
(exc. VAT)
£12.25
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 100 unit(s) shipping from 03 December 2025
- Plus 100 unit(s) shipping from 30 December 2025
- Plus 150 unit(s) shipping from 13 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £10.21 |
| 10 - 24 | £9.59 |
| 25 - 49 | £8.99 |
| 50 - 99 | £8.37 |
| 100 + | £7.73 |
*price indicative
- RS Stock No.:
- 381-9633
- Mfr. Part No.:
- ALS31A222DA100
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Capacitance | 2200µF | |
| Voltage | 100V dc | |
| Mounting Type | Screw Terminal | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 36 (Dia.) x 52mm | |
| Height | 52mm | |
| Length | 52mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 36mm | |
| Maximum Operating Temperature | +85°C | |
| Lifetime | 11000 h @ +85 °C/100V dc/Ir, 22000 h @ +85 °C/100V dc | |
| Series | ALS31 | |
| Leakage Current | 1.32 mA | |
| Ripple Current | 4.9A | |
| Equivalent Series Resistance | 69mΩ | |
| Polarised | Polar | |
| Tolerance | ±20% | |
Select all | ||
|---|---|---|
Brand KEMET | ||
Capacitance 2200µF | ||
Voltage 100V dc | ||
Mounting Type Screw Terminal | ||
Technology Aluminium Electrolytic | ||
Dimensions 36 (Dia.) x 52mm | ||
Height 52mm | ||
Length 52mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 36mm | ||
Maximum Operating Temperature +85°C | ||
Lifetime 11000 h @ +85 °C/100V dc/Ir, 22000 h @ +85 °C/100V dc | ||
Series ALS31 | ||
Leakage Current 1.32 mA | ||
Ripple Current 4.9A | ||
Equivalent Series Resistance 69mΩ | ||
Polarised Polar | ||
Tolerance ±20% | ||
- COO (Country of Origin):
- PT
ALS31 Series
The ALS31 series of aluminium electrolytic capacitors from KEMET provide a long life, compact solution. Offering various voltage options and case sizes, these aluminium electrolytic capacitors are suited to industrial and commercial applications requiring long life expectancy and high reliability.
Features
Up to 20000 h life span at +85°C
High ripple current
High reliability
Excellent surge voltage capability
High CV volume combined with high ripple current handling capability
High ripple current
High reliability
Excellent surge voltage capability
High CV volume combined with high ripple current handling capability
Product Application Information
Suitable applications for these aluminium electrolytic capacitors include smoothing, energy storage and pulse operation in telecommunication demanding power supplies. These aluminium capacitors are ideal for AC motor control, process control, welding, traction and measuring.
Note
Terminal screws and fixing nut are not supplied
Standards
AEC-Q200
