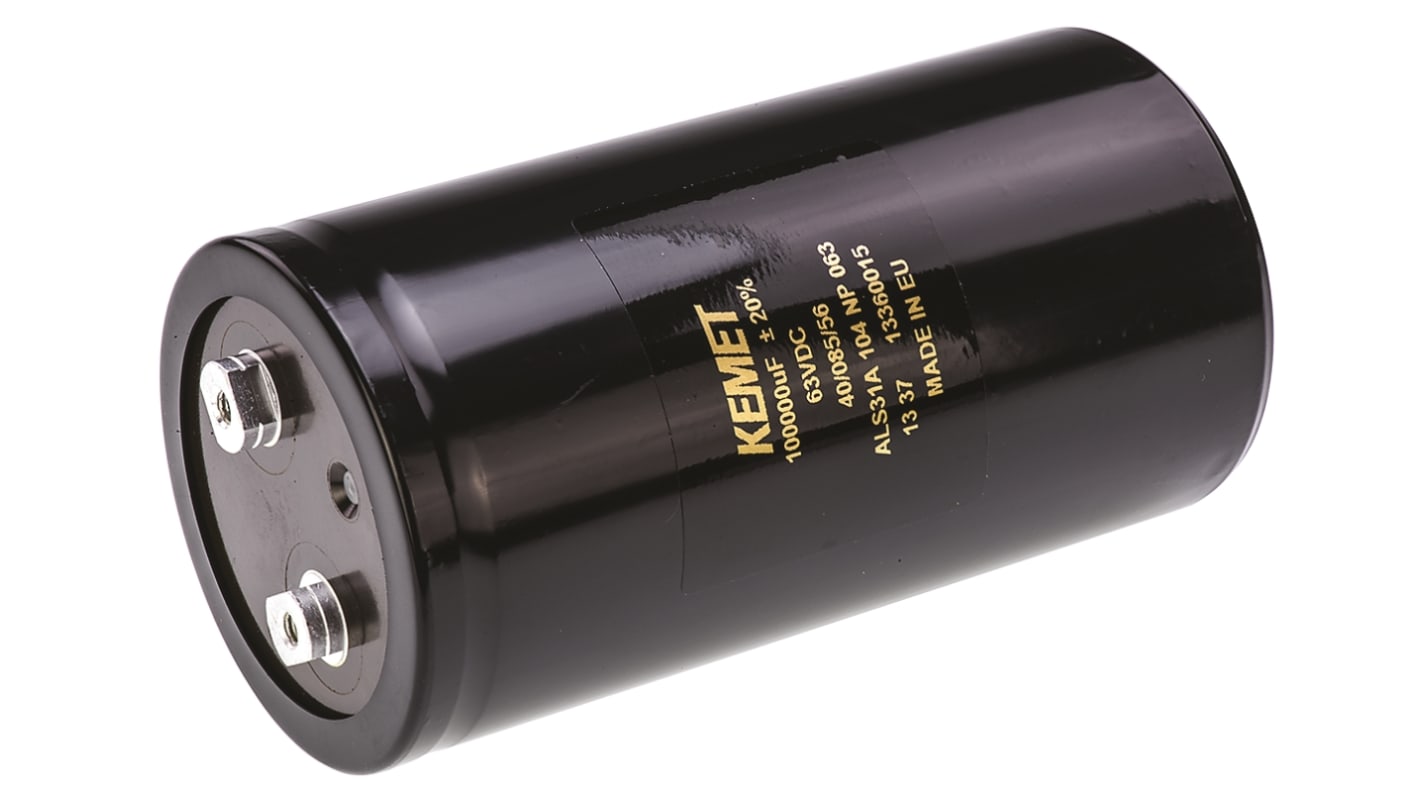

KEMET 0.1F Aluminium Electrolytic Capacitor 63V dc, Screw Terminal - ALS31A104NP063
- RS Stock No.:
- 381-9627
- Mfr. Part No.:
- ALS31A104NP063
- Brand:
- KEMET
Bulk discount available
Subtotal (1 unit)*
£75.33
(exc. VAT)
£90.40
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 91 unit(s) shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £75.33 |
| 5 - 9 | £73.22 |
| 10 - 24 | £71.26 |
| 25 - 49 | £69.38 |
| 50 + | £67.57 |
*price indicative
- RS Stock No.:
- 381-9627
- Mfr. Part No.:
- ALS31A104NP063
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Capacitance | 0.1F | |
| Voltage | 63V dc | |
| Mounting Type | Screw Terminal | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 77 (Dia.) x 146mm | |
| Height | 146mm | |
| Length | 146mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 77mm | |
| Maximum Operating Temperature | +85°C | |
| Lifetime | 20000 h @ +85 °C/63V dc/Ir, 40000 h @ +85 °C/63V dc | |
| Leakage Current | 6 mA | |
| Ripple Current | 34.8A | |
| Polarised | Polar | |
| Equivalent Series Resistance | 6mΩ | |
| Series | ALS31 | |
| Tolerance | ±20% | |
Select all | ||
|---|---|---|
Brand KEMET | ||
Capacitance 0.1F | ||
Voltage 63V dc | ||
Mounting Type Screw Terminal | ||
Technology Aluminium Electrolytic | ||
Dimensions 77 (Dia.) x 146mm | ||
Height 146mm | ||
Length 146mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 77mm | ||
Maximum Operating Temperature +85°C | ||
Lifetime 20000 h @ +85 °C/63V dc/Ir, 40000 h @ +85 °C/63V dc | ||
Leakage Current 6 mA | ||
Ripple Current 34.8A | ||
Polarised Polar | ||
Equivalent Series Resistance 6mΩ | ||
Series ALS31 | ||
Tolerance ±20% | ||
ALS31 Series
The ALS31 series of aluminium electrolytic capacitors from KEMET provide a long life, compact solution. Offering various voltage options and case sizes, these aluminium electrolytic capacitors are suited to industrial and commercial applications requiring long life expectancy and high reliability.
Features
Up to 20000 h life span at +85°C
High ripple current
High reliability
Excellent surge voltage capability
High CV volume combined with high ripple current handling capability
High ripple current
High reliability
Excellent surge voltage capability
High CV volume combined with high ripple current handling capability
Product Application Information
Suitable applications for these aluminium electrolytic capacitors include smoothing, energy storage and pulse operation in telecommunication demanding power supplies. These aluminium capacitors are ideal for AC motor control, process control, welding, traction and measuring.
Note
Terminal screws and fixing nut are not supplied
Standards
AEC-Q200
