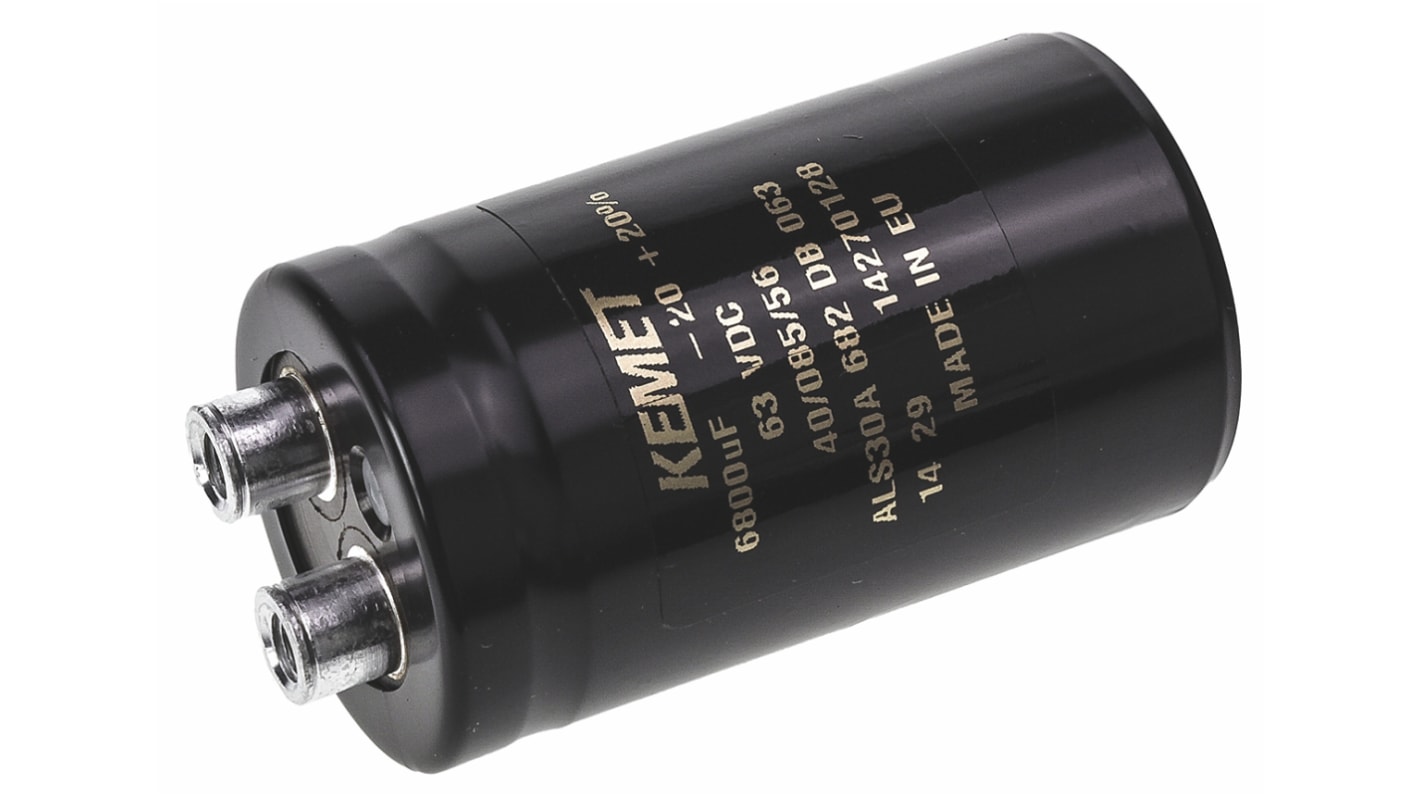

KEMET 6800μF Aluminium Electrolytic Capacitor 63V dc, Screw Terminal - ALS30A682DB063
- RS Stock No.:
- 381-9093
- Mfr. Part No.:
- ALS30A682DB063
- Brand:
- KEMET
Bulk discount available
Subtotal (1 unit)*
£11.35
(exc. VAT)
£13.62
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 50 unit(s) ready to ship
- Plus 15 unit(s) ready to ship from another location
- Plus 264 unit(s) shipping from 21 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £11.35 |
| 10 - 24 | £10.56 |
| 25 - 49 | £9.65 |
| 50 - 99 | £8.97 |
| 100 + | £8.53 |
*price indicative
- RS Stock No.:
- 381-9093
- Mfr. Part No.:
- ALS30A682DB063
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Capacitance | 6800µF | |
| Voltage | 63V dc | |
| Mounting Type | Screw Terminal | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 36 (Dia.) x 62mm | |
| Height | 62mm | |
| Length | 62mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 36mm | |
| Maximum Operating Temperature | +85°C | |
| Lifetime | 11000 h @ +85 °C/63V dc/Ir, 22000 h @ +85 °C/63V dc | |
| Series | ALS30 | |
| Leakage Current | 2.5704 mA | |
| Ripple Current | 8.2A | |
| Equivalent Series Resistance | 26mΩ | |
| Polarised | Polar | |
| Tolerance | ±20% | |
Select all | ||
|---|---|---|
Brand KEMET | ||
Capacitance 6800µF | ||
Voltage 63V dc | ||
Mounting Type Screw Terminal | ||
Technology Aluminium Electrolytic | ||
Dimensions 36 (Dia.) x 62mm | ||
Height 62mm | ||
Length 62mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 36mm | ||
Maximum Operating Temperature +85°C | ||
Lifetime 11000 h @ +85 °C/63V dc/Ir, 22000 h @ +85 °C/63V dc | ||
Series ALS30 | ||
Leakage Current 2.5704 mA | ||
Ripple Current 8.2A | ||
Equivalent Series Resistance 26mΩ | ||
Polarised Polar | ||
Tolerance ±20% | ||
ALS30/31 Series
KEMET ALS30/31 series screw terminal capacitors cover a wide range of case sizes and voltage ratings featuring high ripple currents and long-life performance. Typical applications include smoothing, energy storage or pulse operation in telecommunication demanding power supplies, process control, AC motor control, traction, welding and measuring.
Features and Benefits:
Compact size
Long life expectancy up to 20000 h
High ripple current
Excellent surge voltage capability
Aluminium insert terminals with M5 threads
Long life expectancy up to 20000 h
High ripple current
Excellent surge voltage capability
Aluminium insert terminals with M5 threads
Product Application Information
These capacitors are suitable for industrial and commercial applications demanding high reliability and long-life expectancy. For example, frequency converters, uninterruptible power supplies and switch mode power supplies.
Note
Screws and washers are not supplied.
Standards
AEC-Q200
Clamp-fixing +85°C
Ideal for computer power supply applications or other applications that require long operational life
