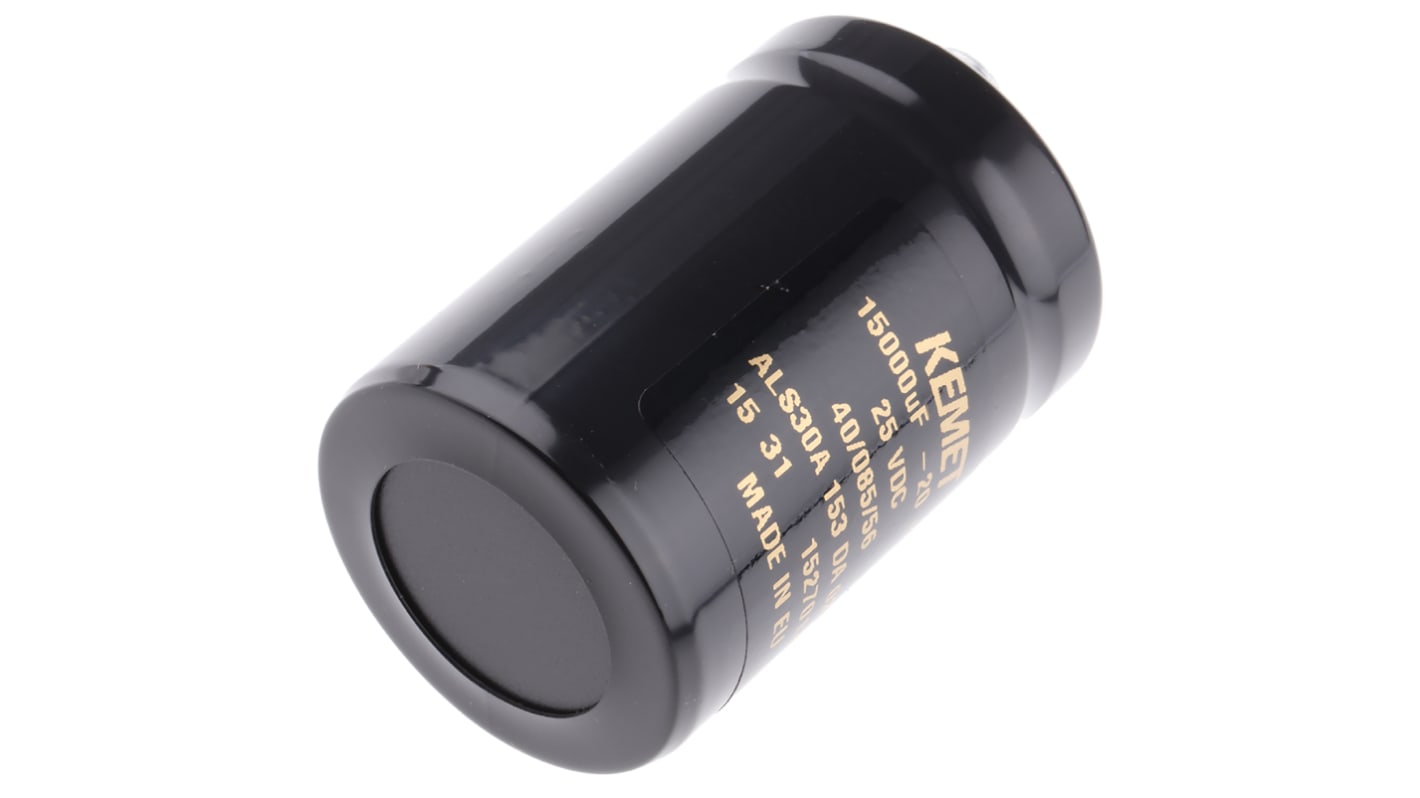

KEMET 15000 μF Capacitor 25V dc, Screw - ALS30A153DA025

RS Stock No.:: 381-8977
Mfr. Part No.:: ALS30A153DA025
Brand:: KEMET

KEMET 15000 μF Capacitor 25V dc, Screw - ALS30A153DA025

Bulk discount available

View bulk pricing options

Subtotal (1 unit)*

£12.57

(exc. VAT)

£15.08

(inc. VAT)

FREE delivery for orders over £60.00

Temporarily out of stock

1 unit(s) shipping from 19 August 2026
Plus 100 unit(s) shipping from 16 November 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£12.57
5 - 9	£12.23
10 - 24	£11.91
25 - 49	£11.60
50 +	£11.31

*price indicative

RS Stock No.:: 381-8977
Mfr. Part No.:: ALS30A153DA025
Brand:: KEMET

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	KEMET
	Capacitance	15000μF
	Product Type	Capacitor
	Voltage	25V dc
	Construction	Cylindrical Can
	Mount Type	Screw
	Packaging	Box
	Polarity	Polar
	Height	52mm
	Length	52mm
	Minimum Operating Temperature	-40°C
	Diameter	36mm
	Pin Count	2
	Capacitor Ripple Current	8.2A
	Termination Type	Screw
	Maximum Operating Temperature	85°C
	Standards/Approvals	RoHS, IEC 60384-4
	Automotive Standard	No
	Series	ALS30
	Equivalent Series Resistance ESR	24mΩ
	Tolerance	±20 %
	Leakage Current	2.3mA

	Select all
	Brand KEMET
	Capacitance 15000μF
	Product Type Capacitor
	Voltage 25V dc
	Construction Cylindrical Can
	Mount Type Screw
	Packaging Box
	Polarity Polar
	Height 52mm
	Length 52mm
	Minimum Operating Temperature -40°C
	Diameter 36mm
	Pin Count 2
	Capacitor Ripple Current 8.2A
	Termination Type Screw
	Maximum Operating Temperature 85°C
	Standards/Approvals RoHS, IEC 60384-4
	Automotive Standard No
	Series ALS30
	Equivalent Series Resistance ESR 24mΩ
	Tolerance ±20 %
	Leakage Current 2.3mA

COO (Country of Origin):: PT

ALS30/31 Series

KEMET ALS30/31 series screw terminal capacitors cover a wide range of case sizes and voltage ratings featuring high ripple currents and long-life performance. Typical applications include smoothing, energy storage or pulse operation in telecommunication demanding power supplies, process control, AC motor control, traction, welding and measuring.

Features and Benefits:

Compact size

Long life expectancy up to 20000 h

High ripple current

Excellent surge voltage capability

Aluminium insert terminals with M5 threads

Product Application Information

These capacitors are suitable for industrial and commercial applications demanding high reliability and long-life expectancy. For example, frequency converters, uninterruptible power supplies and switch mode power supplies.

Clamp-fixing +85°C

Ideal for computer power supply applications or other applications that require long operational life

Note

Screws and washers are not supplied.

Standards

AEC-Q200
