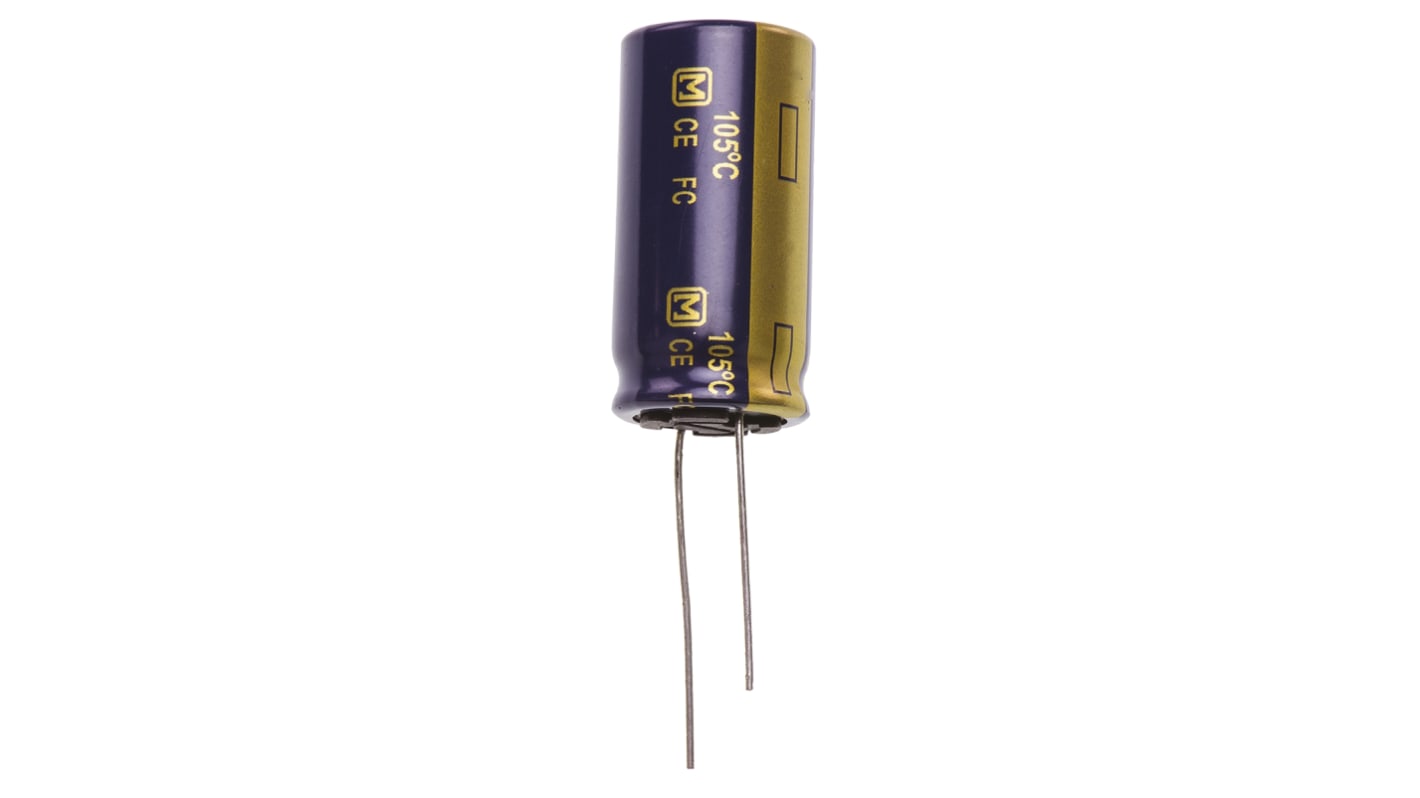

Panasonic 2200μF Aluminium Electrolytic Aluminium Electrolytic Capacitor 50V dc, Radial, Through Hole - EEUFC1H222
- RS Stock No.:
- 315-0928P
- Mfr. Part No.:
- EEUFC1H222
- Brand:
- Panasonic
Bulk discount available
Subtotal 25 units (supplied in a bag)*
£50.15
(exc. VAT)
£60.175
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 355 unit(s) shipping from 13 October 2025
- Plus 800 unit(s) shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 25 - 45 | £2.006 |
| 50 - 95 | £1.876 |
| 100 - 245 | £1.748 |
| 250 + | £1.59 |
*price indicative
- RS Stock No.:
- 315-0928P
- Mfr. Part No.:
- EEUFC1H222
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 2200µF | |
| Voltage | 50V dc | |
| Mounting Type | Radial, Through Hole | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 18 (Dia.) x 35.5mm | |
| Height | 35.5mm | |
| Length | 35.5mm | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 18mm | |
| Maximum Operating Temperature | +105°C | |
| Lead Pitch | 7.5mm | |
| Lifetime | 5000h | |
| Series | FC-A | |
| Ripple Current | 3.1A | |
| Polarised | Polar | |
| Tolerance | ±20% | |
| Equivalent Series Resistance | 23mΩ | |
| Leakage Current | 3 μA | |
| Dissipation Factor | 200% | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 2200µF | ||
Voltage 50V dc | ||
Mounting Type Radial, Through Hole | ||
Technology Aluminium Electrolytic | ||
Dimensions 18 (Dia.) x 35.5mm | ||
Height 35.5mm | ||
Length 35.5mm | ||
Minimum Operating Temperature -55°C | ||
Diameter 18mm | ||
Maximum Operating Temperature +105°C | ||
Lead Pitch 7.5mm | ||
Lifetime 5000h | ||
Series FC-A | ||
Ripple Current 3.1A | ||
Polarised Polar | ||
Tolerance ±20% | ||
Equivalent Series Resistance 23mΩ | ||
Leakage Current 3 μA | ||
Dissipation Factor 200% | ||
FC Series 1800μF - 15000μF
Panasonic FC Series Type A electrolytic capacitors offer a high endurance, low impedance solution. These aluminium capacitors feature endurance between 1000 and 5000 hours.
AEC-Q200 qualified
Radial lead type
Low ESR
Compact size
High reliability
Low impedance
High ripple current
Radial lead type
Low ESR
Compact size
High reliability
Low impedance
High ripple current
Applications
Panasonic FC Type A electrolytic capacitors are AEC-Q200 qualified and suitable for automotive applications. High reliability also makes these electrolytic capacitors ideal for application in industrial instruments.
