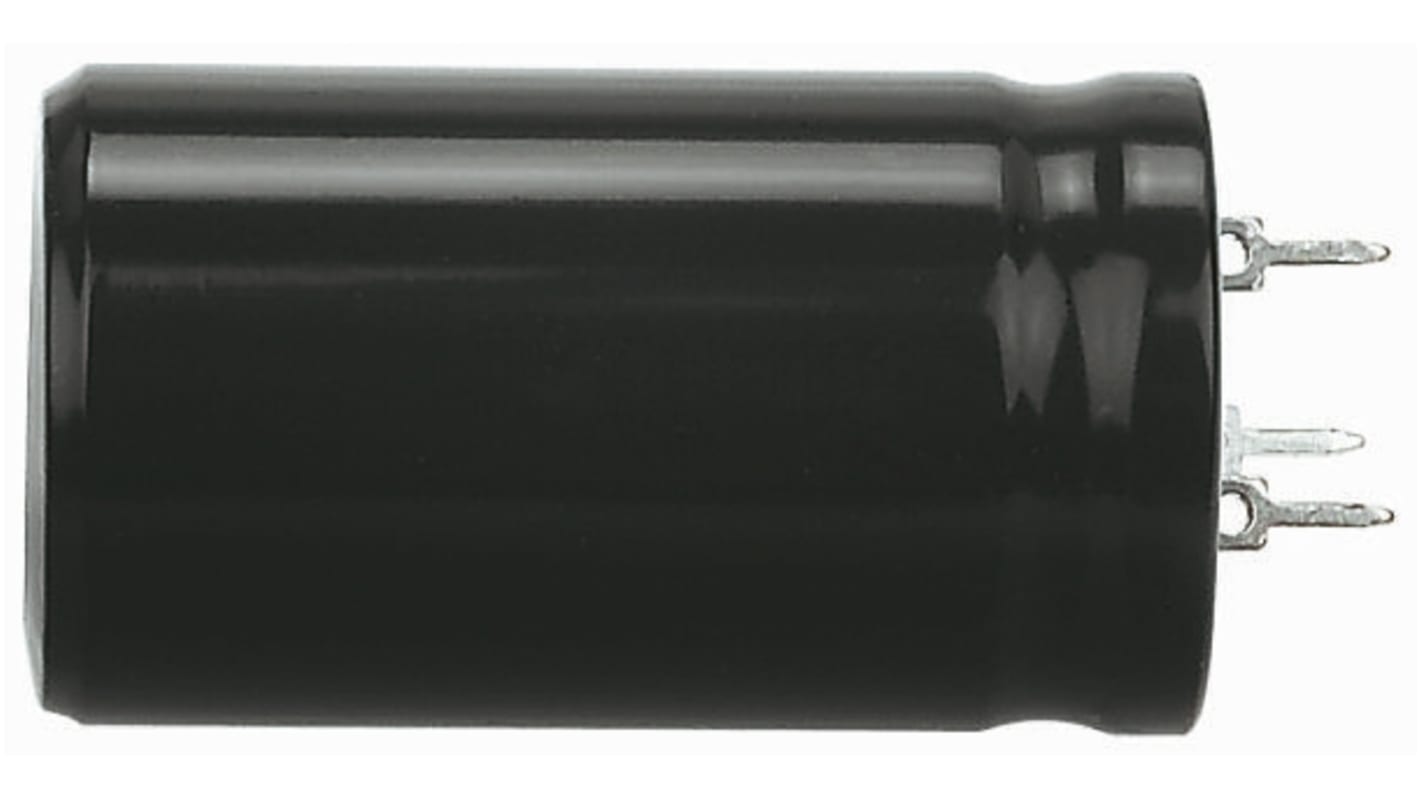

KEMET 47000μF Aluminium Electrolytic Capacitor 16V dc, Through Hole - ALP22A473DD016
- RS Stock No.:
- 227-1147
- Mfr. Part No.:
- ALP22A473DD016
- Brand:
- KEMET
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 227-1147
- Mfr. Part No.:
- ALP22A473DD016
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Capacitance | 47000µF | |
| Voltage | 16V dc | |
| Mounting Type | Through Hole | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 40 x 55mm | |
| Length | 55mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 40mm | |
| Maximum Operating Temperature | +85°C | |
| Lifetime | 26000 h @ +85 °C/16V dc/Ir | |
| Equivalent Series Resistance | 29 mΩ @ 100 kHz | |
| Polarised | Polar | |
| Series | ALP22 | |
| Ripple Current | 6.29 A @ 100Hz | |
| Leakage Current | 4.512 mA | |
| Tolerance | -10 → +30% | |
Select all | ||
|---|---|---|
Brand KEMET | ||
Capacitance 47000µF | ||
Voltage 16V dc | ||
Mounting Type Through Hole | ||
Technology Aluminium Electrolytic | ||
Dimensions 40 x 55mm | ||
Length 55mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 40mm | ||
Maximum Operating Temperature +85°C | ||
Lifetime 26000 h @ +85 °C/16V dc/Ir | ||
Equivalent Series Resistance 29 mΩ @ 100 kHz | ||
Polarised Polar | ||
Series ALP22 | ||
Ripple Current 6.29 A @ 100Hz | ||
Leakage Current 4.512 mA | ||
Tolerance -10 → +30% | ||
ALP22 Series
Long life low ESR aluminium electrolytic capacitors incorporating a safety vent and insulating sleeve.
Additional PCB pins are intended for mechanical connection only. It is recommended that they be soldered to the printed circuit board on isolated pads
Additional PCB pins are intended for mechanical connection only. It is recommended that they be soldered to the printed circuit board on isolated pads
