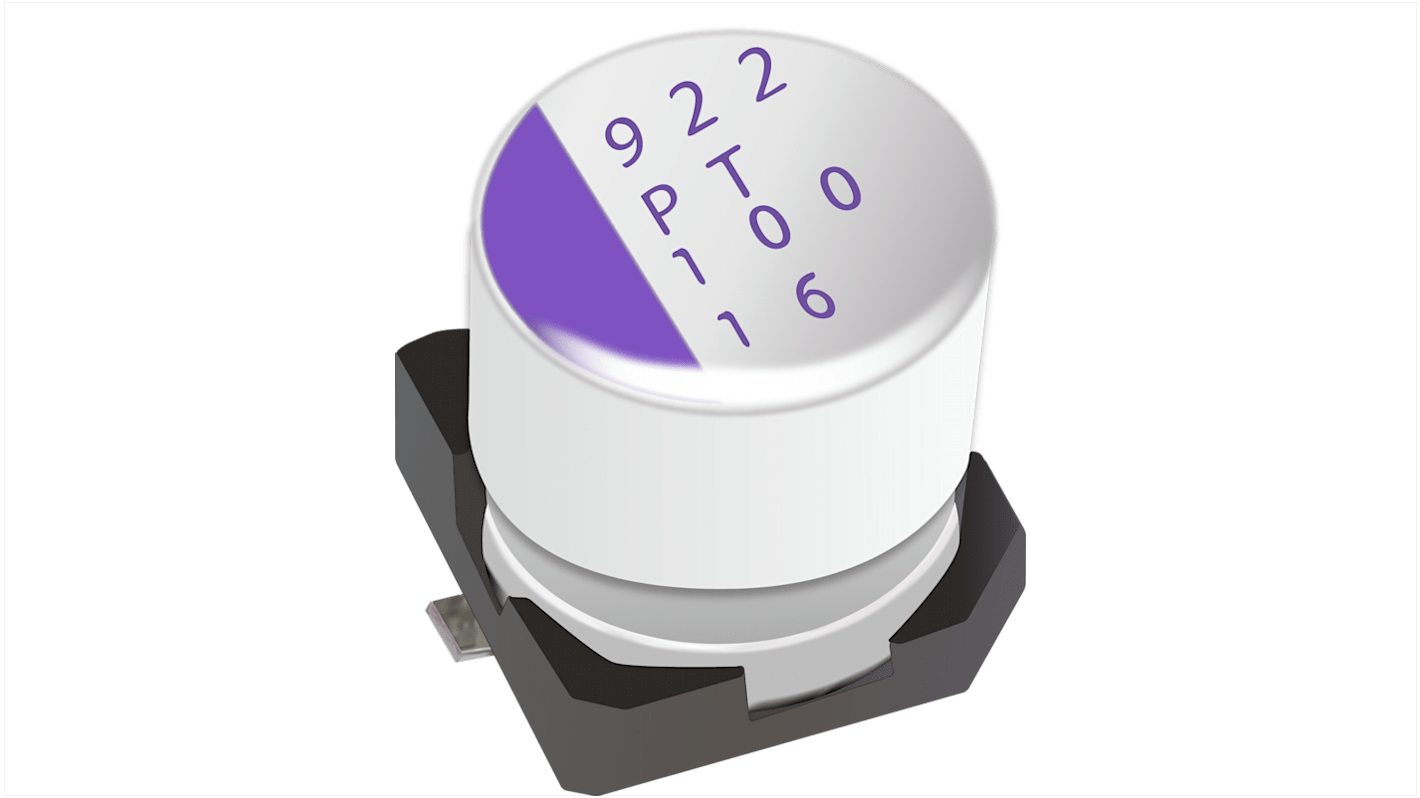

Panasonic 560μF Conductive Polymer Aluminium Solid Capacitor 4V dc, Surface Mount - 4SVPT560M
- RS Stock No.:
- 211-1996
- Mfr. Part No.:
- 4SVPT560M
- Brand:
- Panasonic
920 In stock - FREE next working day delivery available
Price Each (On a Tape of 2)
£2.11
(exc. VAT)
£2.53
(inc. VAT)
Units | Per unit | Per Tape* |
|---|---|---|
| 2 - 18 | £2.11 | £4.22 |
| 20 - 98 | £1.77 | £3.54 |
| 100 - 248 | £1.52 | £3.04 |
| 250 - 498 | £1.335 | £2.67 |
| 500 + | £1.185 | £2.37 |
*price indicative
- RS Stock No.:
- 211-1996
- Mfr. Part No.:
- 4SVPT560M
- Brand:
- Panasonic
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
The Panasonic Conductive Polymer Aluminium Solid Capacitors works with Rated voltage range 2.5 V to 50 V and low erythrocyte sedimentation rate of 10 mΩ max. It has a large capacitance of 2700μF maximum.
–55°C to +105°C operating temperature
±20% capacitance tolerance
±20% capacitance tolerance
Specifications
Attribute | Value |
|---|---|
| Capacitance | 560µF |
| Voltage | 4V dc |
| Mounting Type | Surface Mount |
| Technology | Conductive Polymer Aluminium |
| Dimensions | 8x6.9mm |
| Length | 6.9mm |
| Diameter | 8mm |
| Maximum Operating Temperature | +105°C |
| Series | SVPT |
| Tolerance | ±20% |
| Polarised | Polar |
