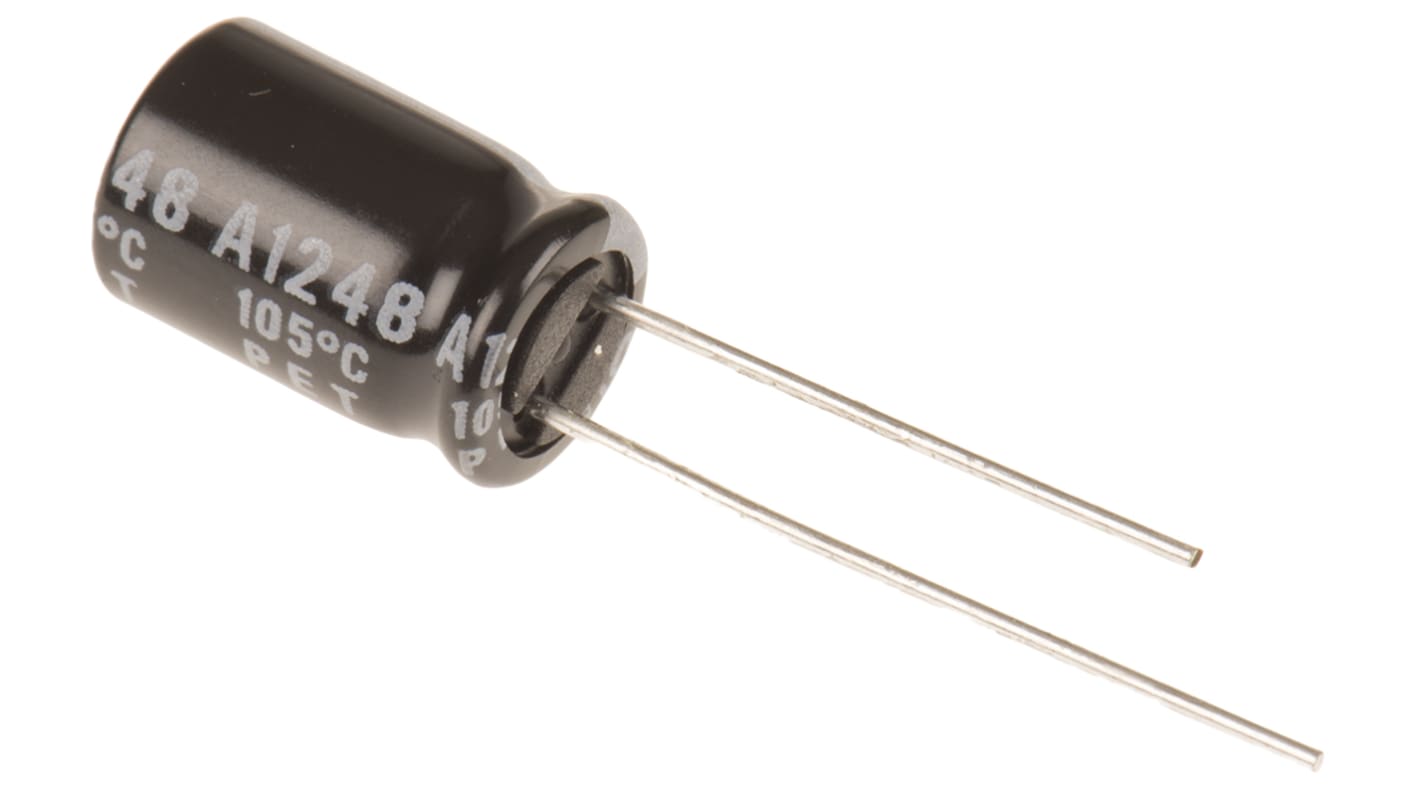

Rubycon 220μF Aluminium Electrolytic Capacitor 25V dc, Radial, Through Hole - 25YXF220M8X11.5
- RS Stock No.:
- 191-8277
- Mfr. Part No.:
- 25YXF220M8X11.5
- Brand:
- Rubycon
Save 50% when you buy 1000 units
Subtotal (1 pack of 5 units)*
£1.34
(exc. VAT)
£1.61
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- 360 left, ready to ship
- Plus 160 left, ready to ship from another location
- Final 30 unit(s) shipping from 08 October 2025
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £0.268 | £1.34 |
| 50 - 95 | £0.228 | £1.14 |
| 100 - 495 | £0.186 | £0.93 |
| 500 - 995 | £0.16 | £0.80 |
| 1000 + | £0.134 | £0.67 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Box of 800)
£0.161
(exc. VAT)
£0.193
(inc. VAT)
- RS Stock No.:
- 191-8277
- Mfr. Part No.:
- 25YXF220M8X11.5
- Brand:
- Rubycon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rubycon | |
| Capacitance | 220µF | |
| Voltage | 25V dc | |
| Mounting Type | Radial, Through Hole | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 8 (Dia.) x 11.5mm | |
| Height | 11.5mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 8mm | |
| Maximum Operating Temperature | +105°C | |
| Lifetime | 7000h | |
| Lead Pitch | 3.5mm | |
| Leakage Current | 3 μA | |
| Ripple Current | 400mA | |
| Series | YXF | |
| Tolerance | ±20% | |
Select all | ||
|---|---|---|
Brand Rubycon | ||
Capacitance 220µF | ||
Voltage 25V dc | ||
Mounting Type Radial, Through Hole | ||
Technology Aluminium Electrolytic | ||
Dimensions 8 (Dia.) x 11.5mm | ||
Height 11.5mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 8mm | ||
Maximum Operating Temperature +105°C | ||
Lifetime 7000h | ||
Lead Pitch 3.5mm | ||
Leakage Current 3 μA | ||
Ripple Current 400mA | ||
Series YXF | ||
Tolerance ±20% | ||
YXF Series
Miniature high temperature radial wire ended electrolytic capacitors for use in applications where board space is at a premium.
