Nichicon 220μF Aluminium Electrolytic Capacitor 16V dc, Radial, Through Hole - UPM1C221MPD

View all Aluminium Capacitors
Bulk discount available

Subtotal (1 pack of 25 units)*

£5.75

(exc. VAT)

£7.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 650 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
25 - 75£0.23£5.75
100 +£0.169£4.23

*price indicative

Packaging Options:
RS Stock No.:
187-2321
Mfr. Part No.:
UPM1C221MPD
Brand:
Nichicon
Find similar products by selecting one or more attributes.
Select all

Brand

Nichicon

Capacitance

220µF

Voltage

16V dc

Mounting Type

Radial, Through Hole

Technology

Aluminium Electrolytic

Dimensions

6.6 (Dia.) x 6.6 x 5.8mm

Height

11.5mm

Minimum Operating Temperature

-55°C

Diameter

6.6mm

Maximum Operating Temperature

+105°C

Lead Pitch

3.5mm

Lifetime

3000h

Ripple Current

460mA

Tolerance

±20%

Polarised

Polar

Leakage Current

4 μA

Series

PM

Dissipation Factor

0.16%

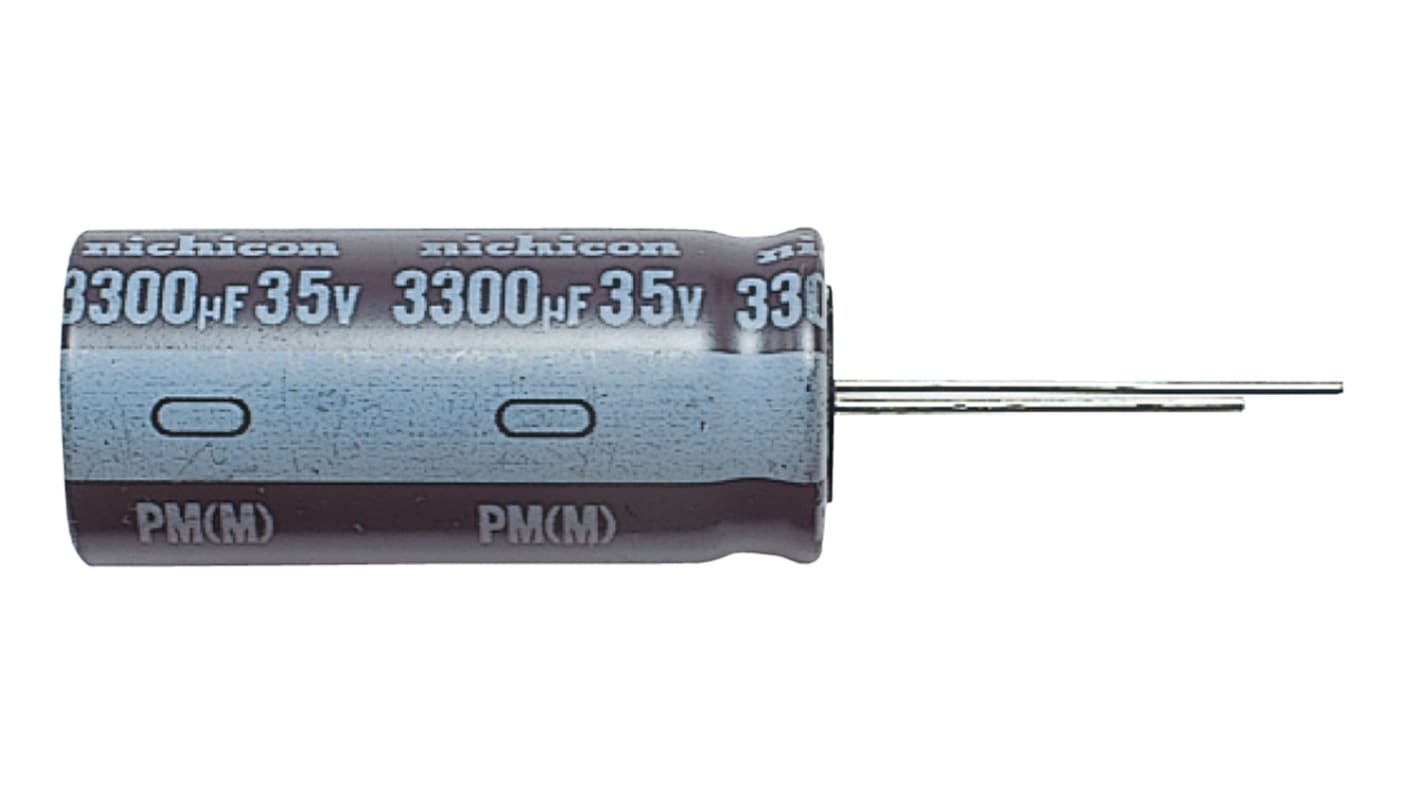

Nichicon PM Series Electrolytic Capacitors


Nichicon PM Series Aluminium Electrolytic Capacitors are high reliability, low impedance products that have a 5000-hour load life and are compliant to the RoHS directive (2011/65/EU). The PM series features a wide temperature range, a rated voltage range of 6.3 V to 450 V, and high ripple current.

Features & Benefits:


High reliability
High ripple current
Long life up to 5000 hours
Lead free reflow soldering
Extremely low impedance

High reliability withstanding 5000 hour load life at +105°C (3000/2000 hours for smaller case sizes as specified below)
Capacitance ranges available based on the numerical values in E12 series under JIS
