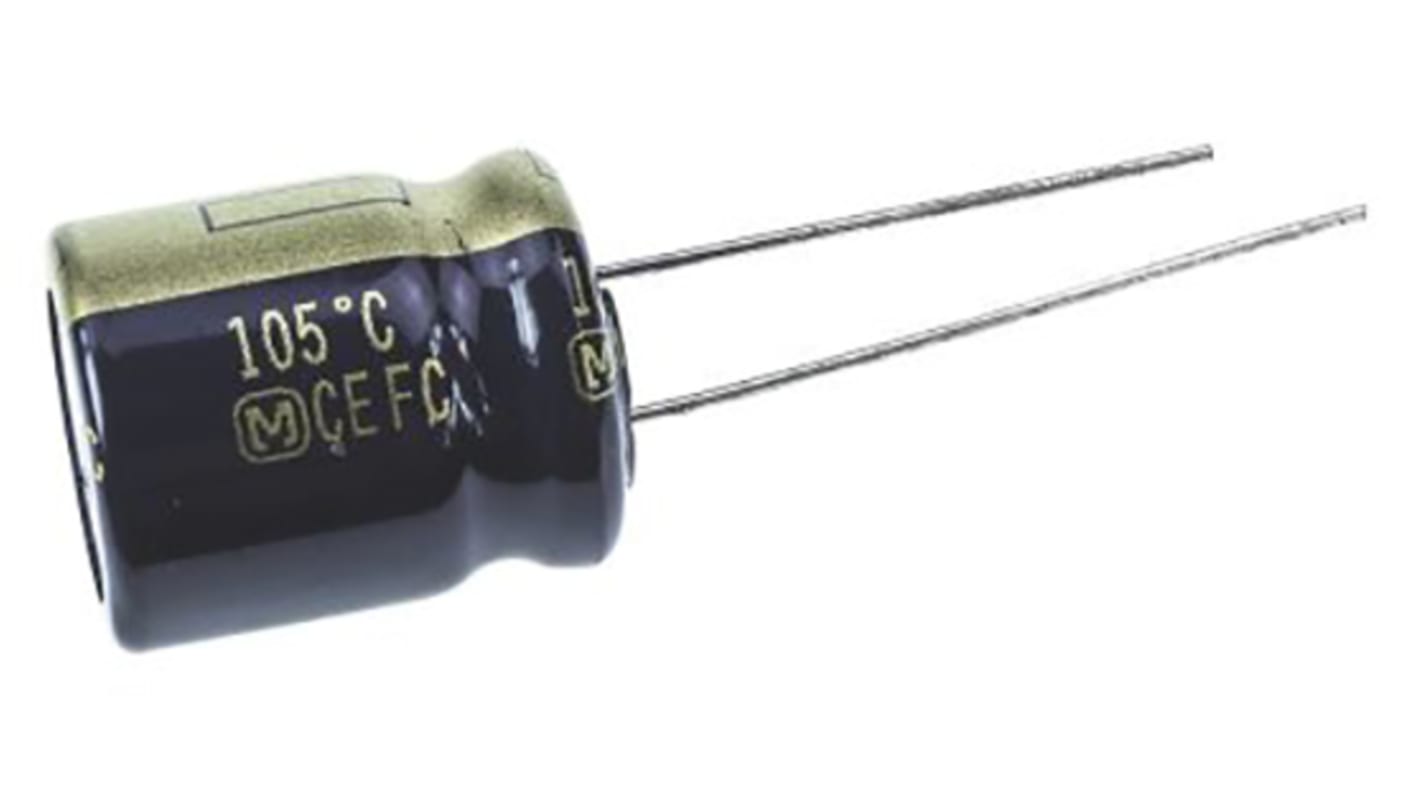

Panasonic 100μF Aluminium Electrolytic Capacitor 6.3V dc, Radial, Through Hole - EEUFC0J101
- RS Stock No.:
- 176-6388
- Mfr. Part No.:
- EEUFC0J101
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 pack of 25 units)*
£3.00
(exc. VAT)
£3.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 200 unit(s) shipping from 24 October 2025
- Plus 999,999,775 unit(s) shipping from 23 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 25 | £0.12 | £3.00 |
| 50 - 75 | £0.114 | £2.85 |
| 100 + | £0.064 | £1.60 |
*price indicative
- RS Stock No.:
- 176-6388
- Mfr. Part No.:
- EEUFC0J101
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 100µF | |
| Voltage | 6.3V dc | |
| Mounting Type | Radial, Through Hole | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 5 (Dia.) x 11mm | |
| Height | 11mm | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 5mm | |
| Maximum Operating Temperature | +105°C | |
| Lead Pitch | 2mm | |
| Lifetime | 1000h | |
| Leakage Current | 3 μA | |
| Tolerance | ±20% | |
| Ripple Current | 175mArms | |
| Automotive Standard | AEC-Q200 | |
| Series | FC | |
| Polarised | Polar | |
| Dissipation Factor | 0.22% | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 100µF | ||
Voltage 6.3V dc | ||
Mounting Type Radial, Through Hole | ||
Technology Aluminium Electrolytic | ||
Dimensions 5 (Dia.) x 11mm | ||
Height 11mm | ||
Minimum Operating Temperature -55°C | ||
Diameter 5mm | ||
Maximum Operating Temperature +105°C | ||
Lead Pitch 2mm | ||
Lifetime 1000h | ||
Leakage Current 3 μA | ||
Tolerance ±20% | ||
Ripple Current 175mArms | ||
Automotive Standard AEC-Q200 | ||
Series FC | ||
Polarised Polar | ||
Dissipation Factor 0.22% | ||
The Panasonic FC-A series aluminium electrolytic capacitor has radial lead type of body and works with rated voltage range 6.3 V to 100 V. It use polar type of polarity and it has a large capacitance of 15000μF maximum.
Operating temperature -55°C to +105°C
Capacitance tolerance ±20%
Low impedance
Capacitance tolerance ±20%
Low impedance
