Panasonic 100μF Electrolytic Capacitor 50V dc, Surface Mount - EEE1HA101UP

RS Stock No.:: 176-3746
Mfr. Part No.:: EEE1HA101UP
Brand:: Panasonic

Panasonic 100μF Electrolytic Capacitor 50V dc, Surface Mount - EEE1HA101UP

View this category

Discontinued product

Alternative

This product is not currently available. Here is our alternative recommendation.

Panasonic 100μF Aluminium Electrolytic Capacitor 50V dc, Surface Mount - EEEFK1H101P

RS Stock No.: 537-0540

Price Each (In a Pack of 5)

£0.608

(exc. VAT)

£0.73

(inc. VAT)

RS Stock No.:: 176-3746
Mfr. Part No.:: EEE1HA101UP
Brand:: Panasonic

Technical Reference

Datasheet

Legislation and Compliance

RoHS Status: Not Applicable

Product Details

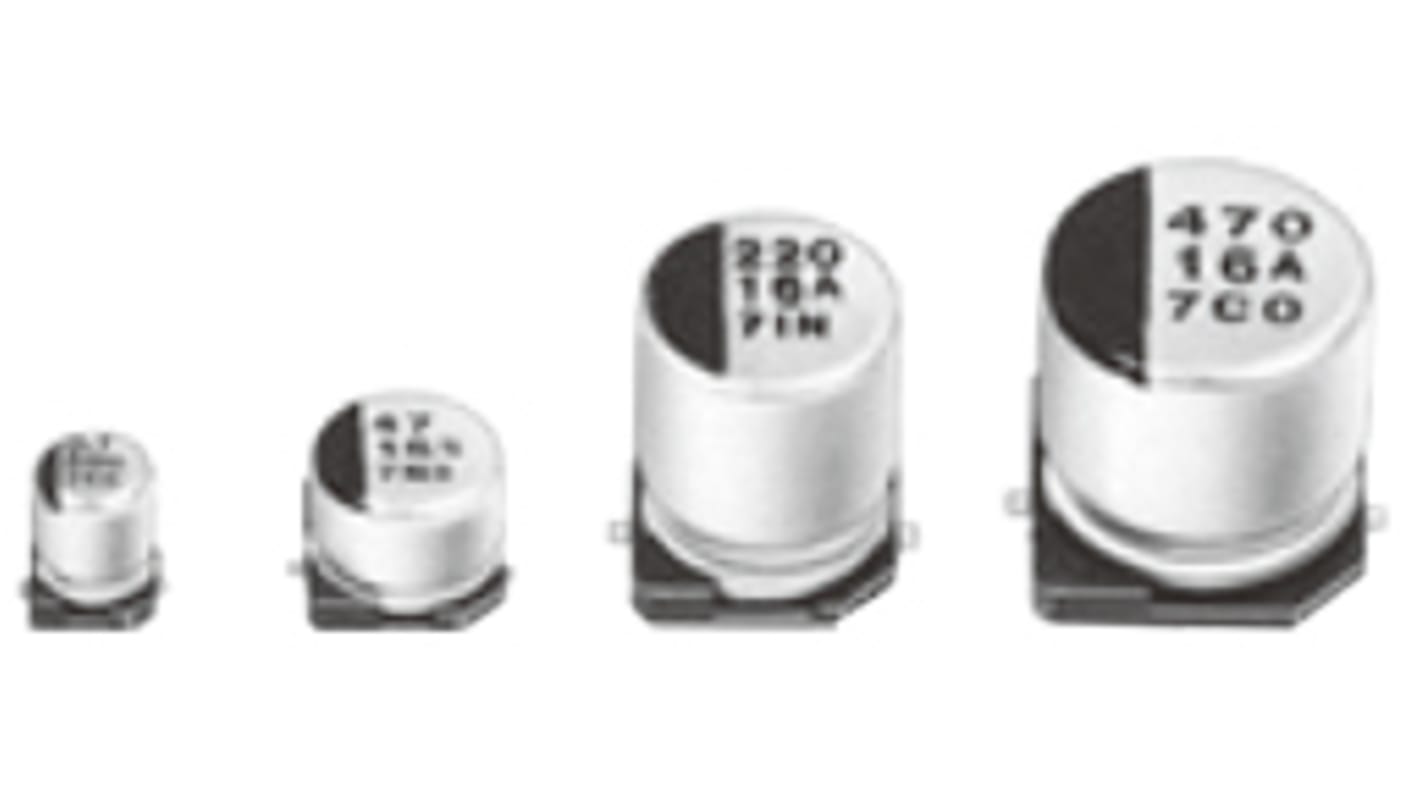

The Panasonic S series aluminium electrolytic capacitor has surface mount type of body and works with rated voltage range 4.0 V to 100 V. It use polar type of polarity and it has a large capacitance of 1500μF maximum.

Operating temperature -40°C to +85°C
Capacitance tolerance ±20%

Specifications

Attribute	Value
Capacitance	100µF
Voltage	50V dc
Mounting Type	Surface Mount
Technology	Electrolytic
Dimensions	8 (Dia.) x 10.2mm
Height	10.2mm
Minimum Operating Temperature	-40°C
Diameter	8mm
Maximum Operating Temperature	+85°C
Lead Pitch	3.1mm
Lifetime	1000h
Leakage Current	6 μA
Polarised	Polar
Series	S
Tolerance	±20%
Ripple Current	200mArms
Automotive Standard	AEC-Q200
Dissipation Factor	0.12%
