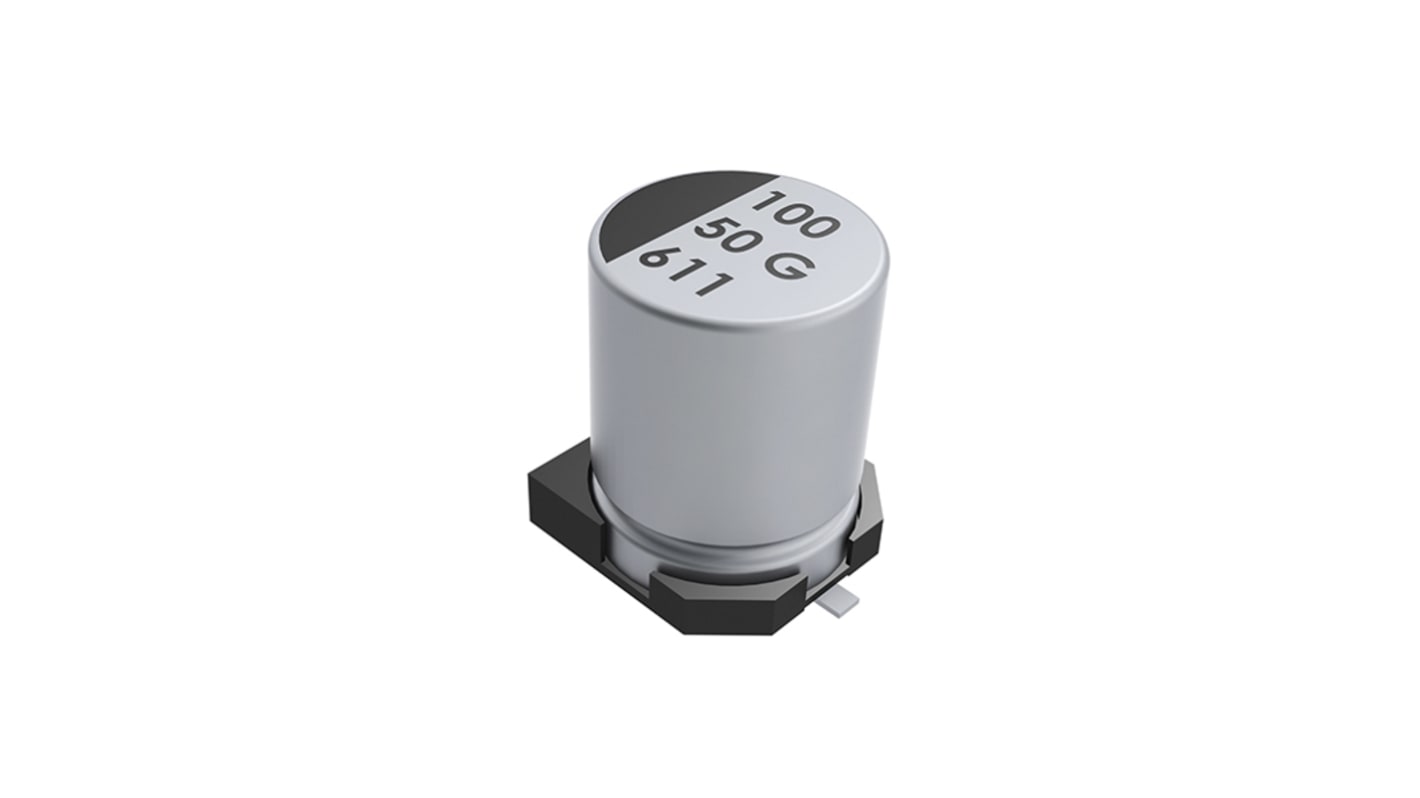

KEMET 10μF Aluminium Electrolytic Capacitor 50V dc, Surface Mount - EDK106M050A9GAA
- RS Stock No.:
- 174-4554
- Mfr. Part No.:
- EDK106M050A9GAA
- Brand:
- KEMET
Bulk discount available
Subtotal (1 pack of 50 units)*
£6.90
(exc. VAT)
£8.30
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6,350 unit(s) ready to ship
- Plus 999,993,600 unit(s) shipping from 11 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
50 - 450 | £0.138 | £6.90 |
500 - 950 | £0.128 | £6.40 |
1000 - 1950 | £0.117 | £5.85 |
2000 - 3950 | £0.108 | £5.40 |
4000 + | £0.095 | £4.75 |
*price indicative
- RS Stock No.:
- 174-4554
- Mfr. Part No.:
- EDK106M050A9GAA
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | KEMET | |
Capacitance | 10µF | |
Voltage | 50V dc | |
Mounting Type | Surface Mount | |
Technology | Aluminium Electrolytic | |
Dimensions | 6.6 x 6.6 x 5.4mm | |
Height | 5.4mm | |
Length | 6.6mm | |
Depth | 6.6mm | |
Minimum Operating Temperature | -40°C | |
Diameter | 6.3mm | |
Maximum Operating Temperature | +85°C | |
Lifetime | 2000h | |
Lead Pitch | 1.8mm | |
Tolerance | ±20% | |
Polarised | Polar | |
Leakage Current | 5 μA | |
Ripple Current | 35mA | |
Series | EDK | |
Dissipation Factor | 12% | |
Select all | ||
---|---|---|
Brand KEMET | ||
Capacitance 10µF | ||
Voltage 50V dc | ||
Mounting Type Surface Mount | ||
Technology Aluminium Electrolytic | ||
Dimensions 6.6 x 6.6 x 5.4mm | ||
Height 5.4mm | ||
Length 6.6mm | ||
Depth 6.6mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 6.3mm | ||
Maximum Operating Temperature +85°C | ||
Lifetime 2000h | ||
Lead Pitch 1.8mm | ||
Tolerance ±20% | ||
Polarised Polar | ||
Leakage Current 5 μA | ||
Ripple Current 35mA | ||
Series EDK | ||
Dissipation Factor 12% | ||
- COO (Country of Origin):
- CN
KEMETs EDK series of aluminium electrolytic surface mount capacitors are designed for high density printed circuit boards.
Applications
Typical applications include coupling, decoupling, bypass, and filtering.
Applications
Typical applications include coupling, decoupling, bypass, and filtering.
Surface mount lead terminals
Low profile vertical chip
General purpose +85°C/2,000 hours
Low profile vertical chip
General purpose +85°C/2,000 hours
