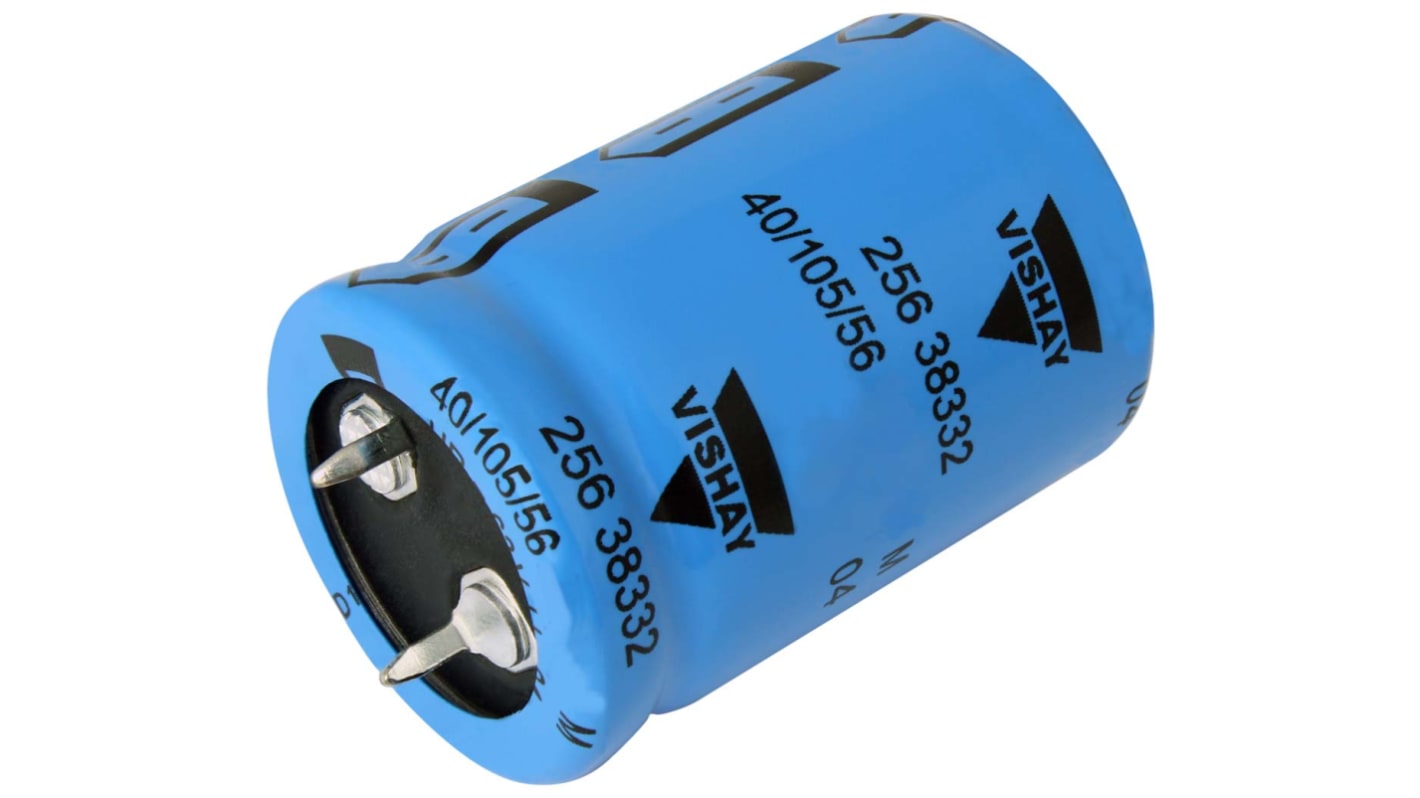

Vishay 1500μF Aluminium Electrolytic Capacitor 80V dc, Snap-In - MAL225622152E3
- RS Stock No.:
- 173-3851
- Mfr. Part No.:
- MAL225622152E3
- Brand:
- Vishay
Subtotal (1 box of 84 units)*
£109.284
(exc. VAT)
£131.124
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 252 unit(s), ready to ship
Units | Per unit | Per Box* |
|---|---|---|
| 84 + | £1.301 | £109.28 |
*price indicative
- RS Stock No.:
- 173-3851
- Mfr. Part No.:
- MAL225622152E3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Capacitance | 1500µF | |
| Voltage | 80V dc | |
| Mounting Type | Snap-In | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 23 (Dia.) x 37mm | |
| Height | 37mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 23mm | |
| Maximum Operating Temperature | +105°C | |
| Lifetime | 2000h | |
| Lead Pitch | 10mm | |
| Leakage Current | 1.04 mA | |
| Series | 256 | |
| Ripple Current | 1.48A | |
| Equivalent Series Resistance | 221mΩ | |
| Tolerance | ±20% | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Capacitance 1500µF | ||
Voltage 80V dc | ||
Mounting Type Snap-In | ||
Technology Aluminium Electrolytic | ||
Dimensions 23 (Dia.) x 37mm | ||
Height 37mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 23mm | ||
Maximum Operating Temperature +105°C | ||
Lifetime 2000h | ||
Lead Pitch 10mm | ||
Leakage Current 1.04 mA | ||
Series 256 | ||
Ripple Current 1.48A | ||
Equivalent Series Resistance 221mΩ | ||
Tolerance ±20% | ||
- COO (Country of Origin):
- CN
256 Series
MAL256 Series Polarized Aluminium Electrolytic Capacitors, non-solid electrolyte
Pressure relief on the top of the Aluminium case
PET insulation sleeve
Pressure relief on the top of the Aluminium case
PET insulation sleeve
Useful life of 2000h at +105°C and greater than 5000h at +85°C
Voltage range from 16V to 100V
Applications in General purpose, industrial; Standard and Switched Mode Power Supplies; Audio systems; DC/DC converters; Telecom; Smoothing and Filtering
Voltage range from 16V to 100V
Applications in General purpose, industrial; Standard and Switched Mode Power Supplies; Audio systems; DC/DC converters; Telecom; Smoothing and Filtering
